ews barrera de una vía

Sensorbild - Matrix

Resumen

Ultrasonic through-beam barrier in different housings

descargar familia de sensores en pdf
online catalogue as pdf

Características principales

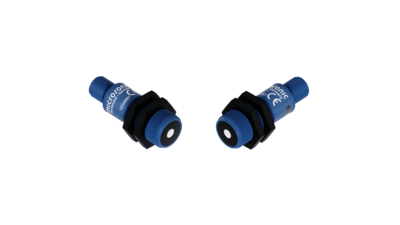

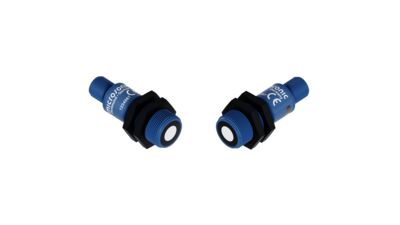

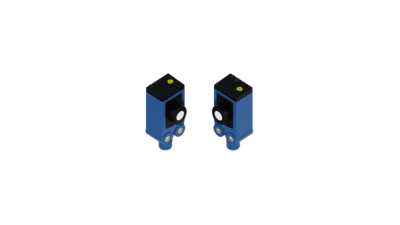

  • Emitter and receiver in miniature cubic housing or in M18 housing
  • Installation-compatible with many through-beam barriers una alternativa genuina para aplicaciones críticas
  • Frecuencia de conmutación de hasta 500 Hz para escaneados veloces

Aspectos básicos

  • 1 salida de conmutación en versión pnp
  • Teach-in de microsonic por medio de un botón de presión
  • Distancia de trabajo emisor receptor seleccionable entre 10 y 2,500 mm
  • Tensión de trabajo 20–30 V

BESCHREIBUNG

Ultrasonic through-beam barrier ews

for contact free detection of objects specially in the most diverse applications e.g. with bottles or plastic foils. The through-beam sensor ews is available as a cuboid miniature housing and a cylindrical M18 housing. The ews family covers a working range of 10 mm to 2,500 mm.

A through-beam barrier

consists of two constructively-identical units which are operated as a transmitter and a receiver. The two units recognize whether they are intended to work as a transmitter or a receiver via the control input. If pin 2 +UB is activated, this unit functions as a transmitter.

The functional principle ultrasonic through-beam barrier

The functional principle

one through-beam sensor ews, set as emitter, sends cyclic sound impulses, received by another one, set as receiver. If an object interrupts the pulses between the transmitter and the receiver, the switching output of the receiver is set.

microsonic Teach-in

The Teach-in button on the top of the cubic through-beam barrier ews-15/CD allows for a convenient configuration of the response time and the output function of the switching output of the receiver. With the Teach-in procedure the response time and an off-delay of 6,9 ms can be set. At the through-beam barrier in the M18 housing, response time and output function can be set via the Teach-in procedure at Pin 2.

Two LEDs

show the operating state and the state of the switching output of the receiver.
