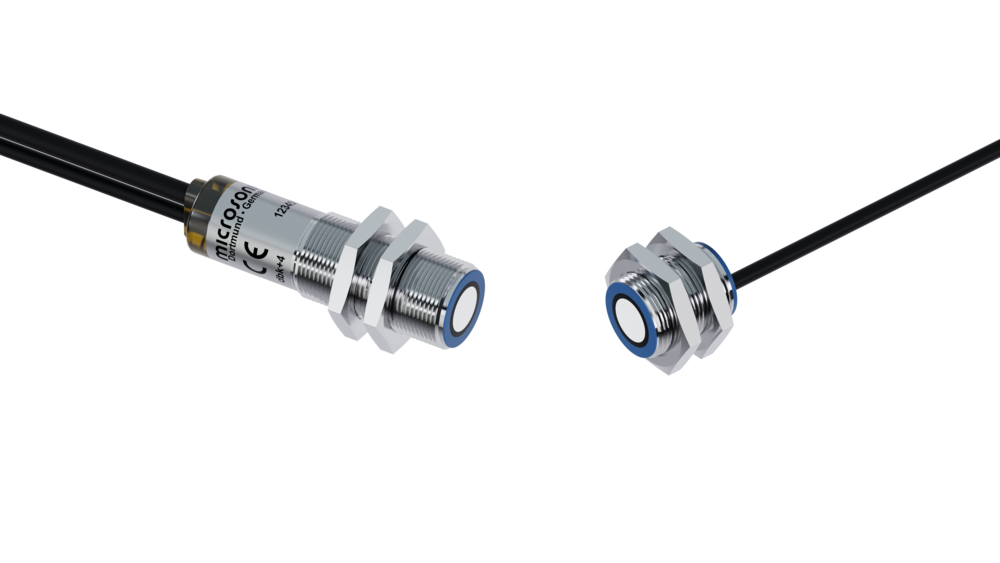

esp-4/3BEE/M18 E+S
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
2 x npn
cylindrical M18
label/splice detection
sheeting with weights of < 20 g/m2 up to >> 600 g/m2, metal-laminated sheets
Technical Data - Mechanics
20 - 40 mm; optimal: 40 mm ± 3 mm
recommended mounting angle: ± 15 ° (± 10 ° to ± 45 °) from what is normal for the material
Ultrasonic-Specific
pulse operation with amplitude evaluation
400 kHz
7 mm in front of transmitter and receiver
Electrical Data
20 - 30 V d.c., reverse polarity protection
± 10 %
≤ 50 mA
2 m PUR cable, 7 x 0.14 mm2
at the receiver: 1.2 m PUR cable, at the transmitter: 1 m PUR cable with M8 initiator plug
outputs
switching output
label/splice detected
npn: Imax = 200 mA (-UB+2V)
NOC/NCC adjustable, short-circuit-proof
label/splice detected
npn: Imax = 200 mA (-UB+2V)
NOC/NCC adjustable, short-circuit-proof
switching output
web break
npn: Imax = 200 mA (-UB+2V)
NOC/NCC adjustable, short-circuit-proof
web break
npn: Imax = 200 mA (-UB+2V)
NOC/NCC adjustable, short-circuit-proof
< 300 µs
Inputs
control input
control input
control input
response times
until next edge in trigger mode, 2.5 ms in free-run mode
control
< -UB+18 V: logic 1; > -UB+13 V or control input open: logic 0
housing
brass sleeve, nickel-plated, plastic parts, PBT, PA
polyurethane foam, epoxy resin with glass contents
IP 65
+5°C to +60°C
-40°C to +85°C
130 g
15 Nm
single transmitter/receiver
Technical Features/Characteristics
control input
Teach-in via control inputs
LCA-2 with LinkControl
LCA-2 with LinkControl
1 x Duo-LED; green: working / red: label/splice detected / flashing red: web break
