sks-15/D

Bild vom sks Ultraschallsensor
watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

CAD Files

SAT STEP IGS IPT PDF

Approvals and certificates

EU Declaration of Conformity UKCA Declaration of Conformity
  • 1 x pnp 1 x pnp
  • 250 mm 250 mm
20 - 250 mm
cuboidal
proximity switch/reflective mode
reflective barrier
window mode
kleinste quaderförmige Bauform
schlankes Schallfeld
UL Listed

Ultrasonic-Specific

echo propagation time measurement
380 kHz
20 mm
150 mm
250 mm
0.10 mm
± 0.15 %
temperature drift 0.17 %/K

Electrical Data

20 - 30 V d.c., reverse polarity protection
± 10 %
≤ 25 mA

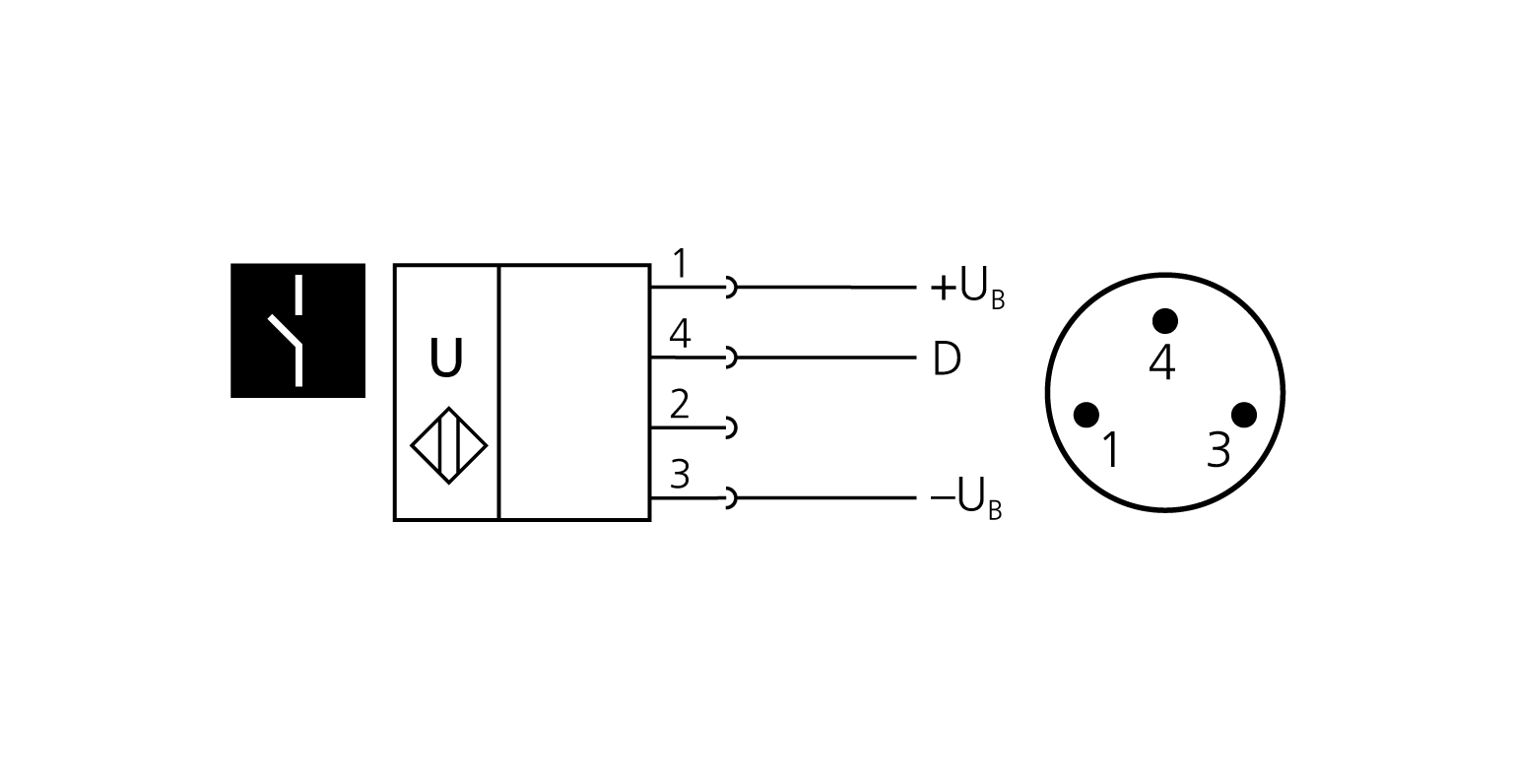

3-pin M8 initiator plug

Outputs

switching output
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
2.0 mm
25 Hz
32 ms
< 300 ms

Housing

ABS
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
8 g

Technical Features/Characteristics

no
1 push-button
Teach-in via push-button
no
no
1 x LED green: working, 1 x LED yellow: switch status
kleinste quaderförmige Bauform
schlankes Schallfeld
UL Listed

Accessories

KST3A-2/M8
KST3A-5/M8
KST3G-2/M8
KST3G-5/M8
SoundPipe sks1

Matching sensors

prev
next
KST3A-2/M8

KST3A-2/M8

cable, 3 contacts, female angled connector M8, cable length 2 m
KST3A-5/M8

KST3A-5/M8

cable, 3 contacts, female angled connector M8, cable length 5 m
KST3G-2/M8

KST3G-2/M8

cable, 3 contacts, female cable connector M8, cable length 2 m
KST3G-5/M8

KST3G-5/M8

cable, 3 contacts, female cable connector M8, cable length 5 m
SoundPipe sks1

SoundPipe sks1

SoundPipe for sks ultrasonic sensors. SoundPipe sks1 intensively bundles the sound field and allows measurements in drill holes and openings with small diameters. Push the SoundPipe down on the transducer until it is flush with the sensor housing. Avoid axial tensile force on the SoundPipe, otherwise the SoundPipe may dismantle from the sks sensor.
