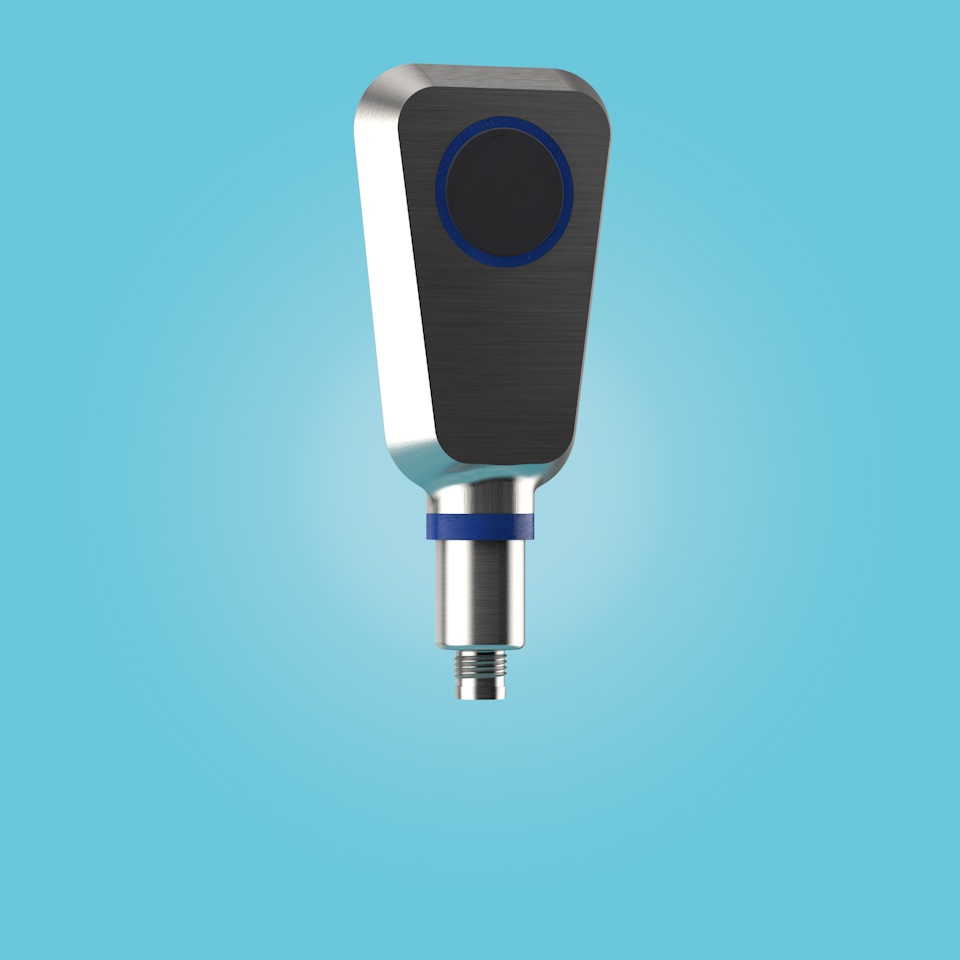

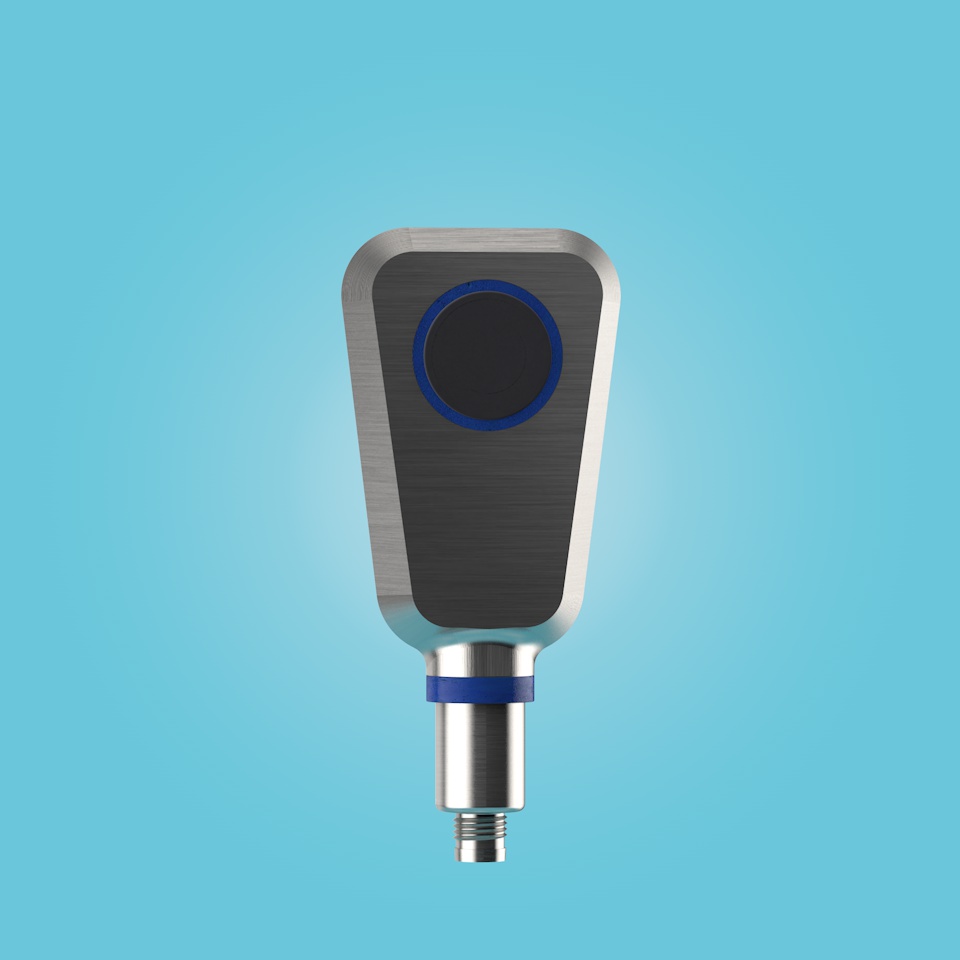

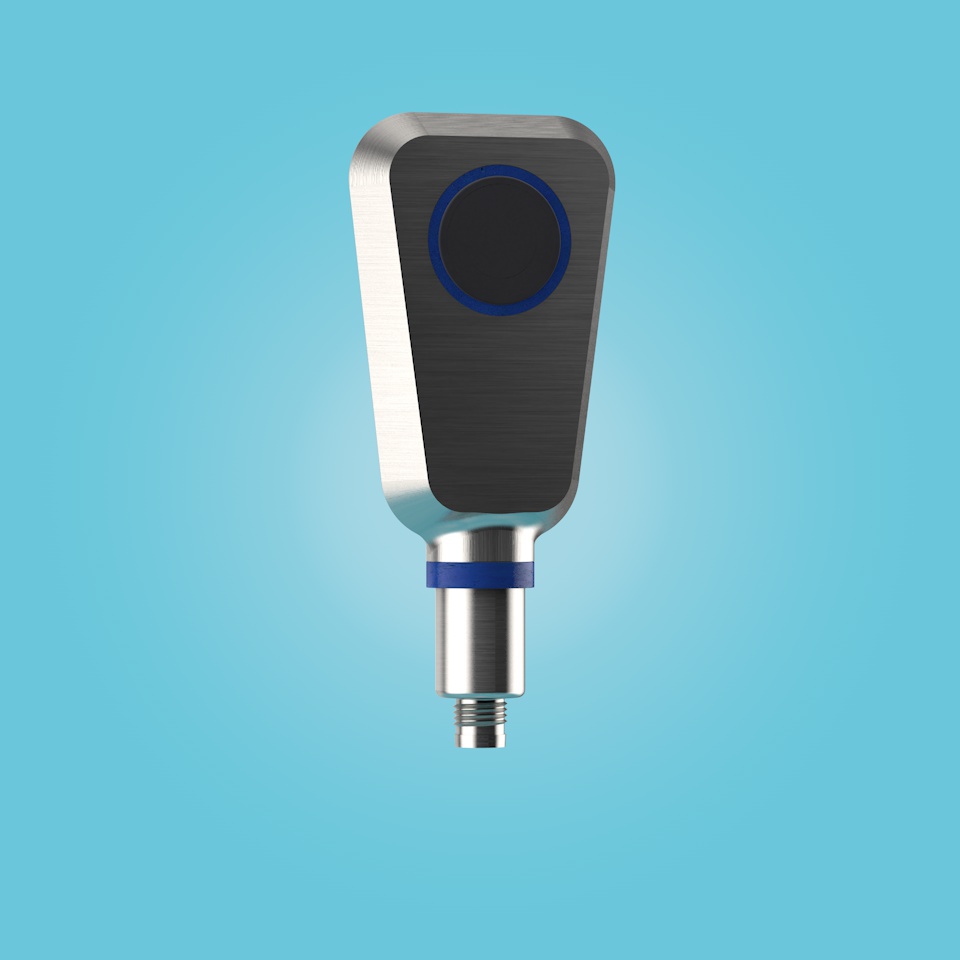

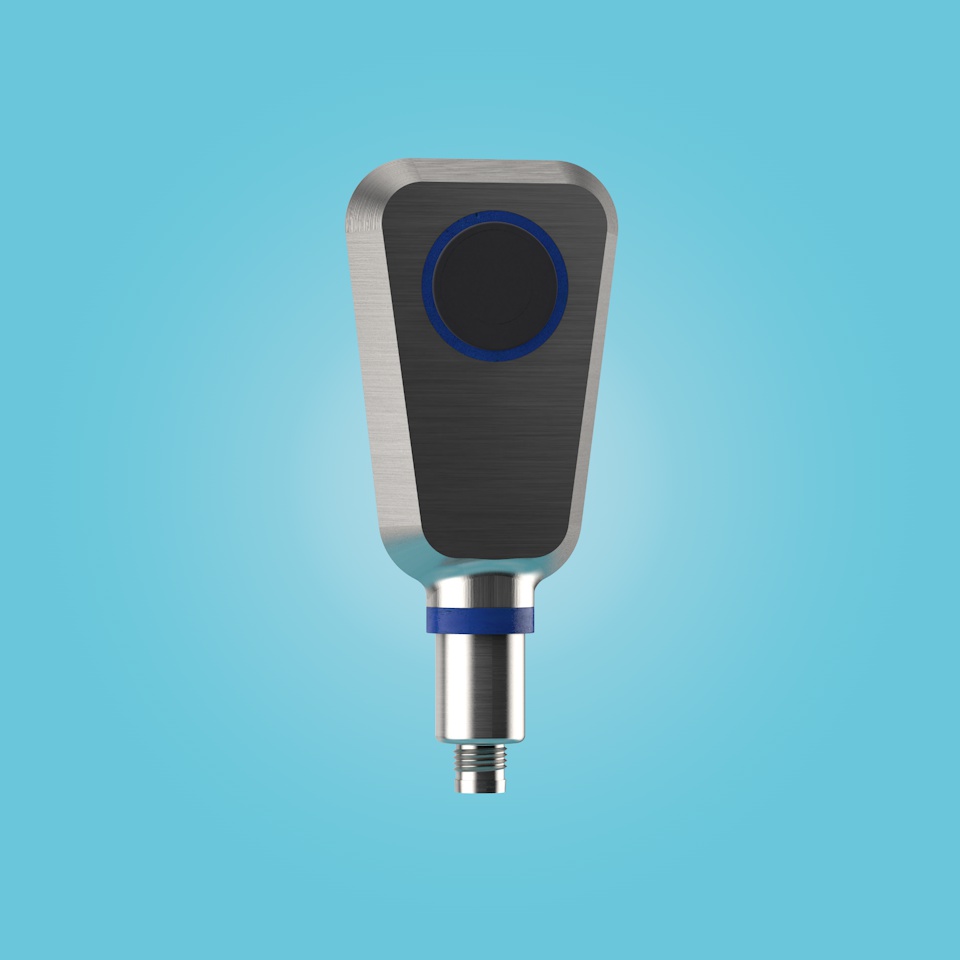

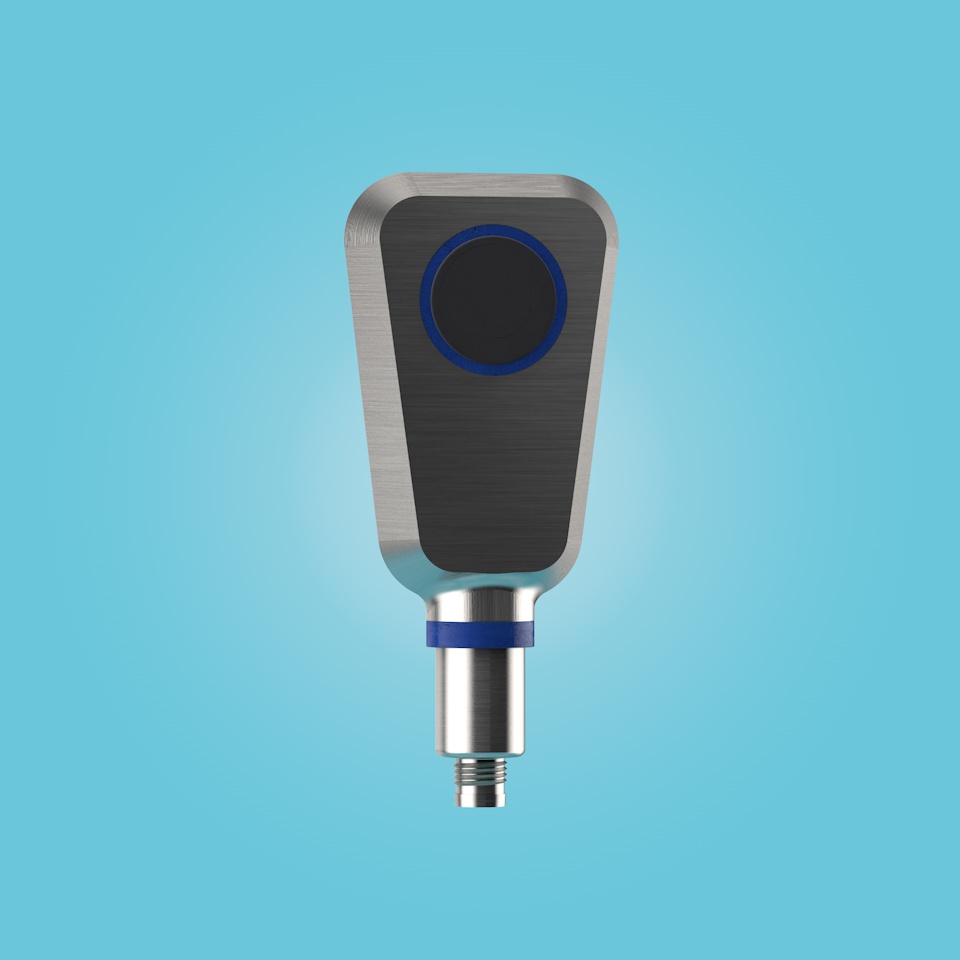

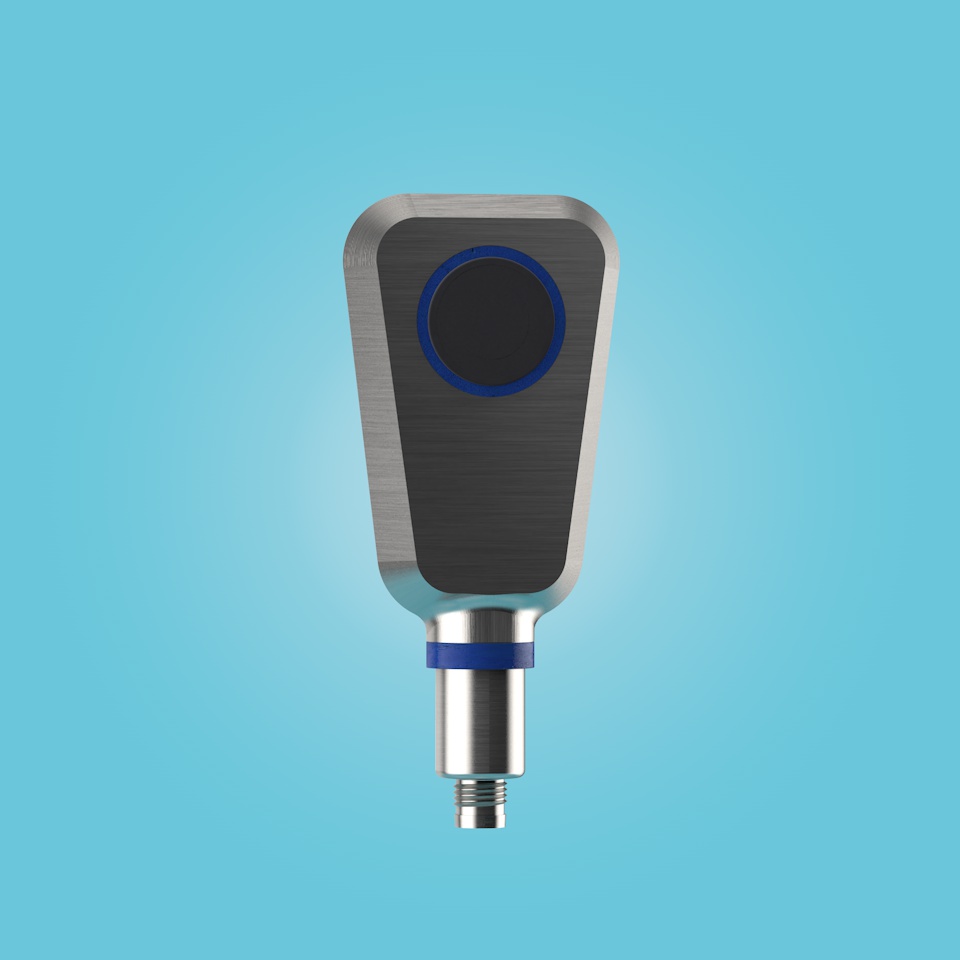

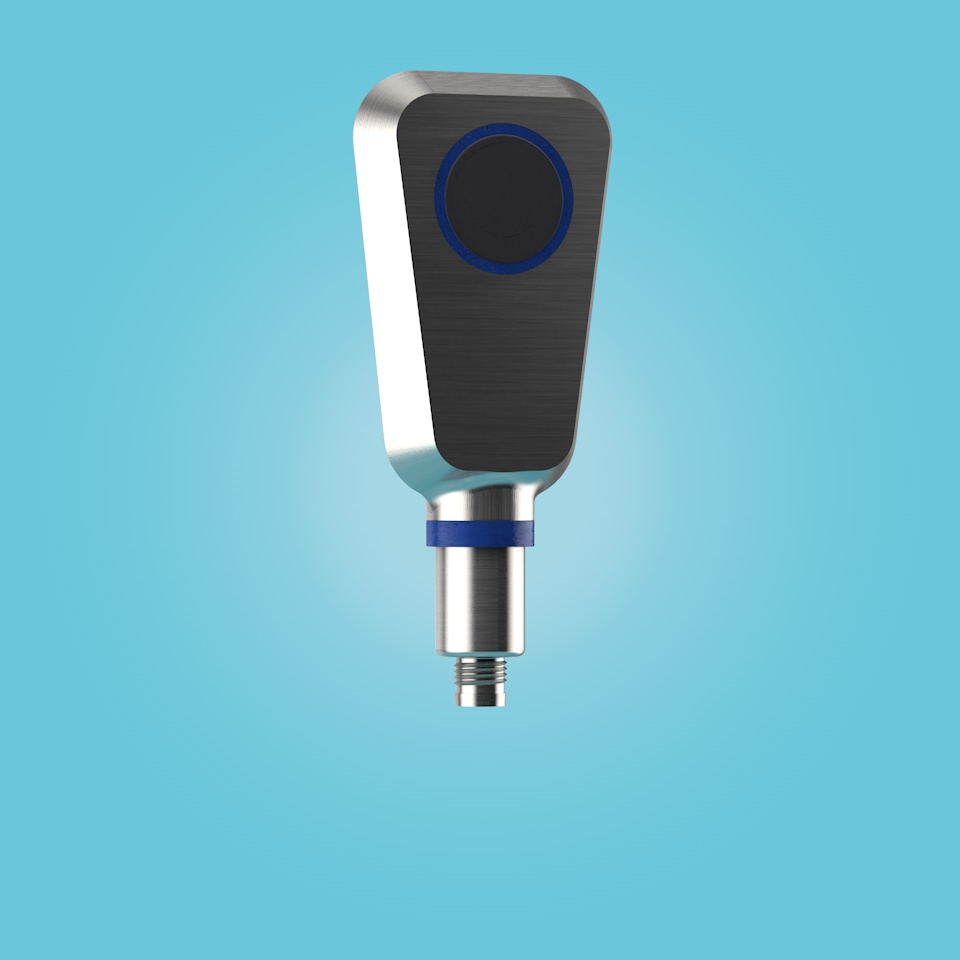

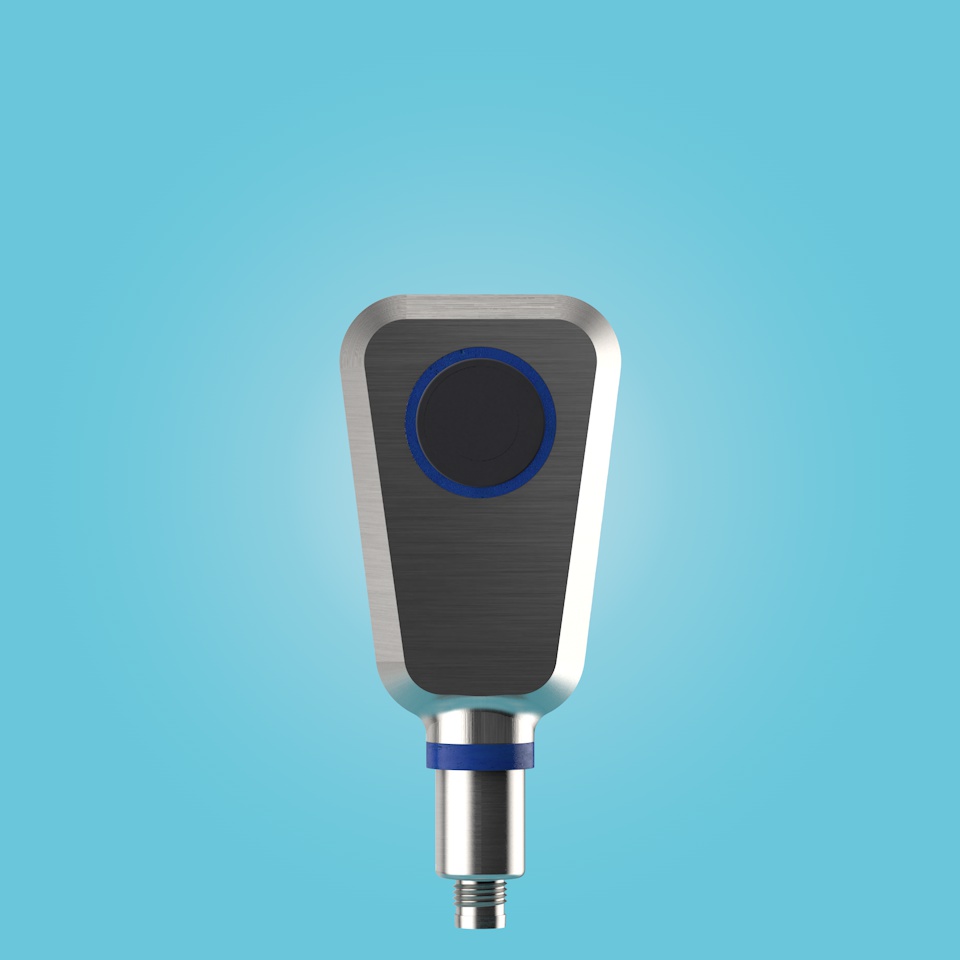

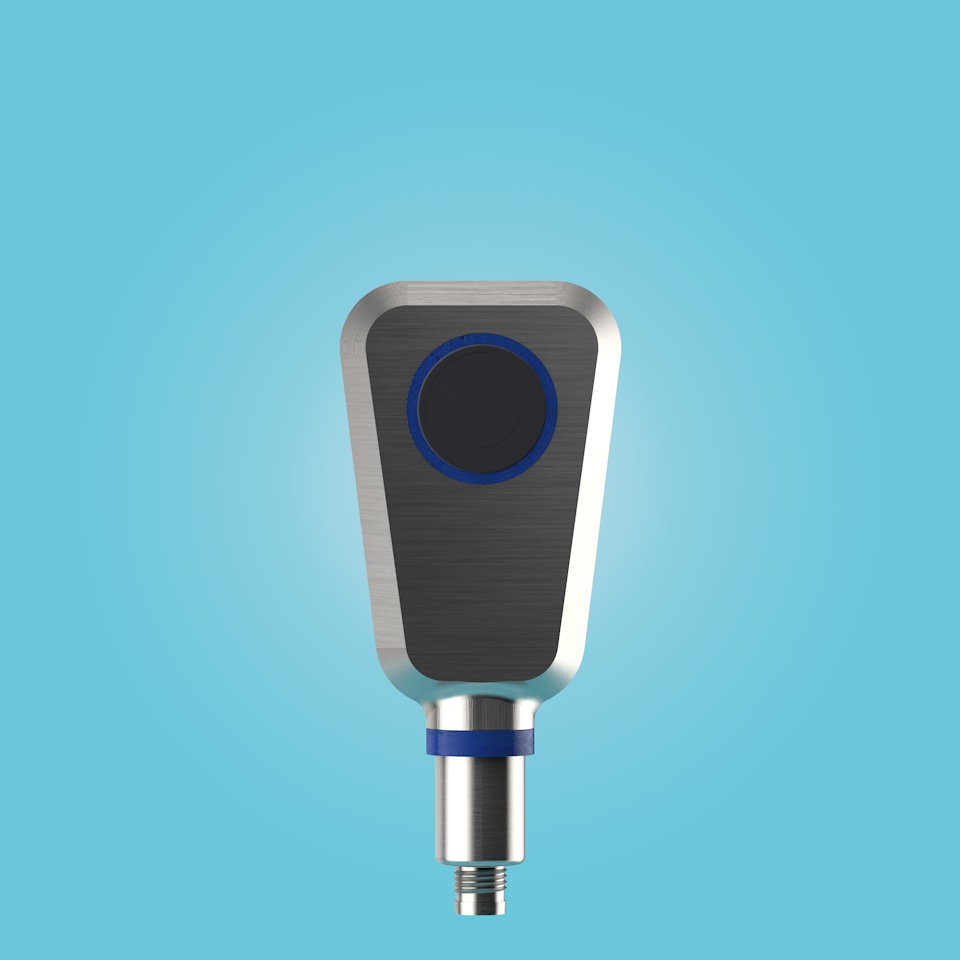

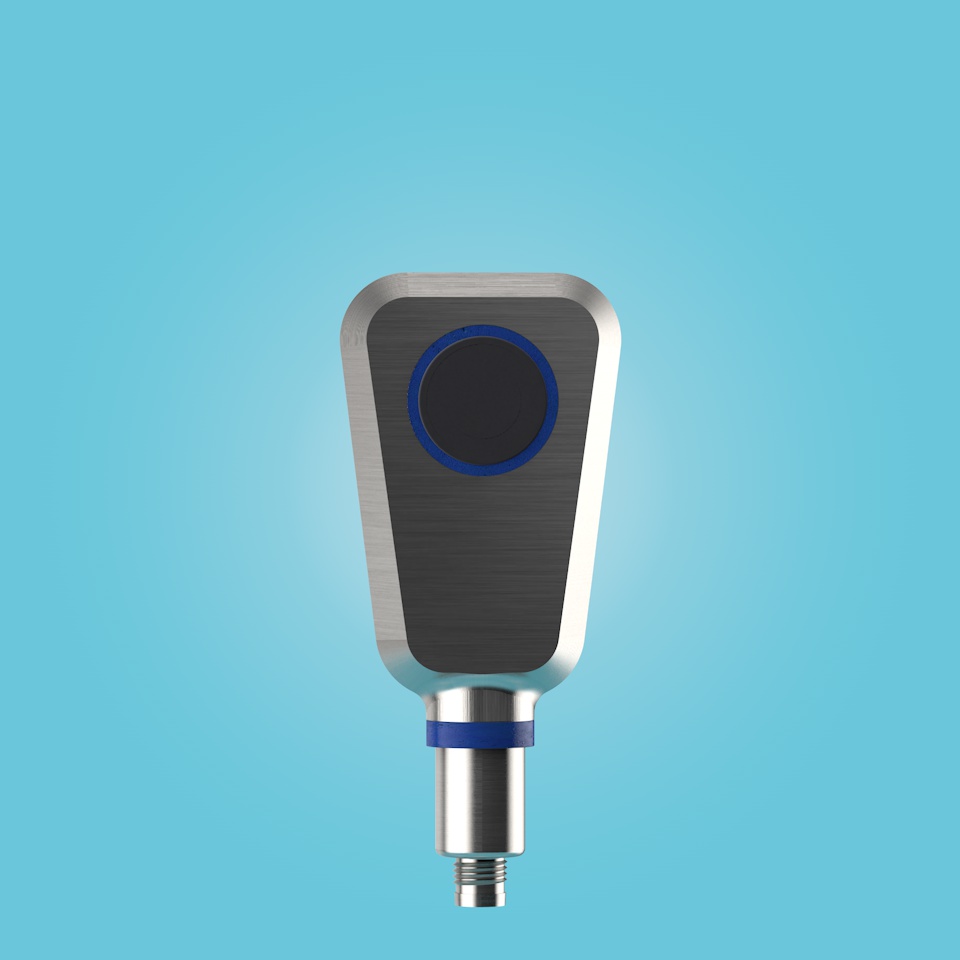

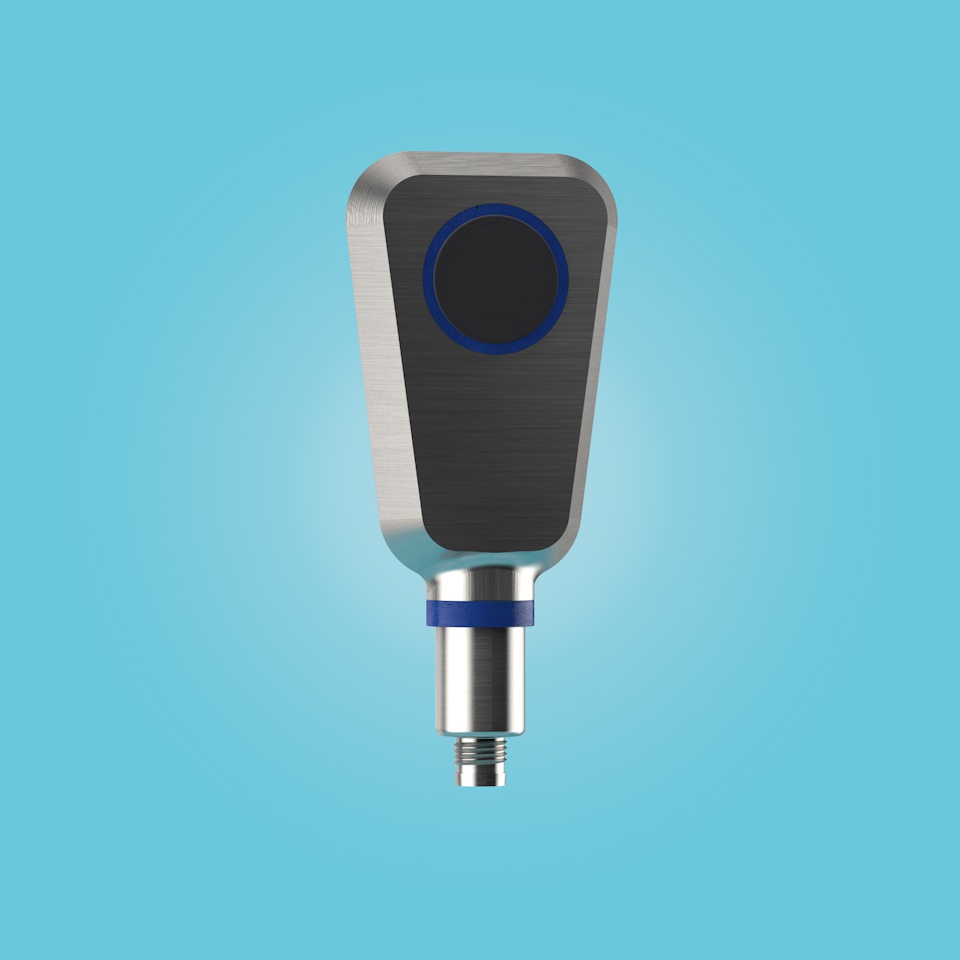

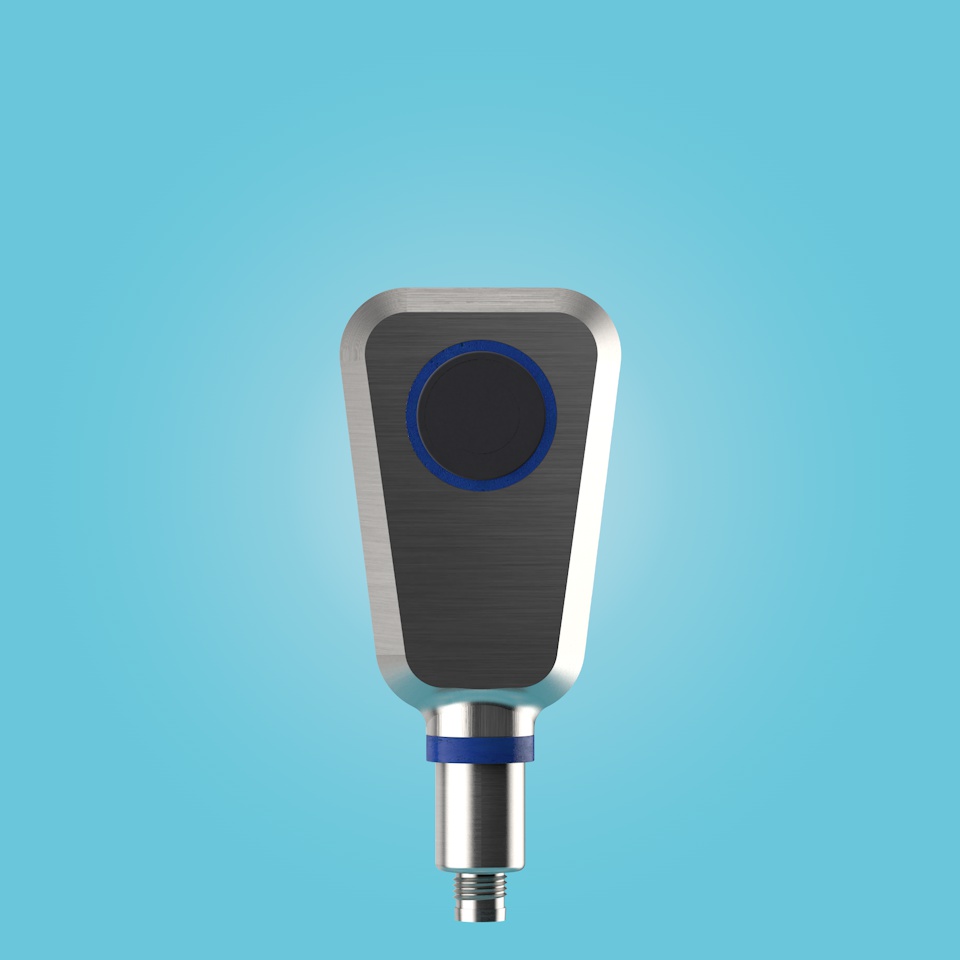

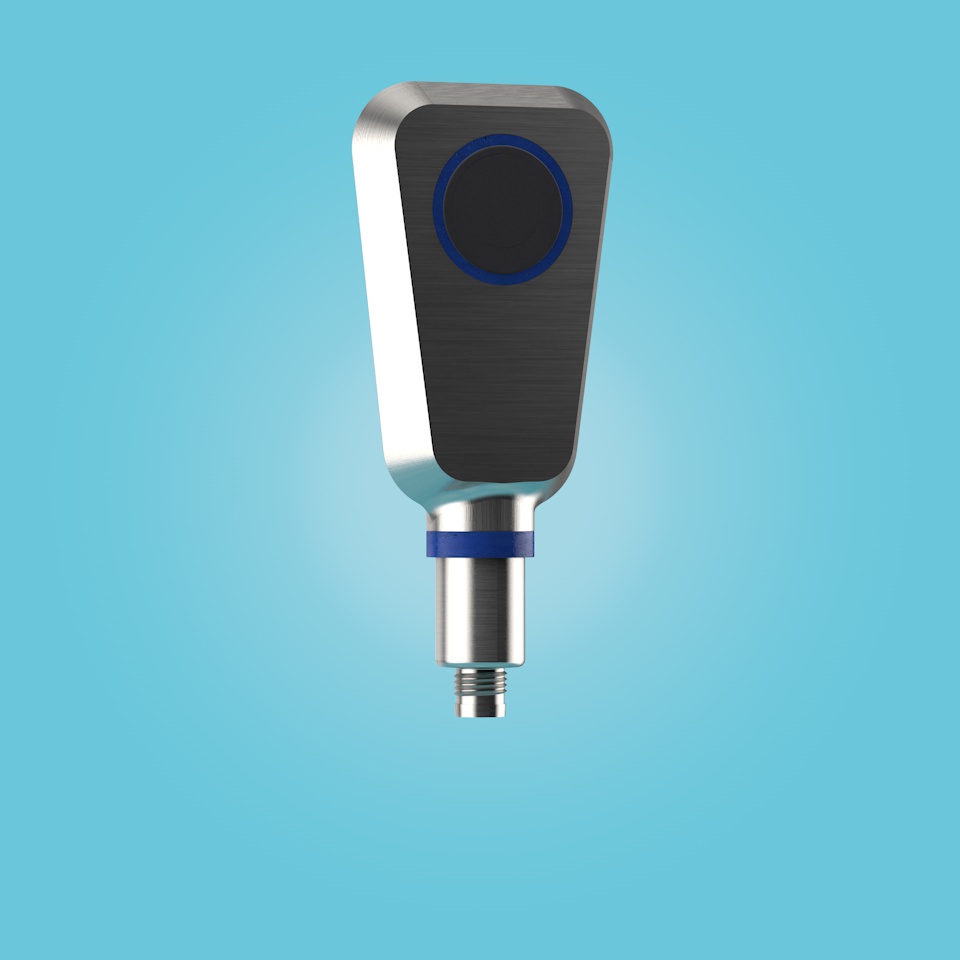

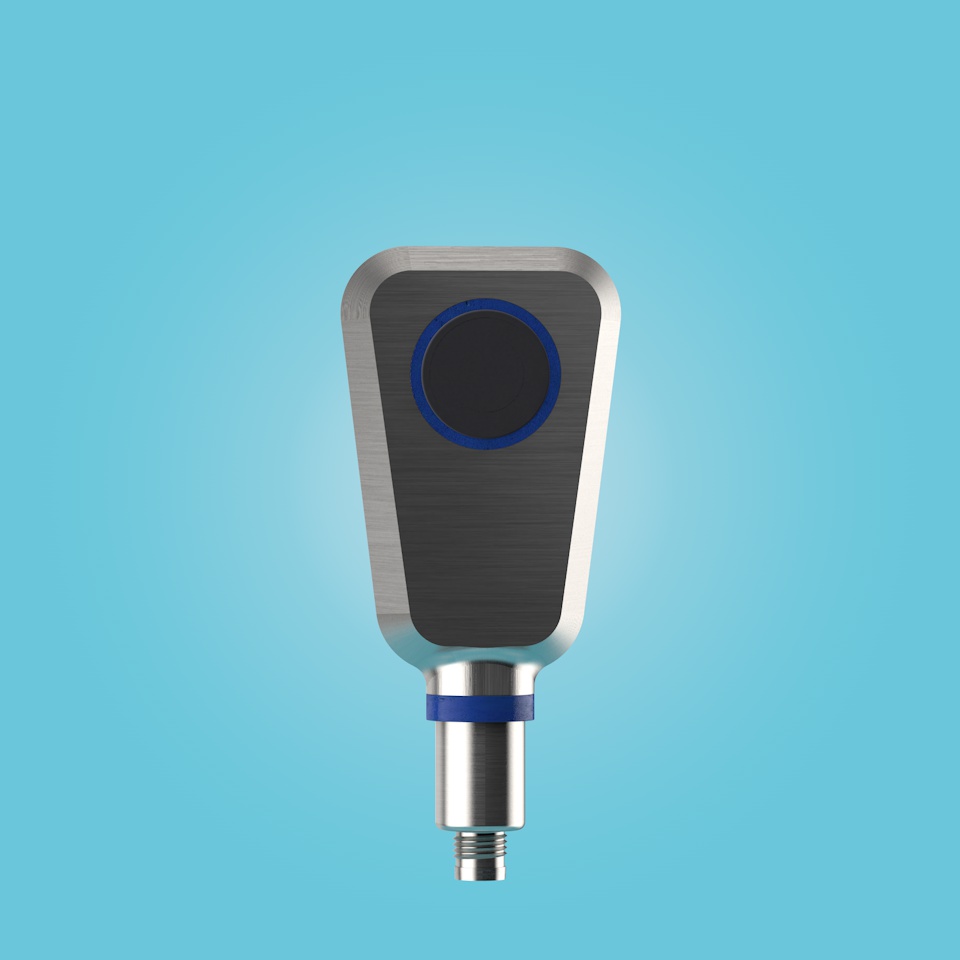

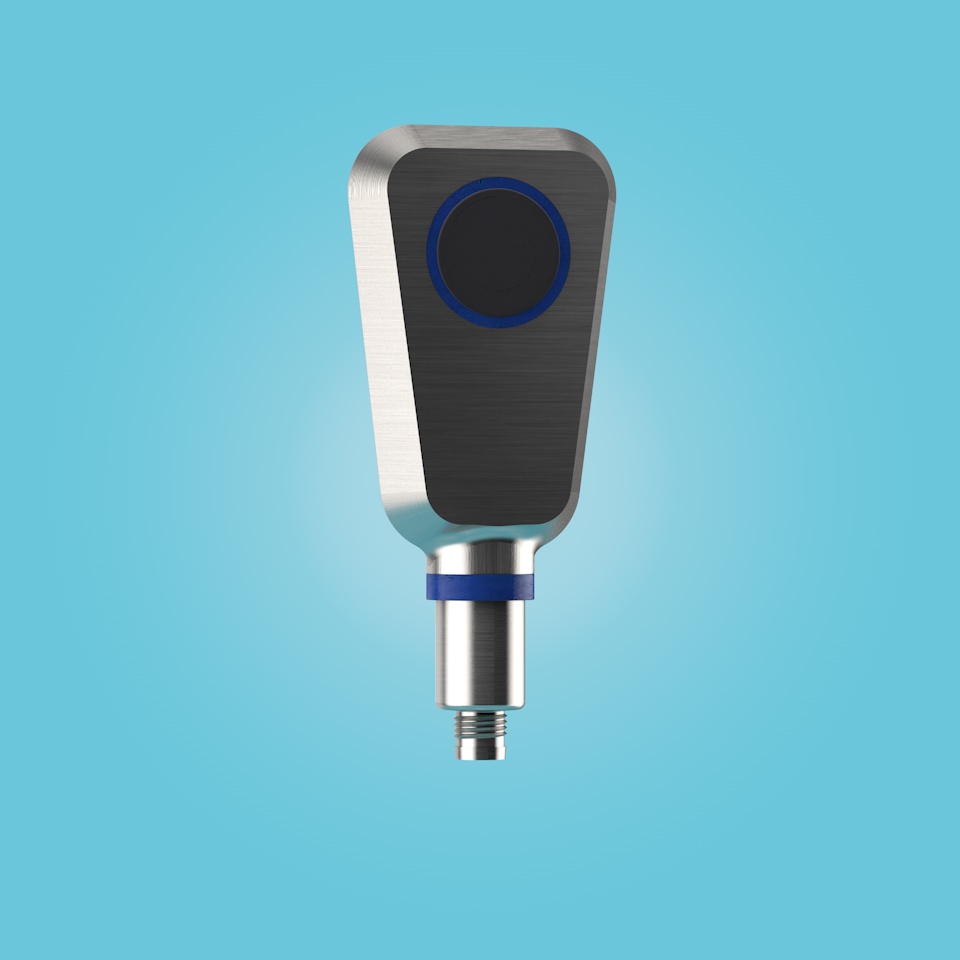

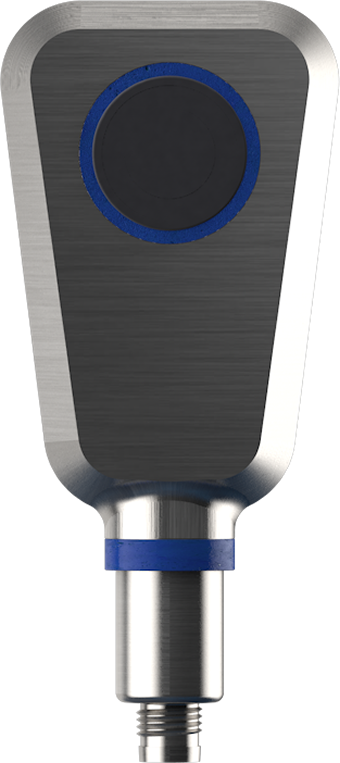

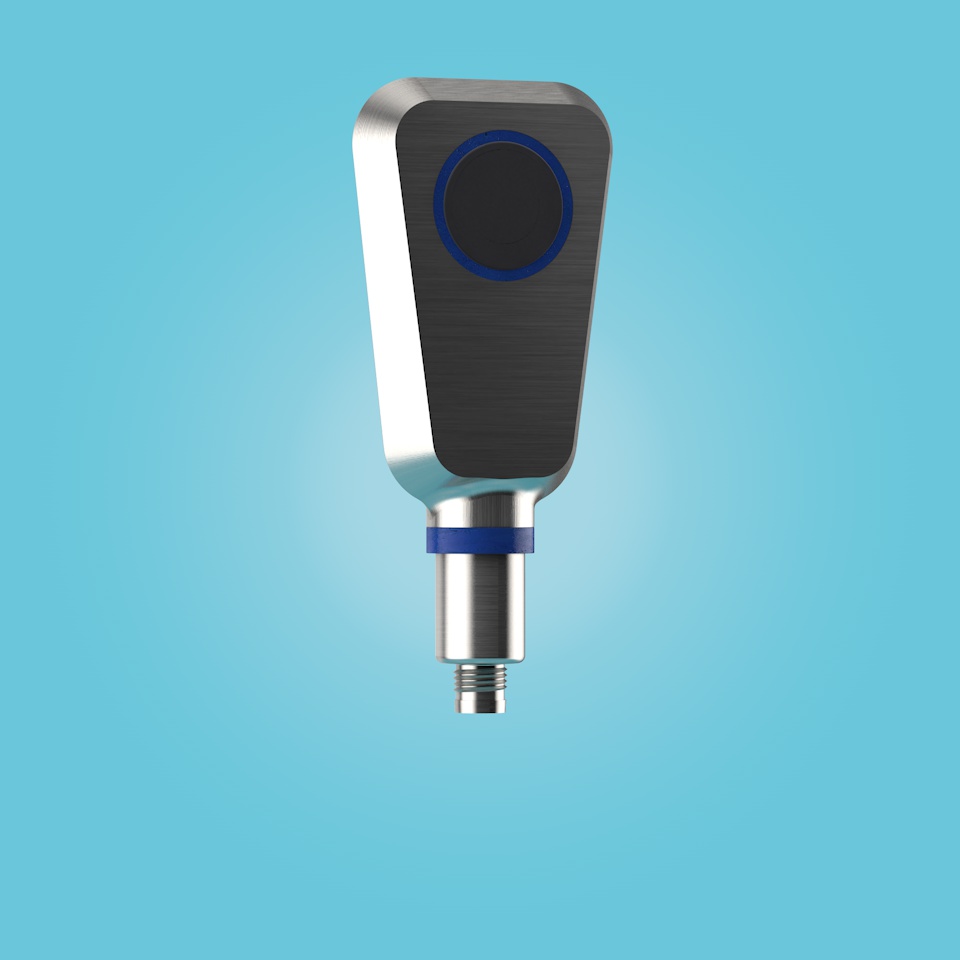

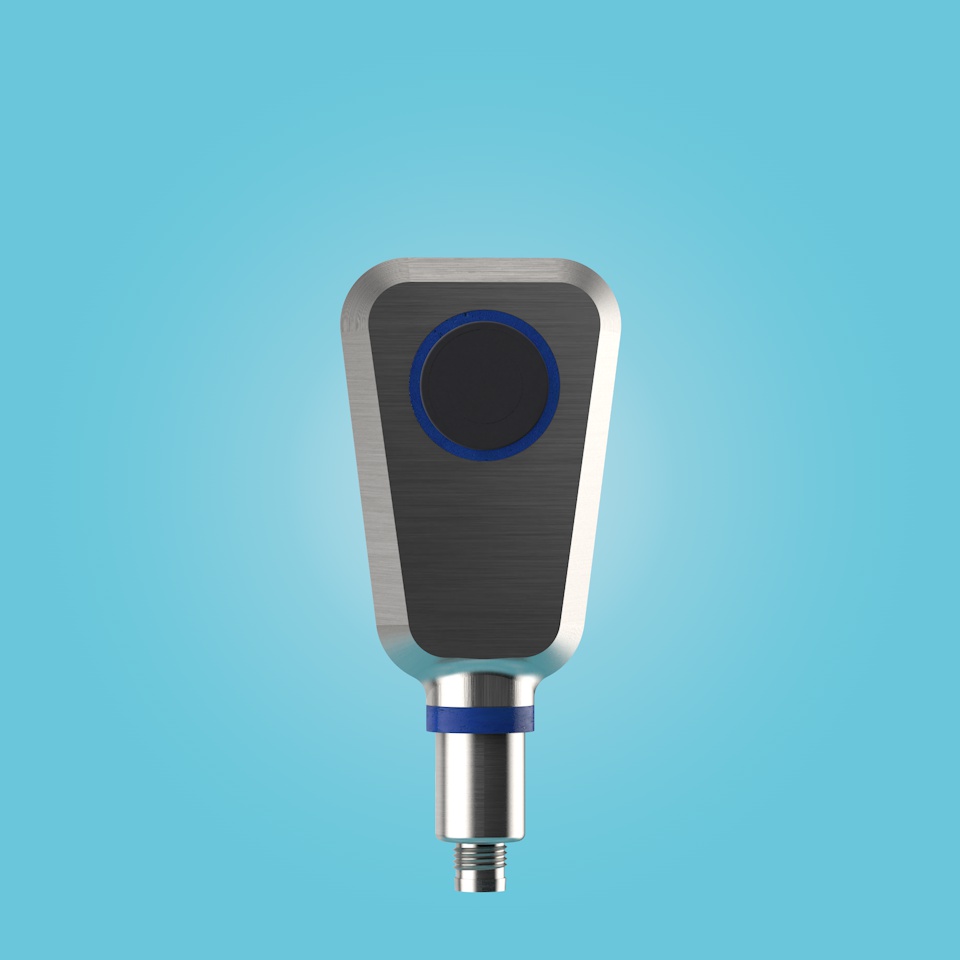

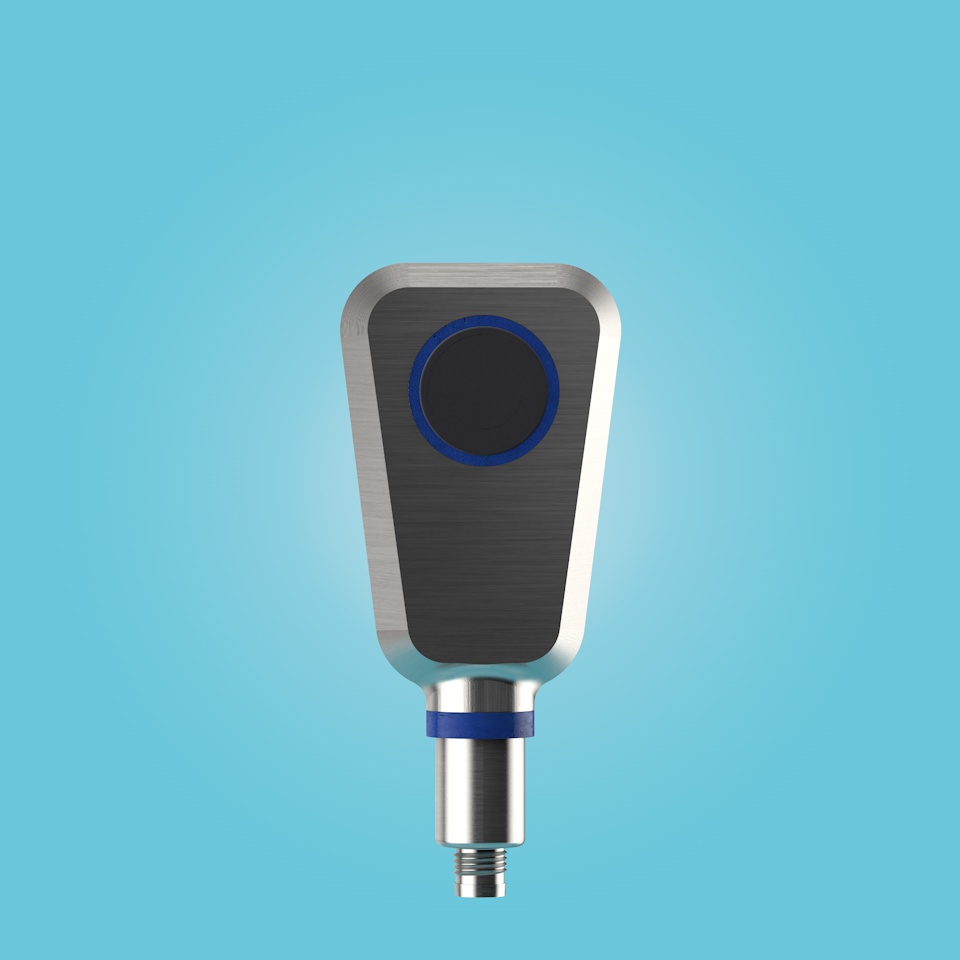

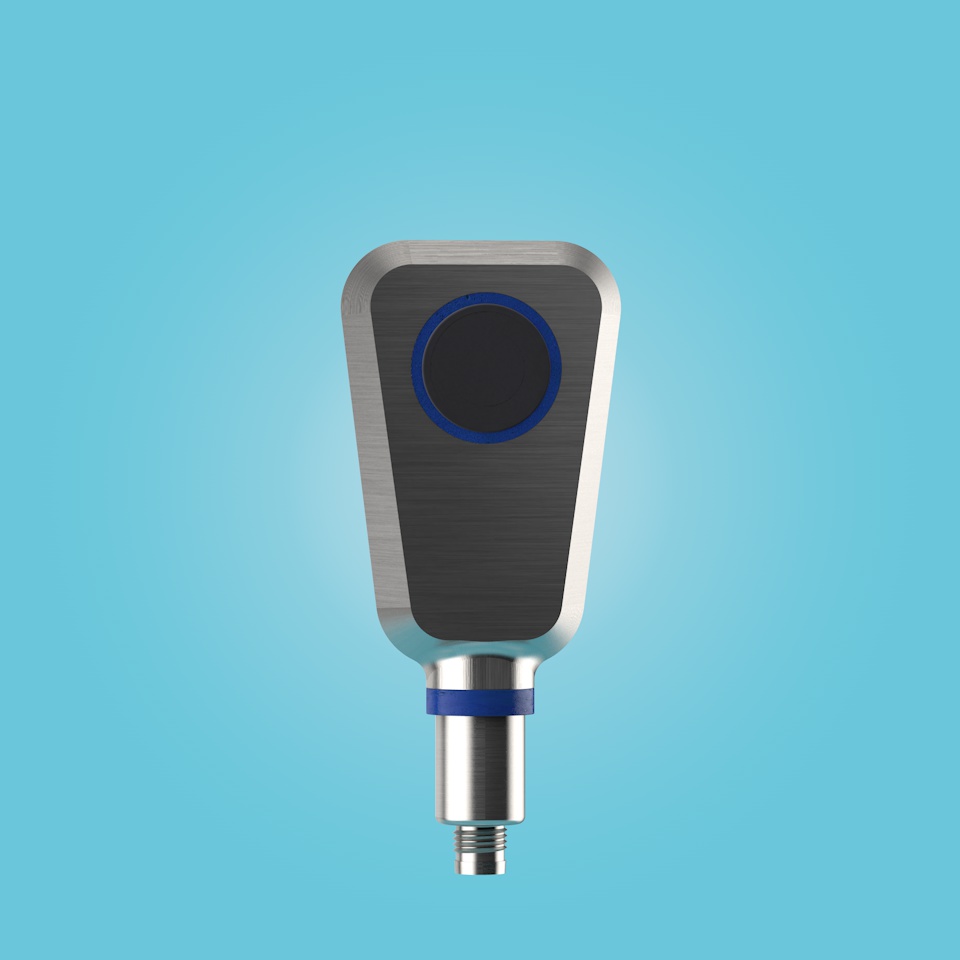

THE NEW STAINLESS STEEL ULTRASONIC SENSOR.
A CLEVER DESIGN FOR HYGIENE APPLICATIONS.

Technical data

  • _ Ultrasonic sensor of stainless steel 1.4404 with roughness depth Ra < 0.8 μm
  • _ PTFE-encased ultrasonic transducer
  • _ Protection category IP 66, IP 67, IP 68 and IP 69K
  • _ Stand design and hygienic design versions

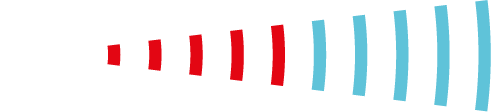

  • _ 4 detection ranges from 20 mm to 1.3 m
  • _ Analogue output 4-20 mA and 0-10 V
  • _ Push-pull switching output with IO link

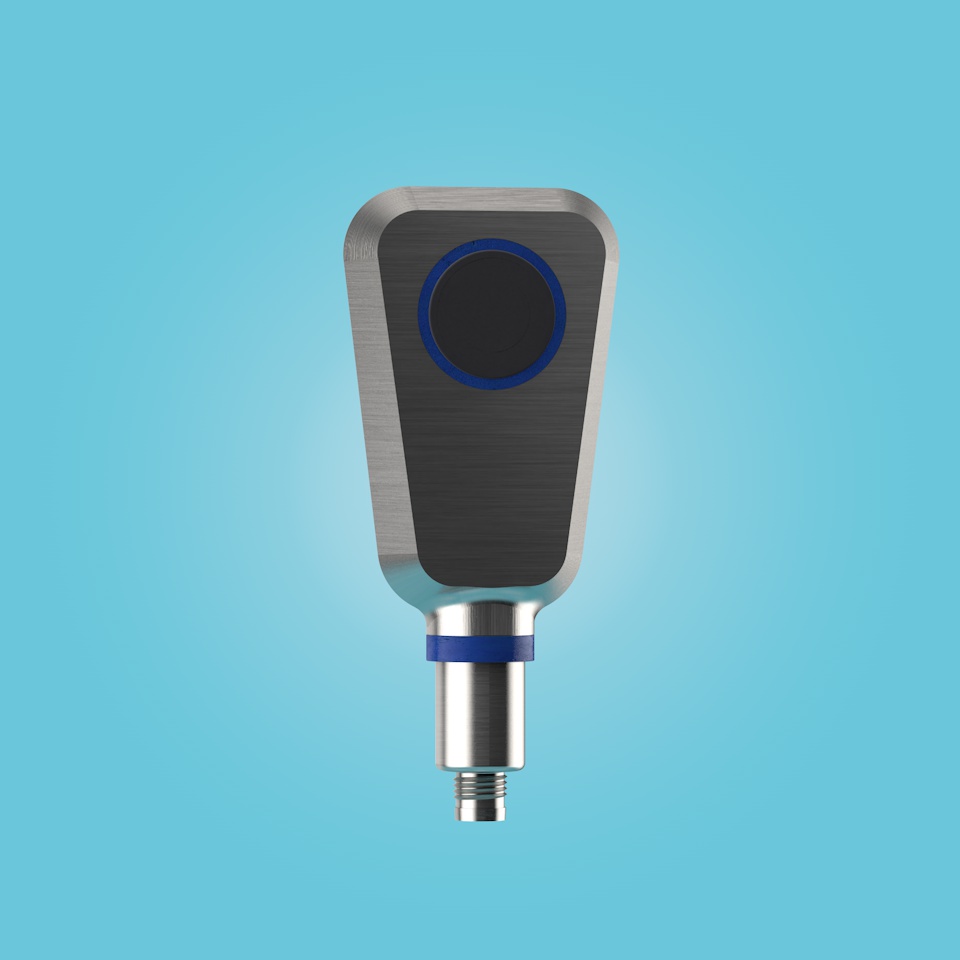

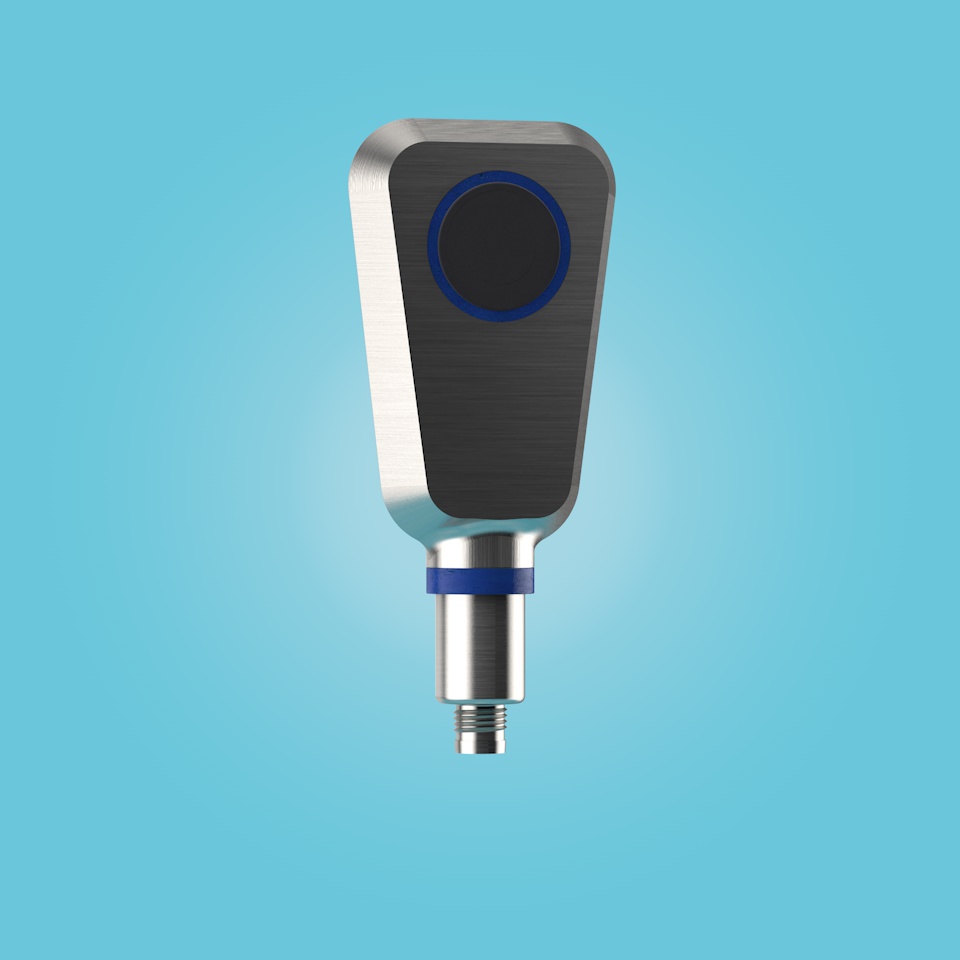

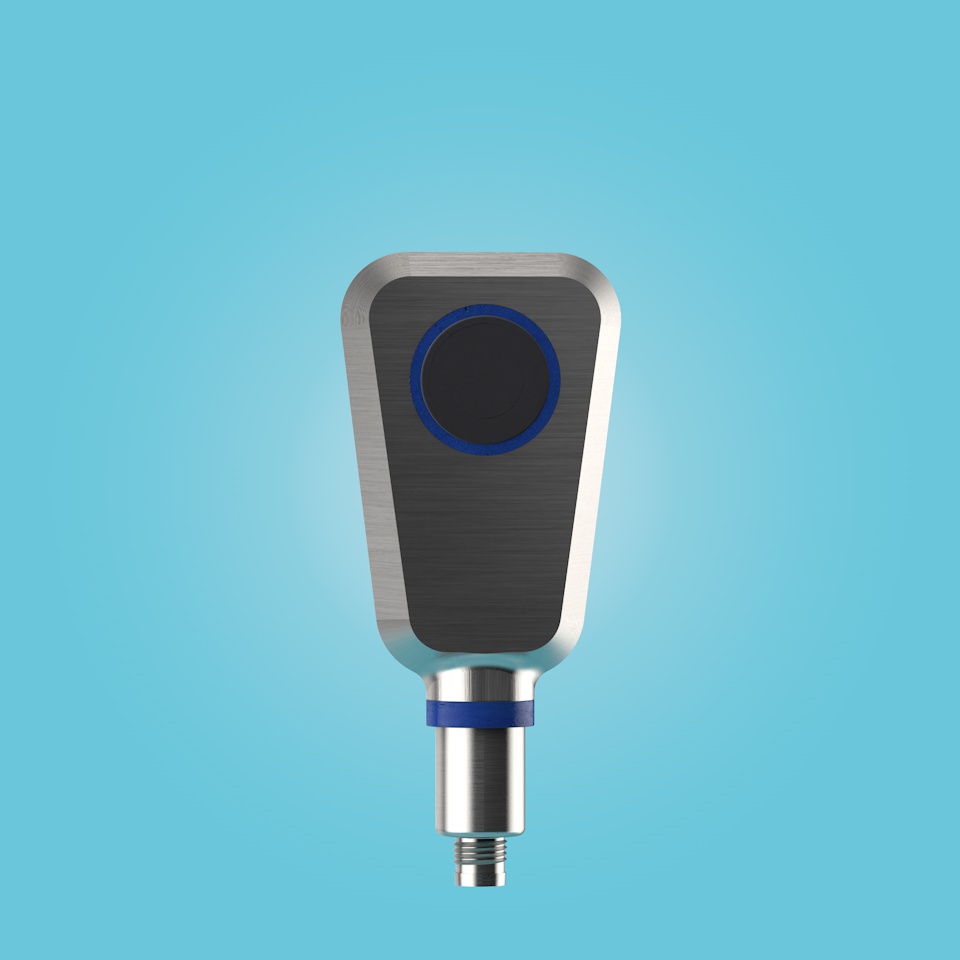

TWO COMPACT STAINLESS STEEL HOUSINGS WITH INNOVATIVE ULTRASOUND TECHNOLOGY.

Designed for the most demanding hygiene requirements.

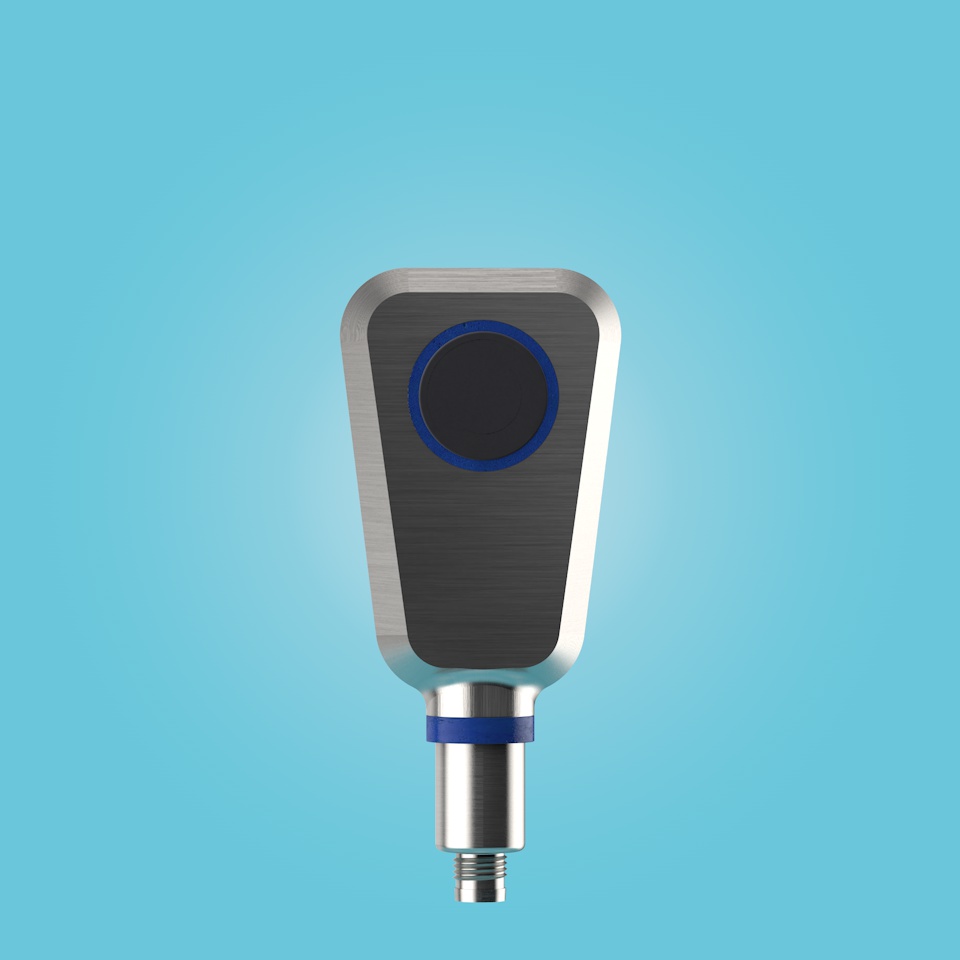

The ingenious geometry and compact dimensions of the hygiene sensor pms make the most flexibly applicable ultrasonic sensor of its class. The standard version with a D12 adapter shaft permits installation in a mounting clip or a flange screw connection. The D12 bayonet catch enables the sensor to be installed quickly and affordably in an established fastening system. The structure of the housing ensures that the flow profile of machine systems which are cleaned and sterilized by gassing are subject to the minimum of restrictions.

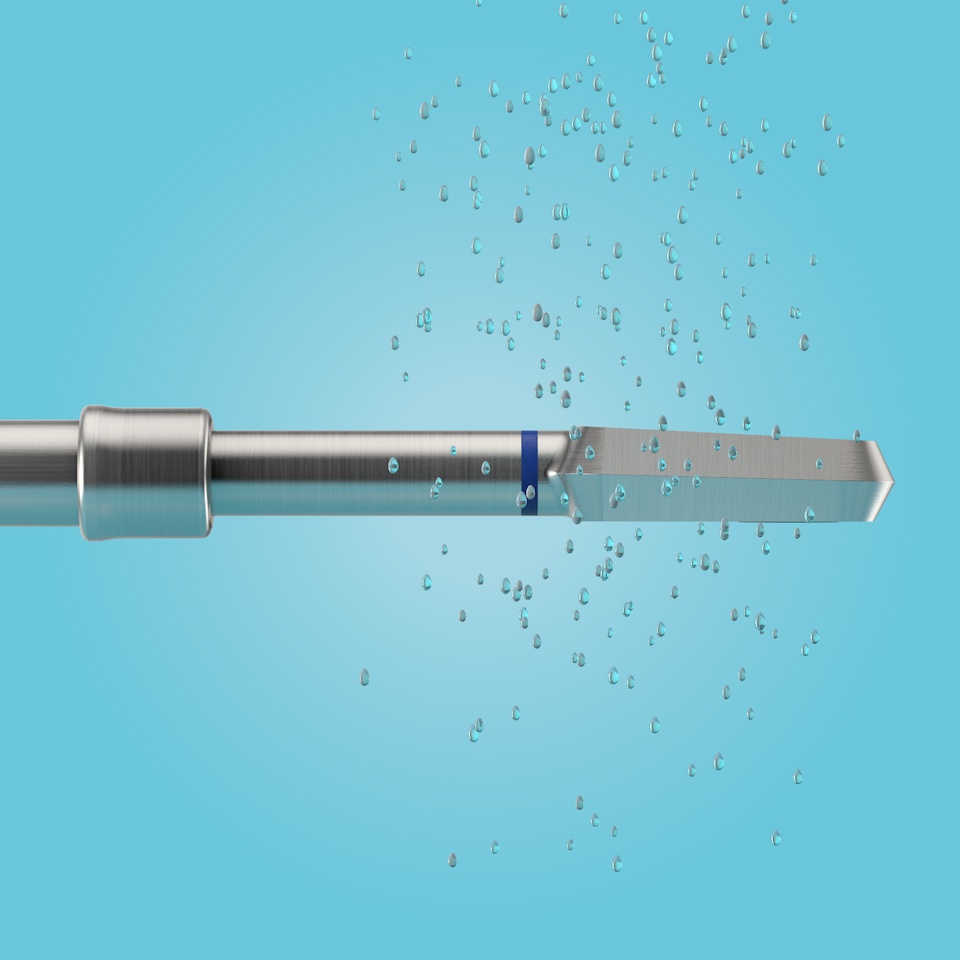

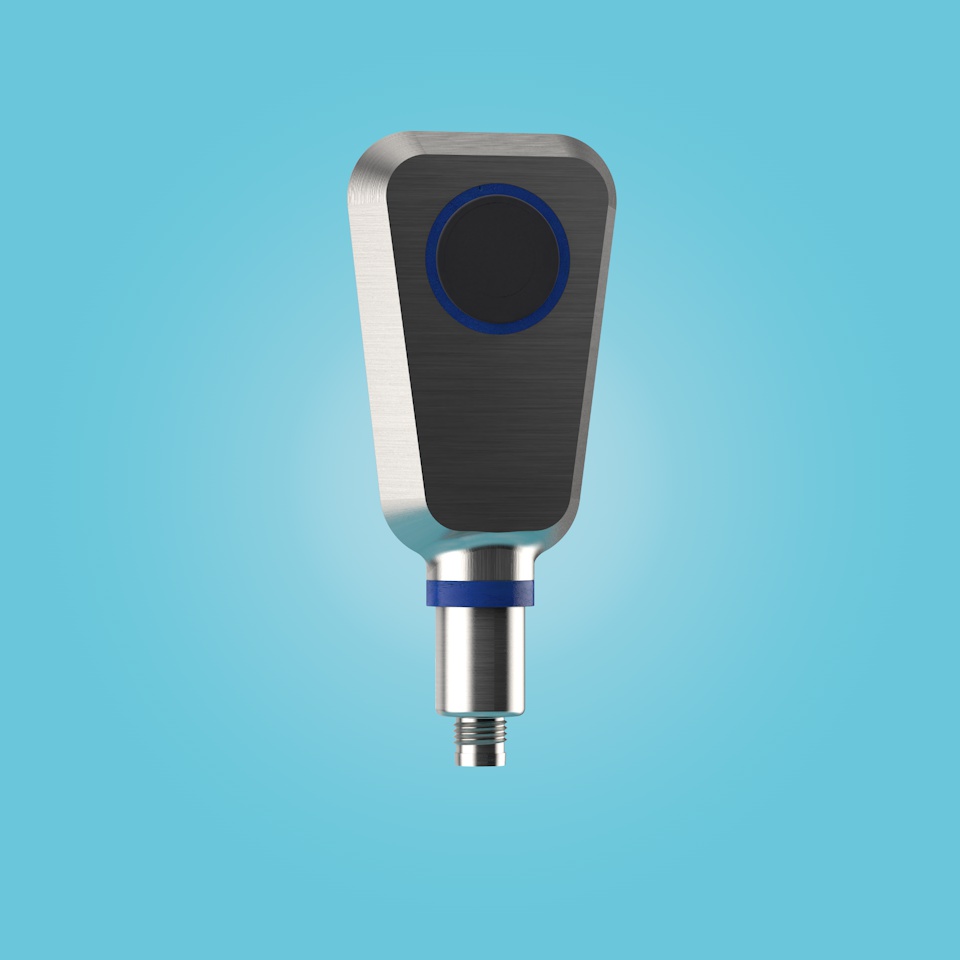

EASY TO CLEAN. ULTRASONIC SENSOR FOR WASH-DOWN APPLICATION.

Designed and constructed in accordance with EHEDG guidelines. ECOLAB and FDA-conform materials.

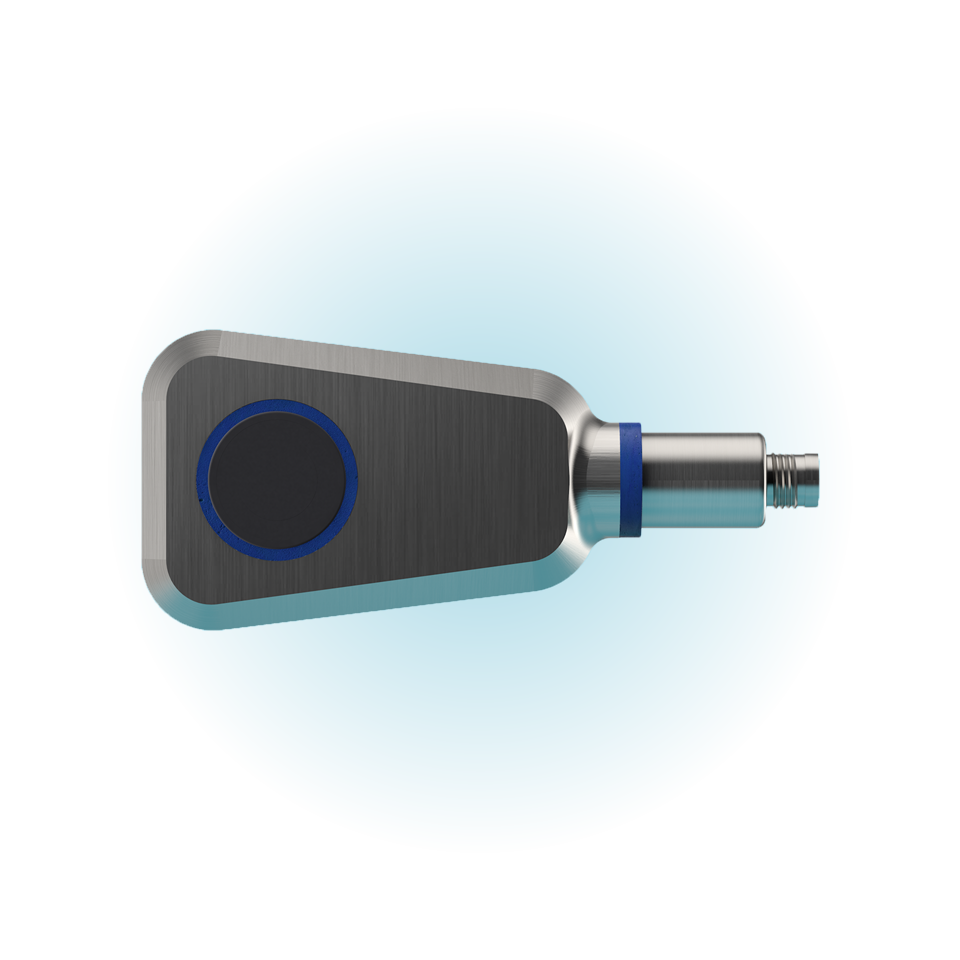

The design of the wash-down stainless steel housing with no crevices and dirt edges makes it perfectly suited to intensive cleaning and disinfection. Cleaning fluids can flow off from the housing in almost all conceivable installation positions. Even with horizontal installation for vertical downwards measurement, the rear side of the housing maintains an angle of ≥ 3°. Bacteria are unable to find any purchase on the smooth surface; cleaning agents flow away completely.

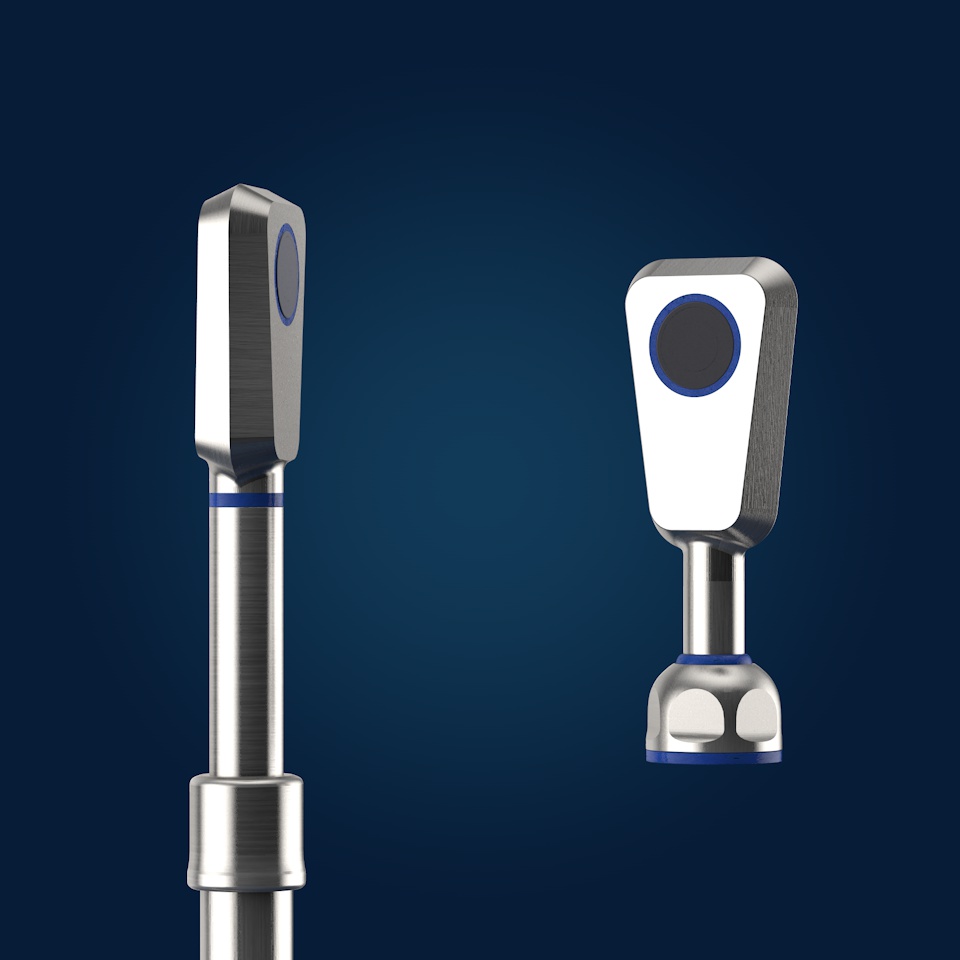

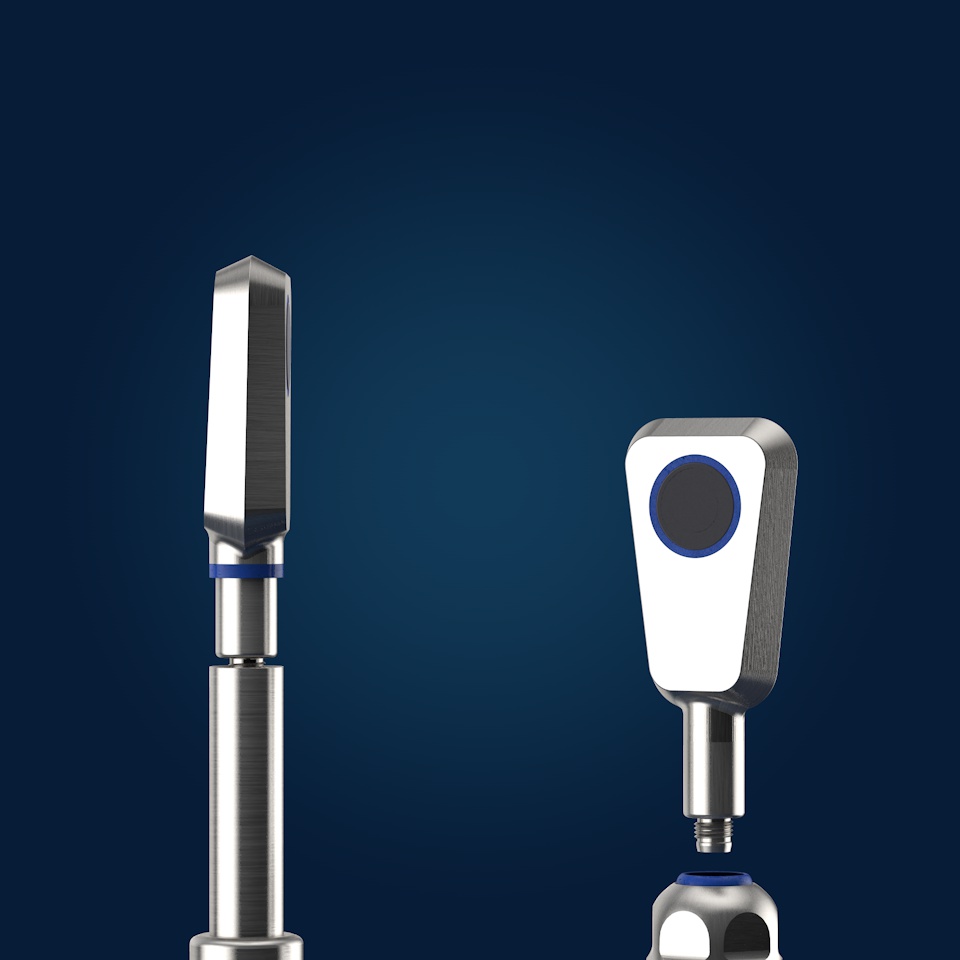

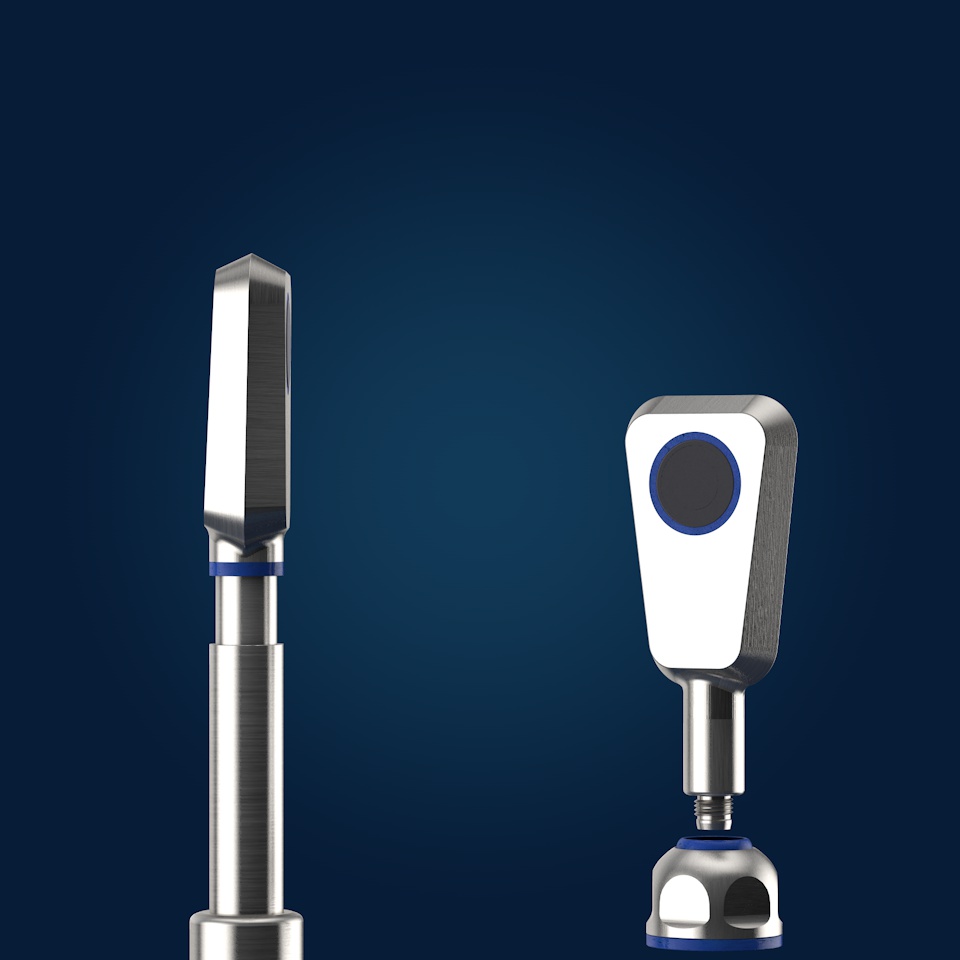

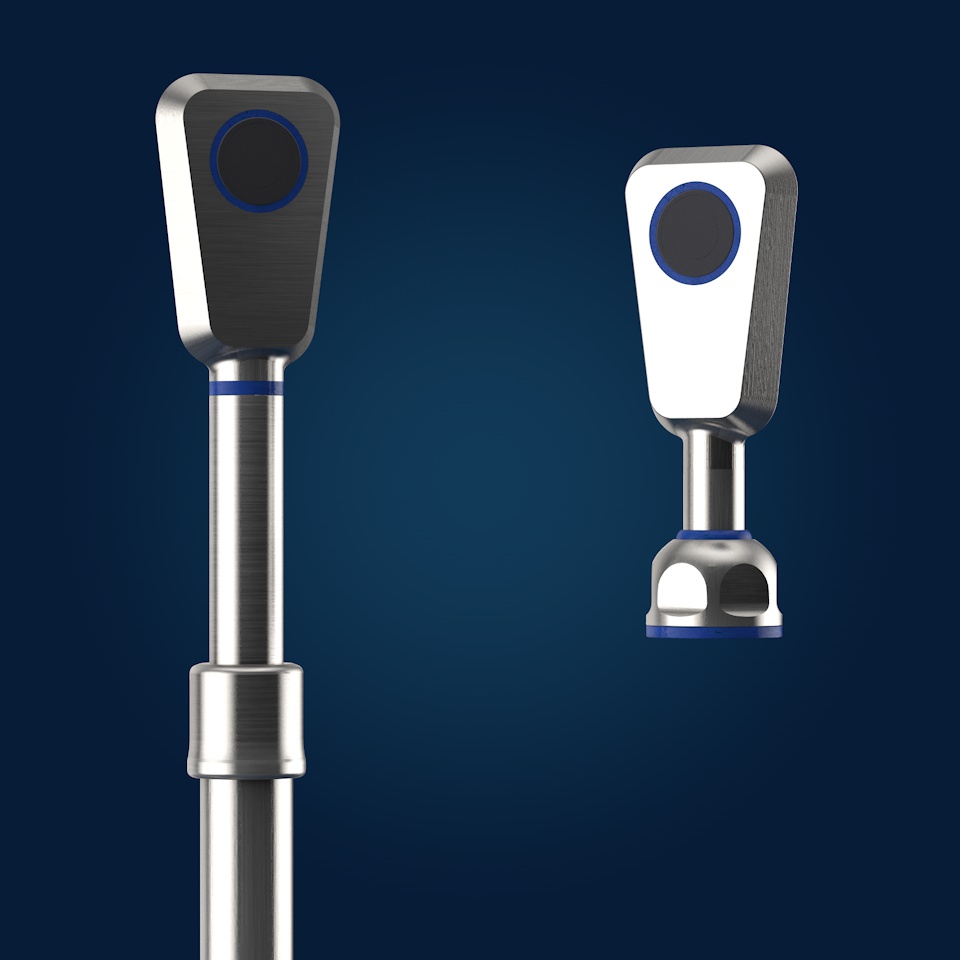

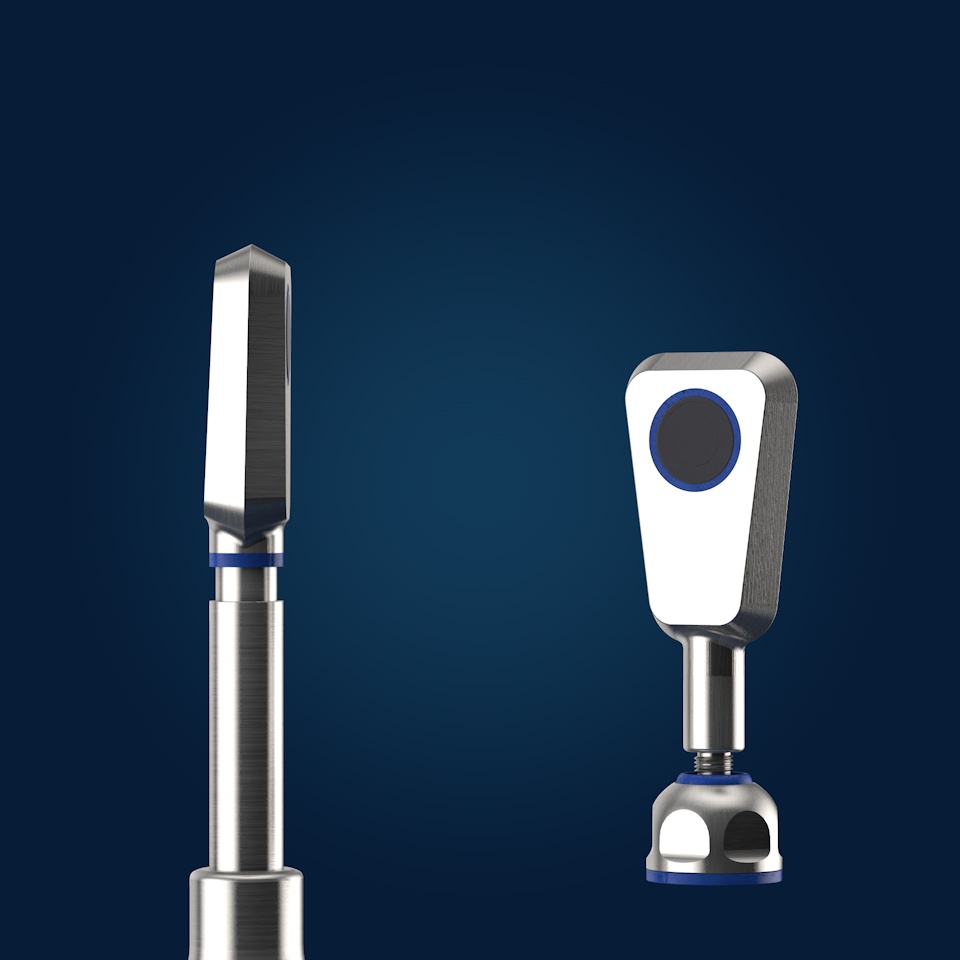

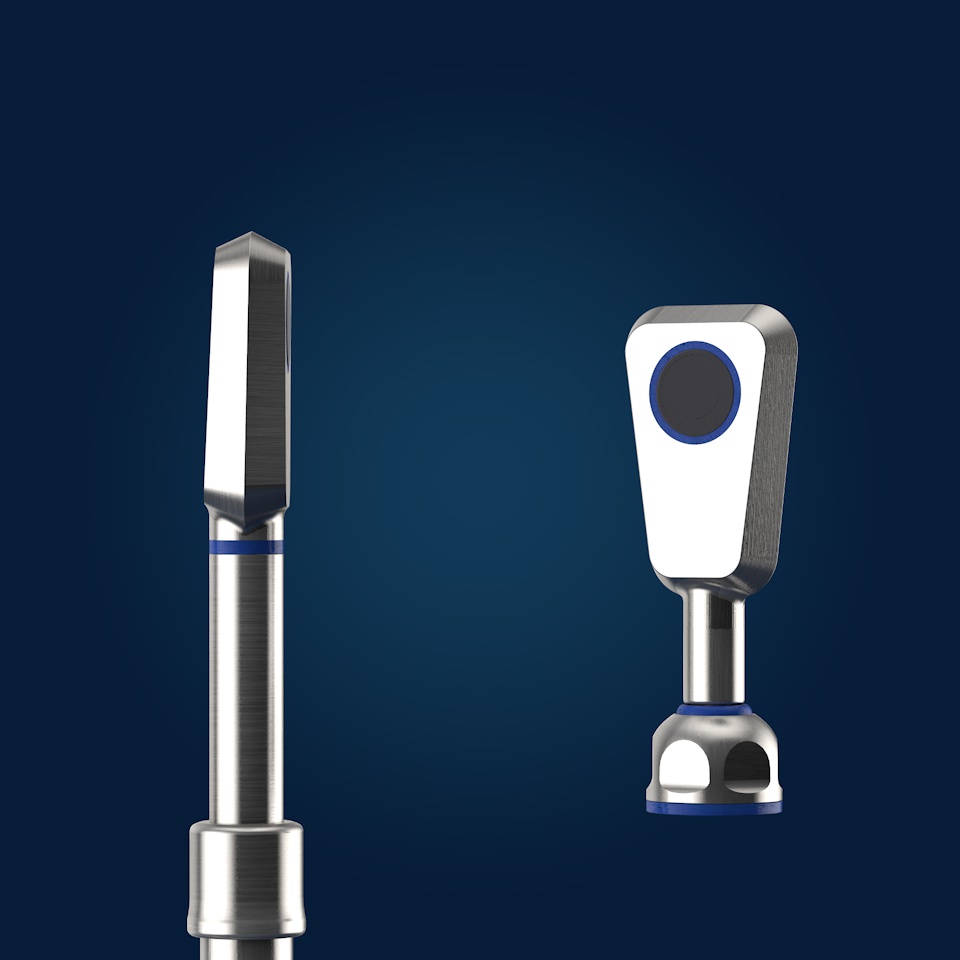

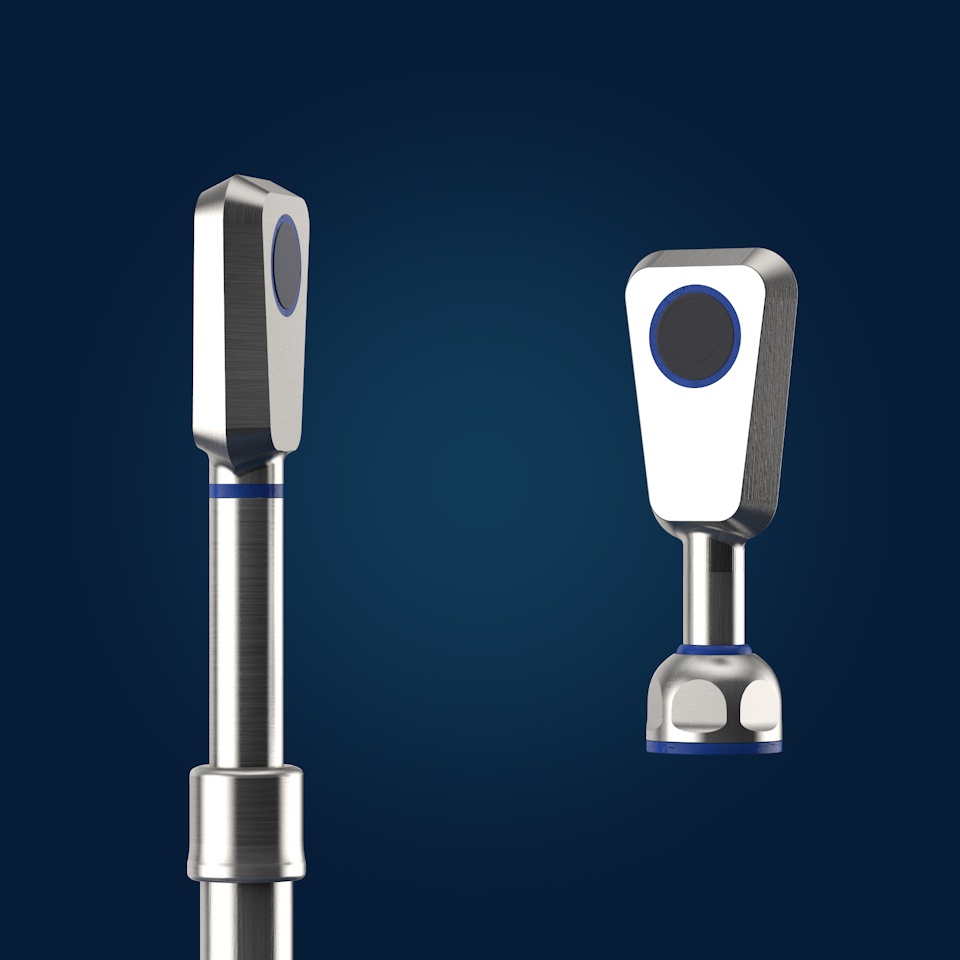

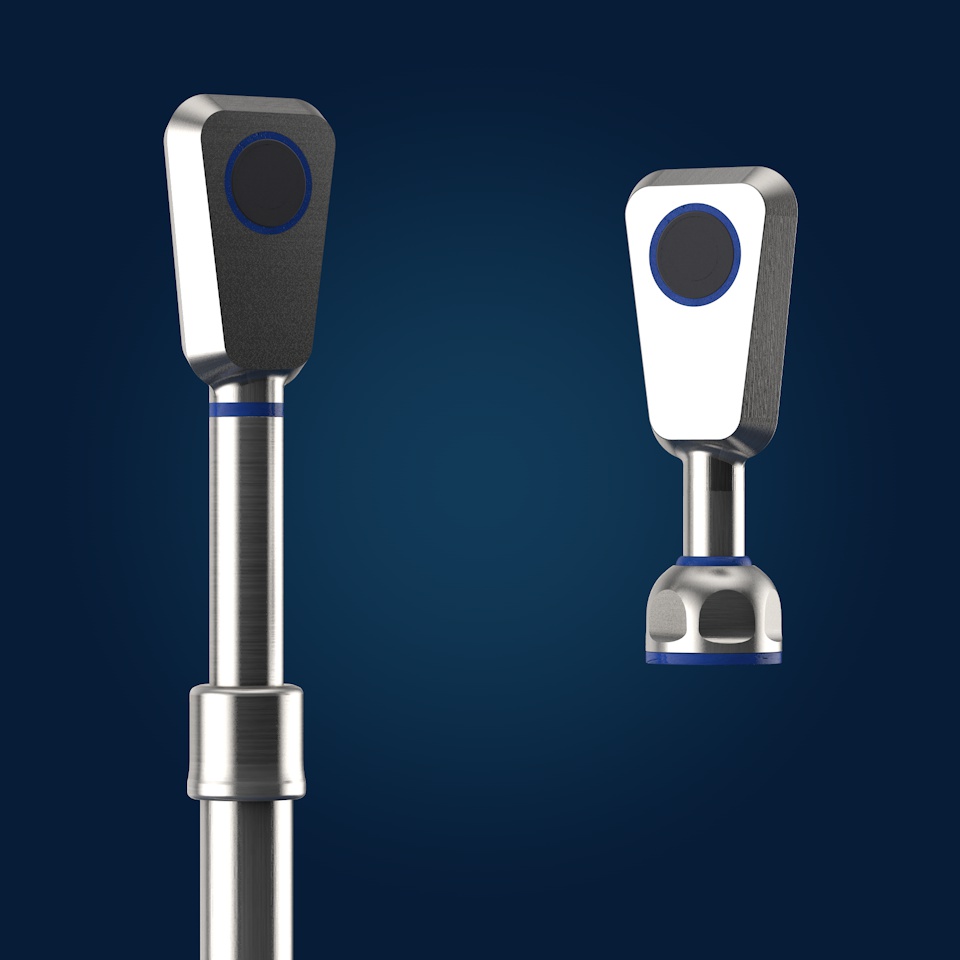

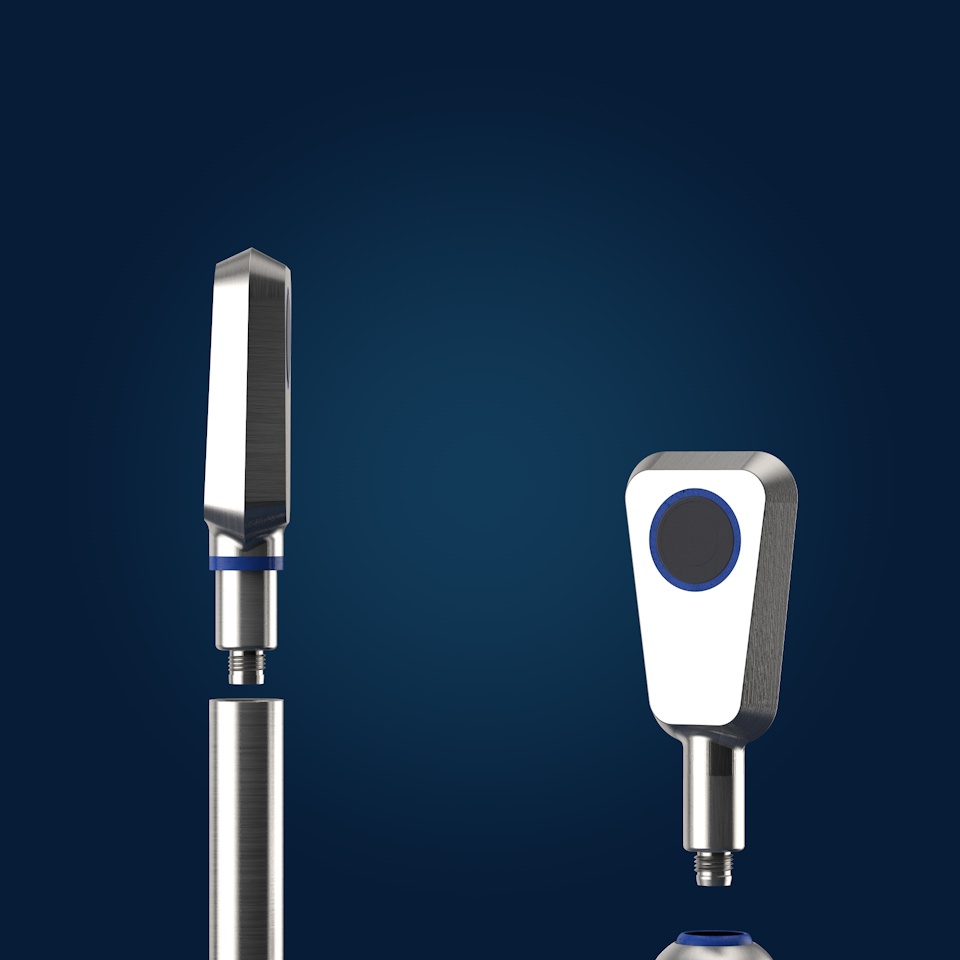

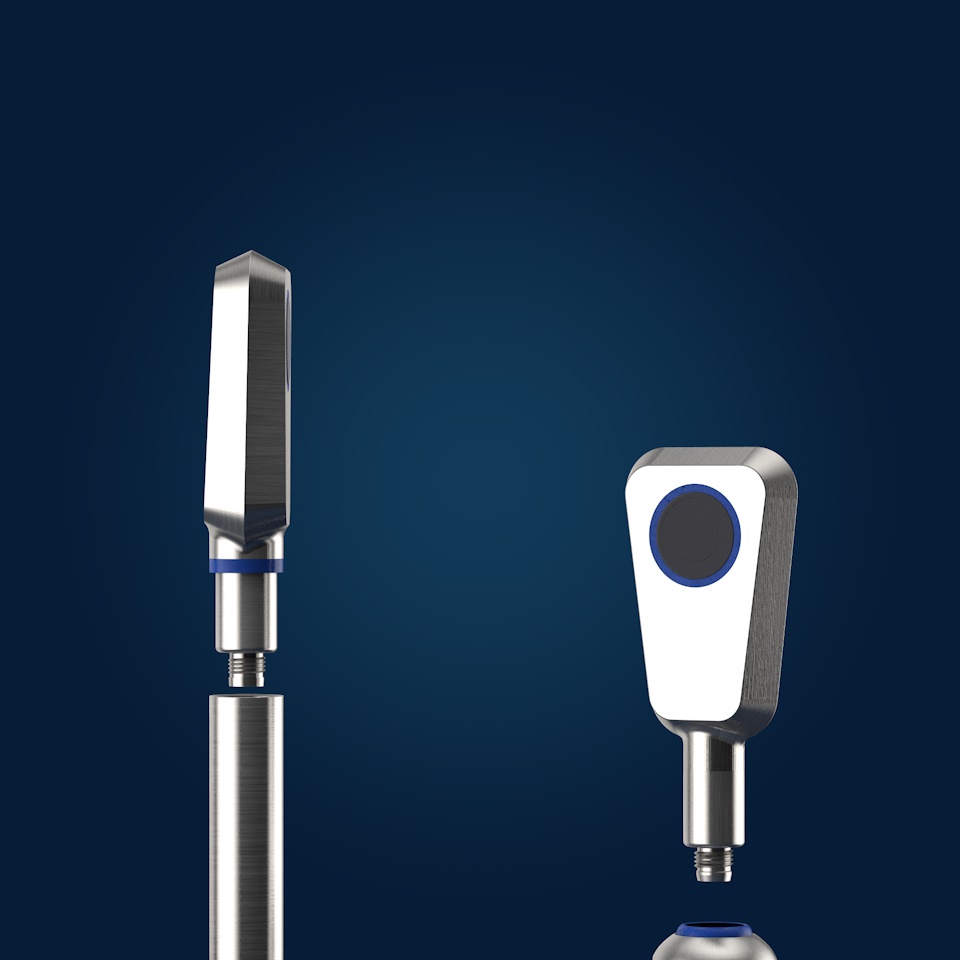

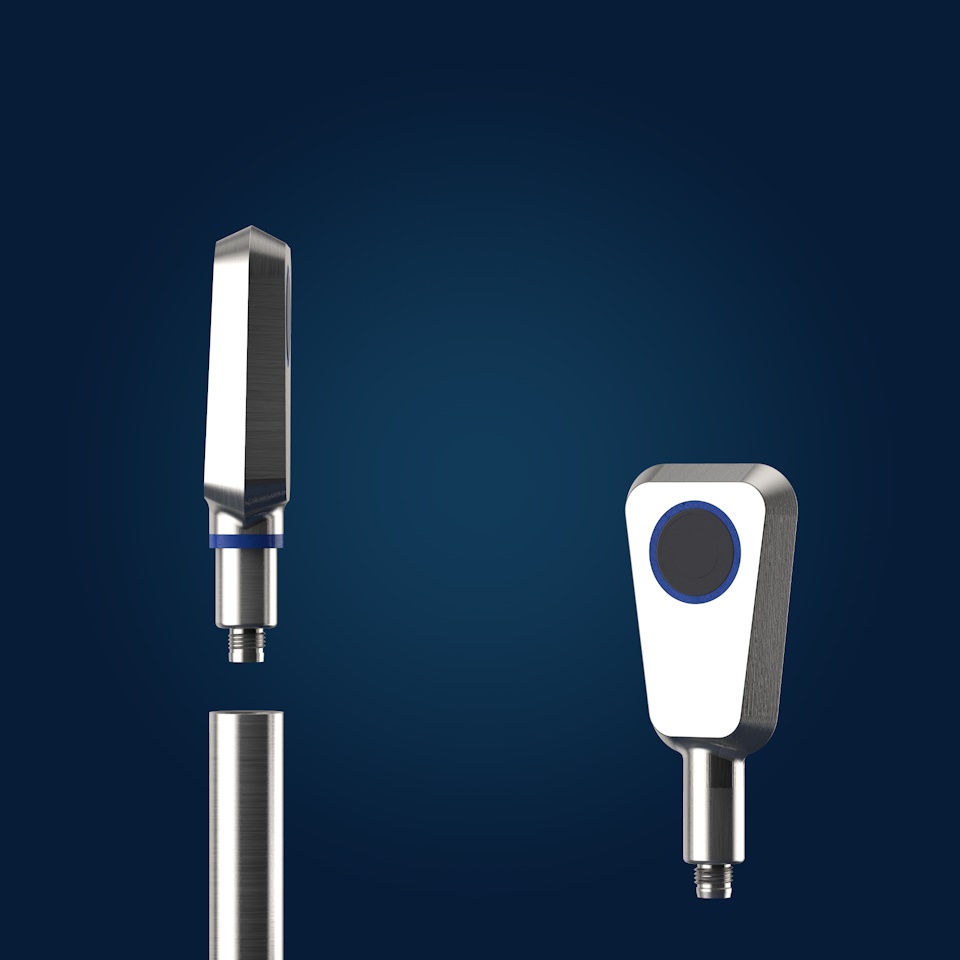

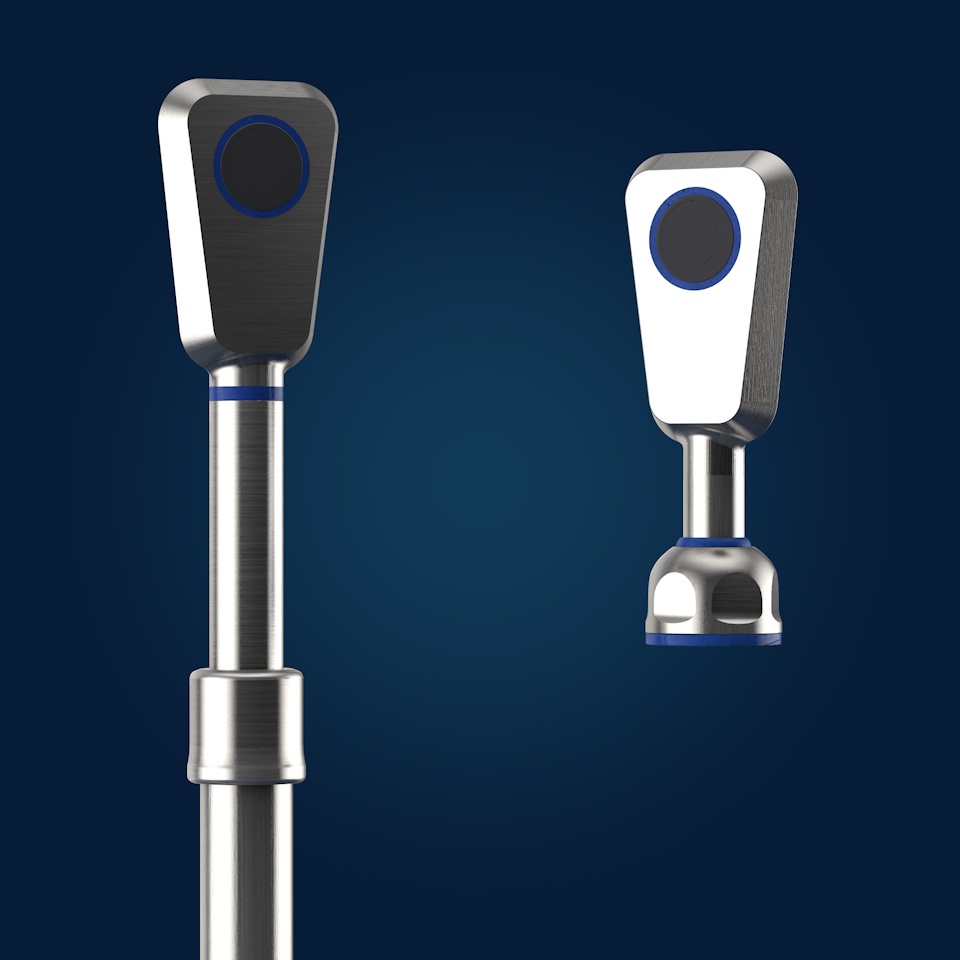

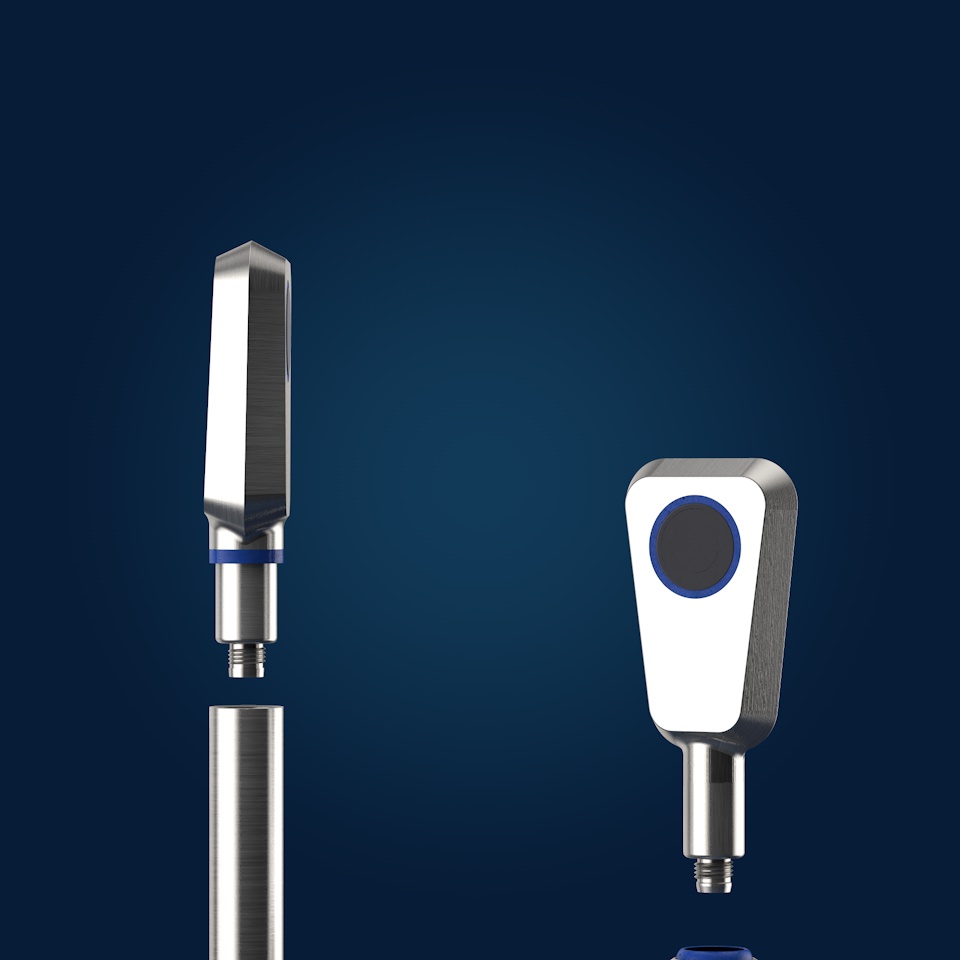

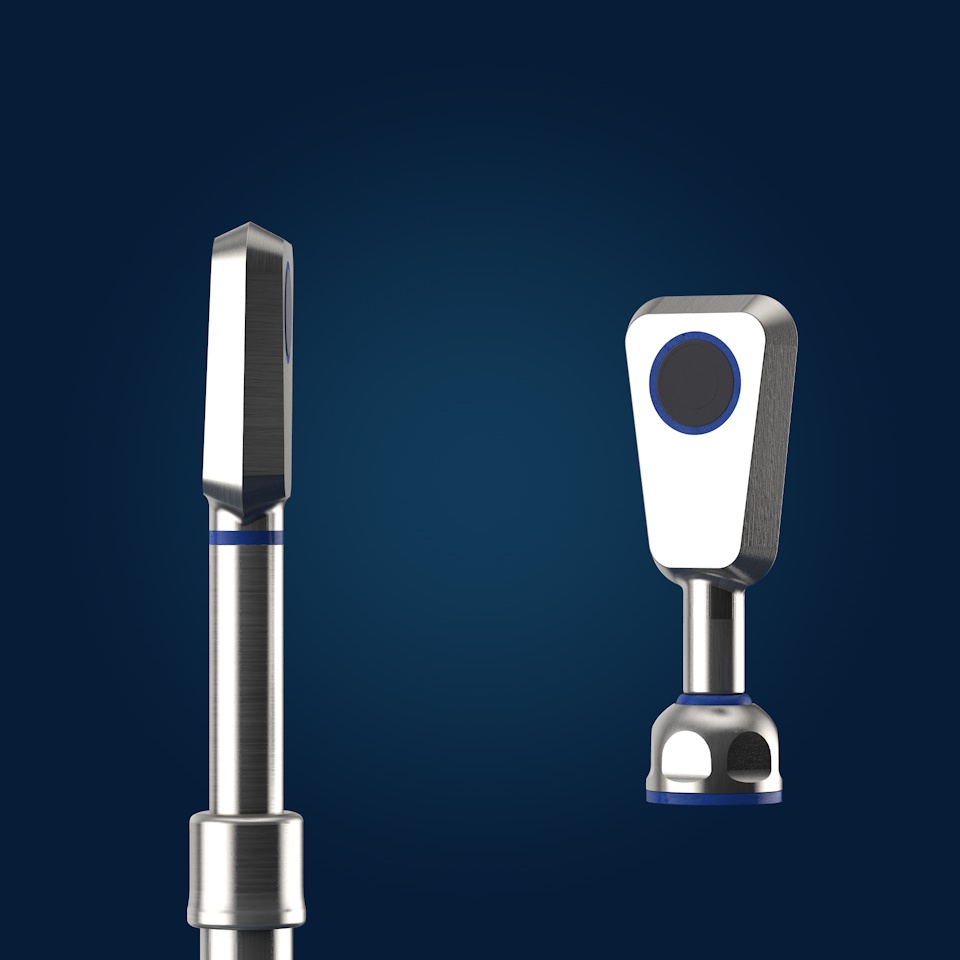

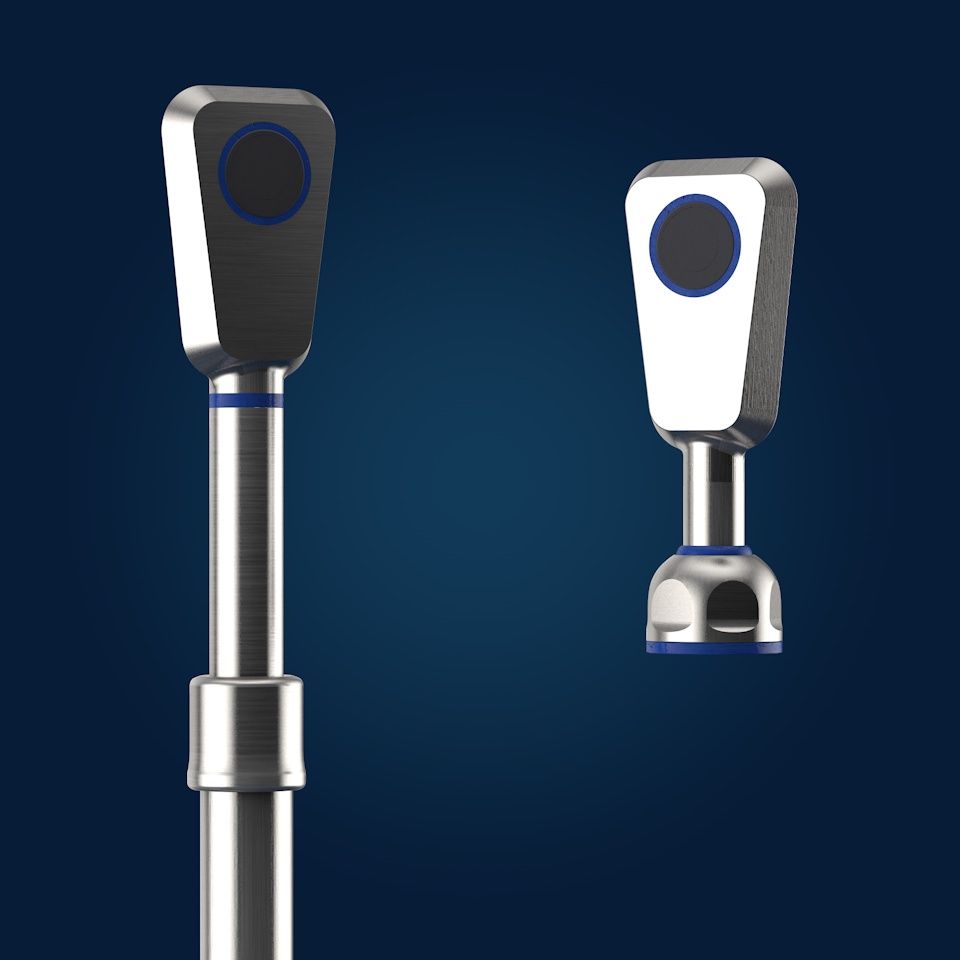

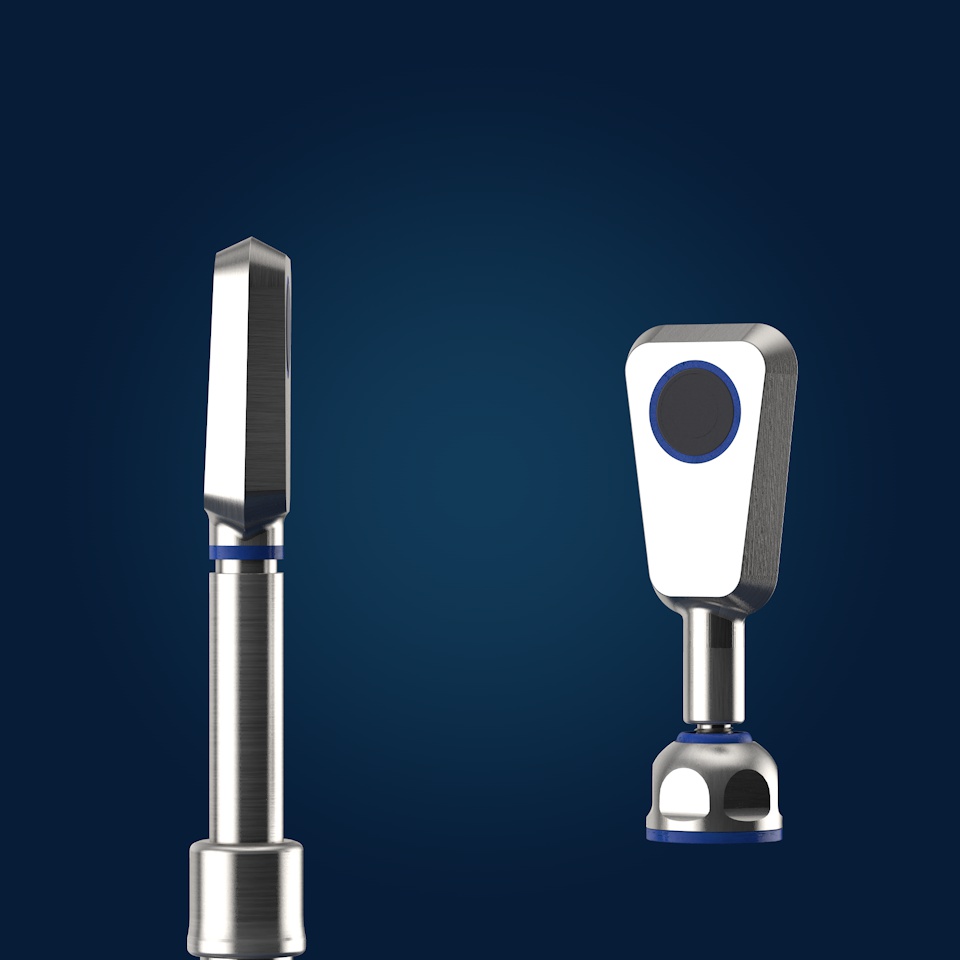

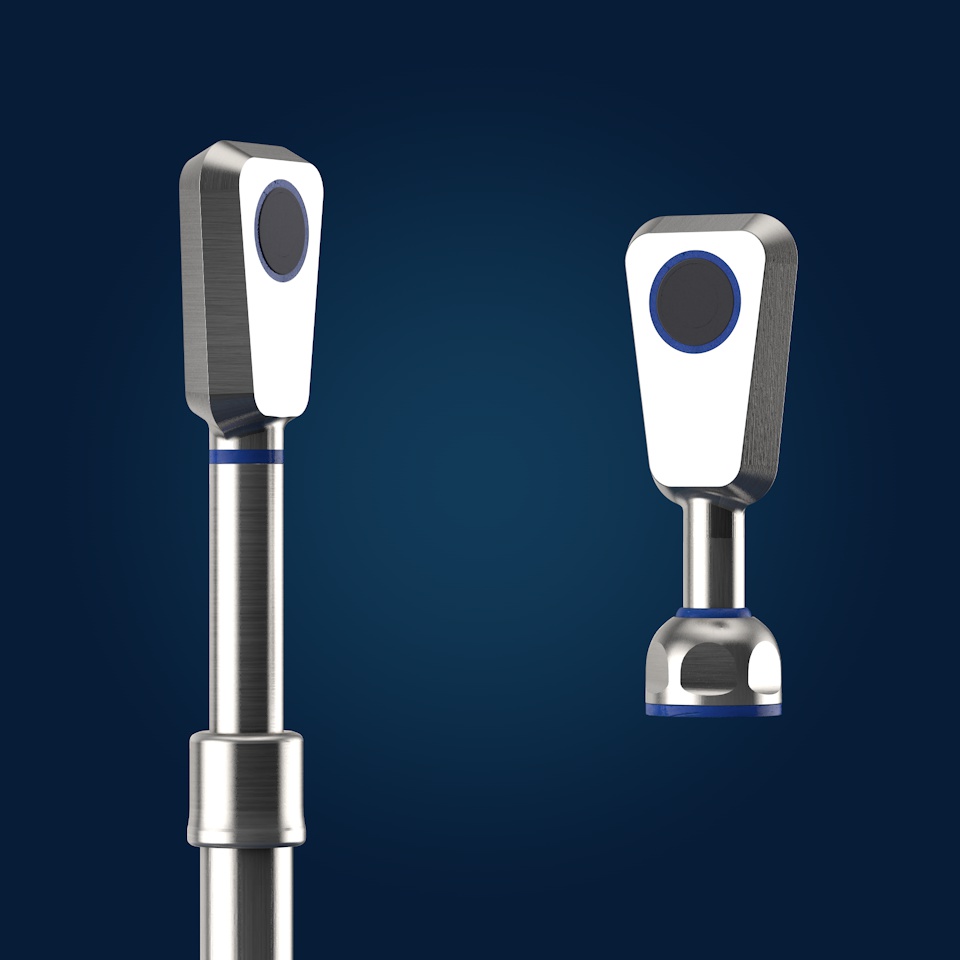

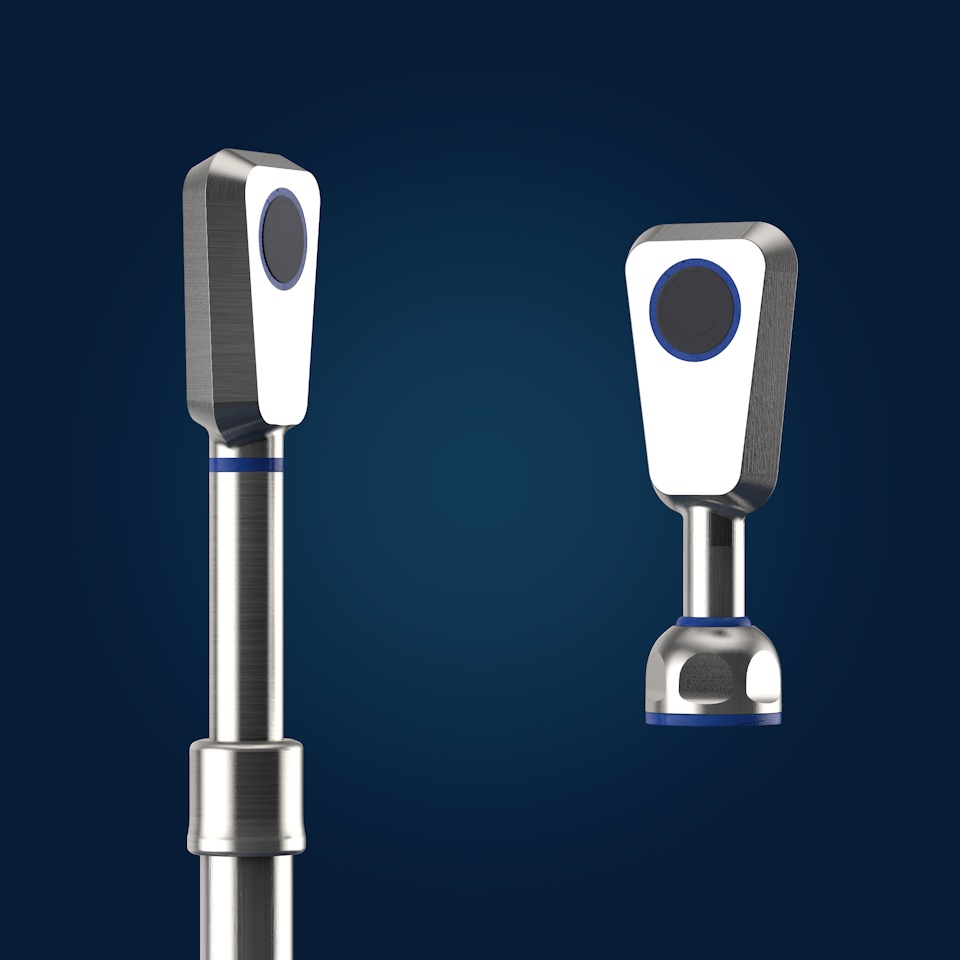

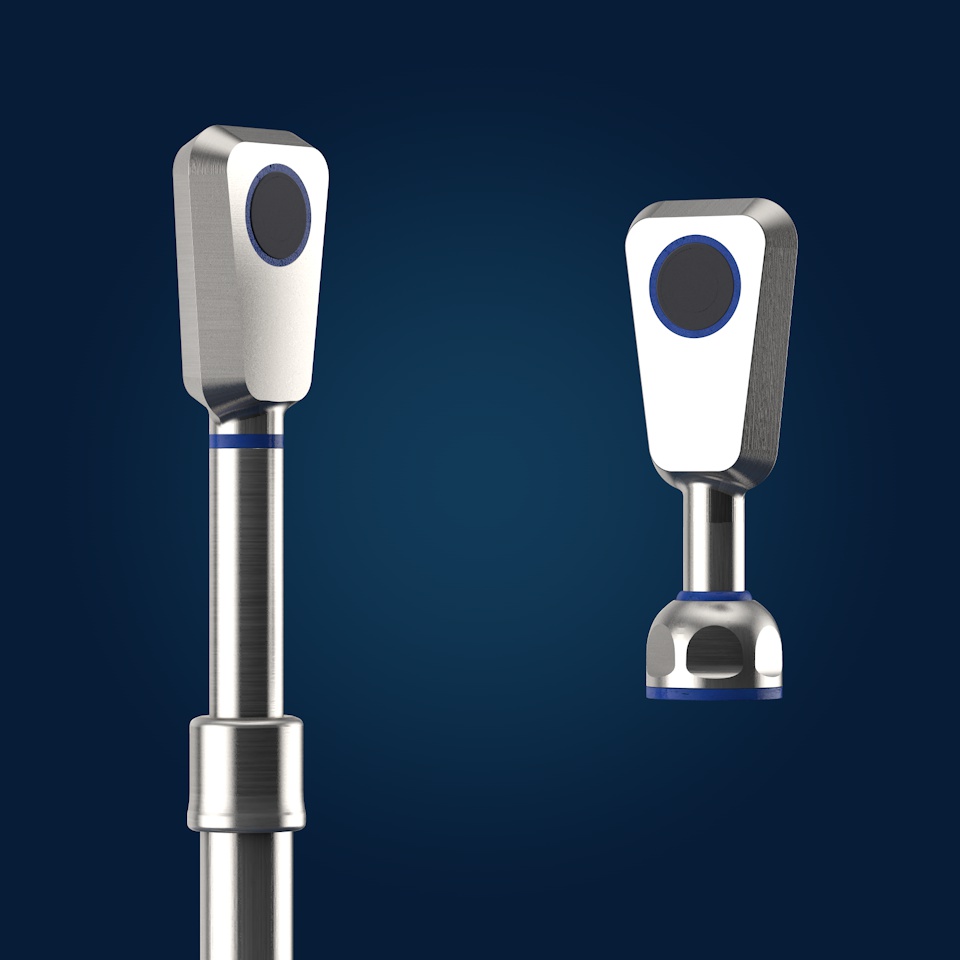

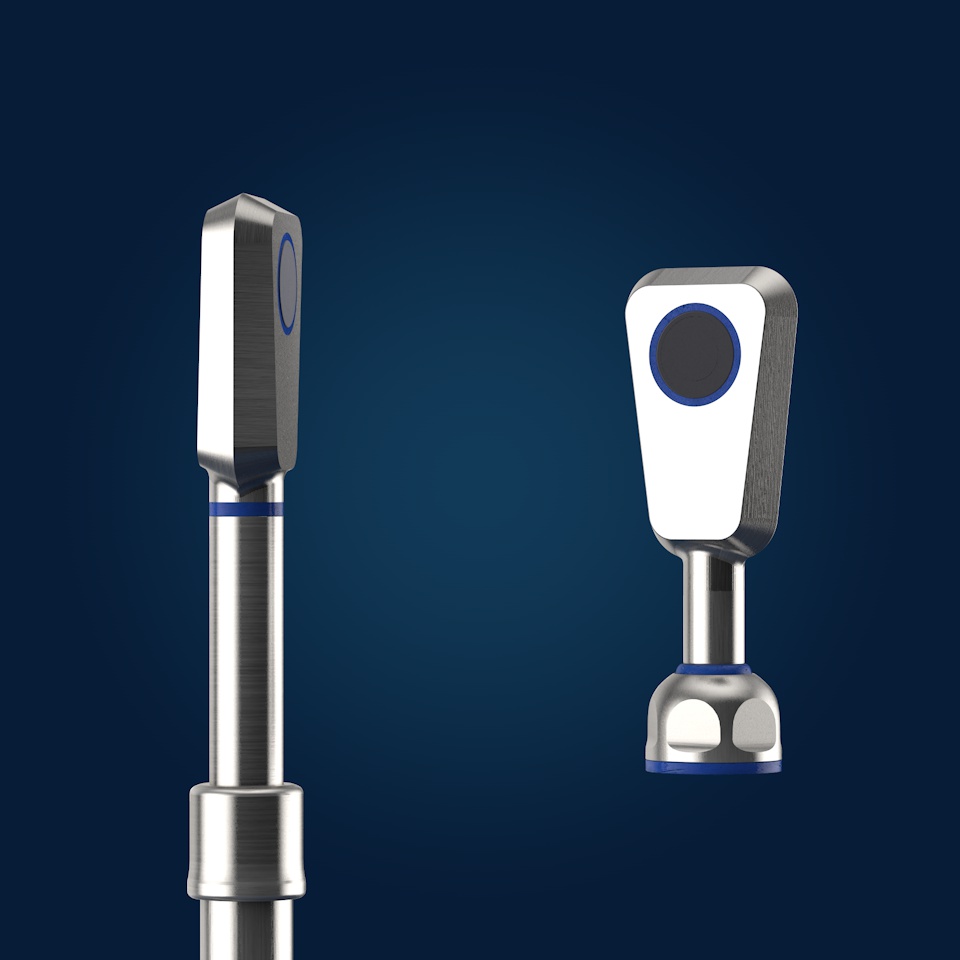

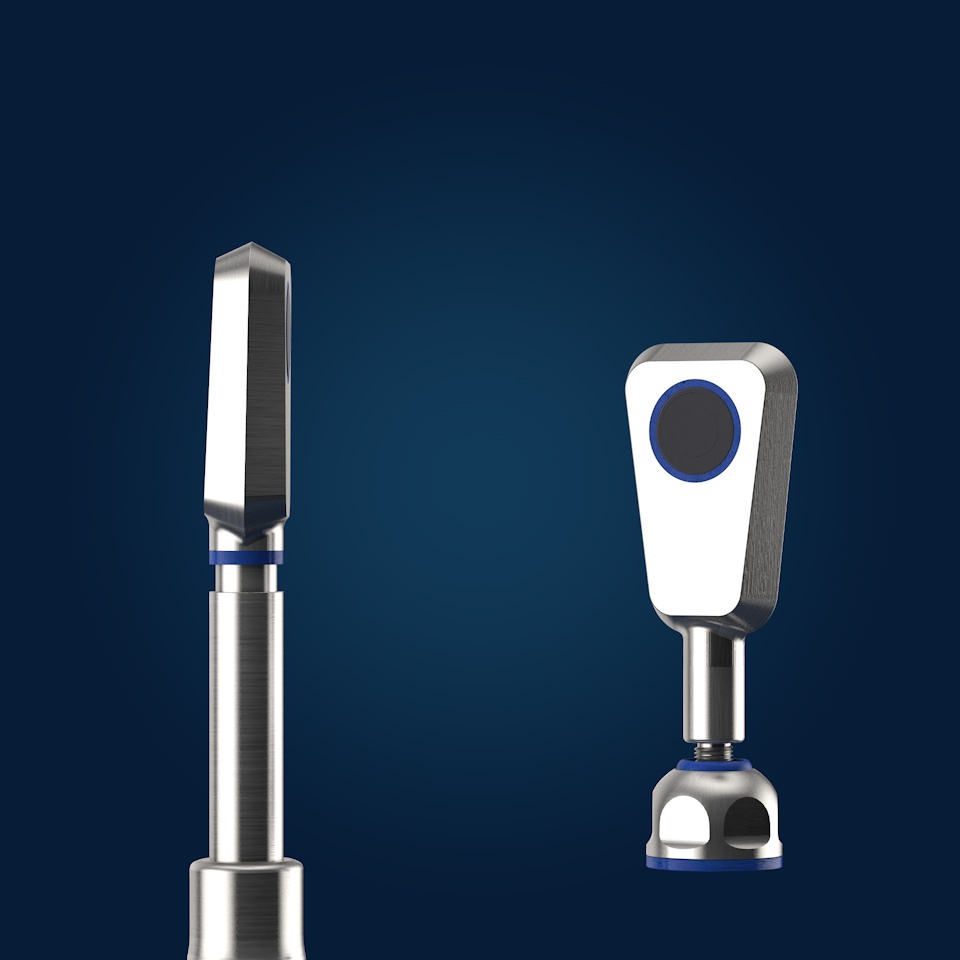

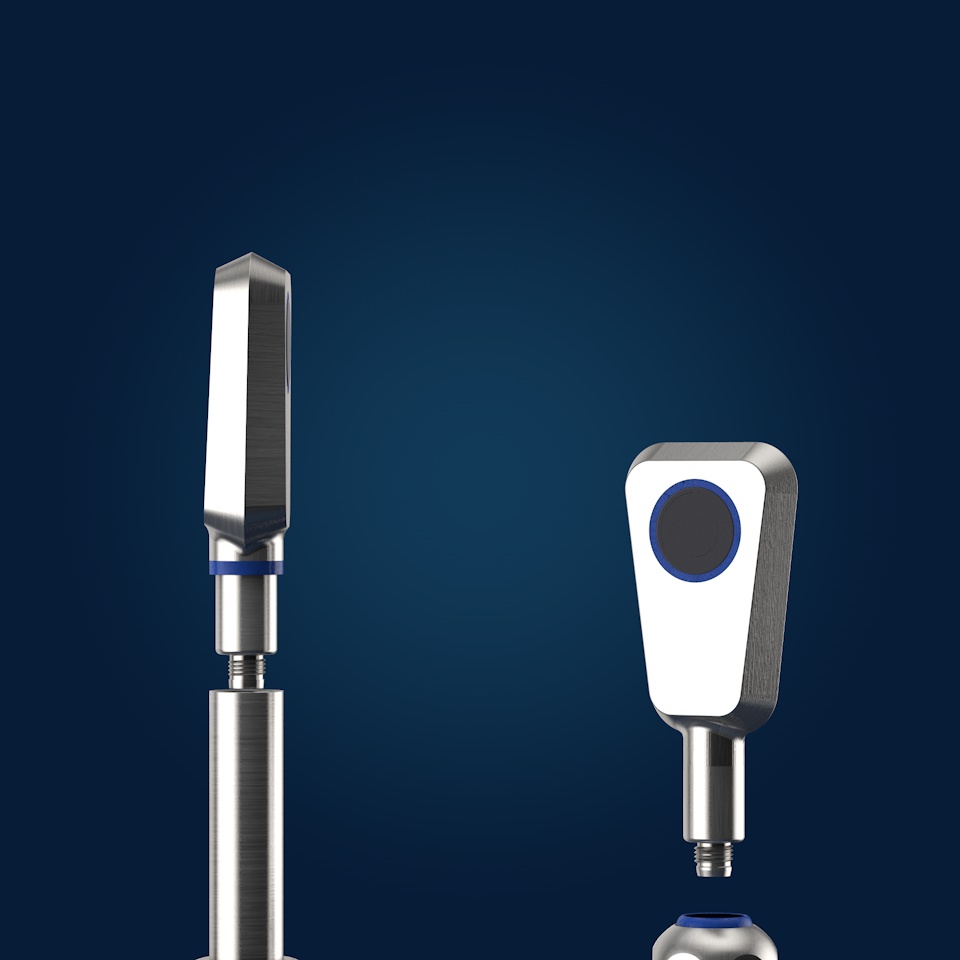

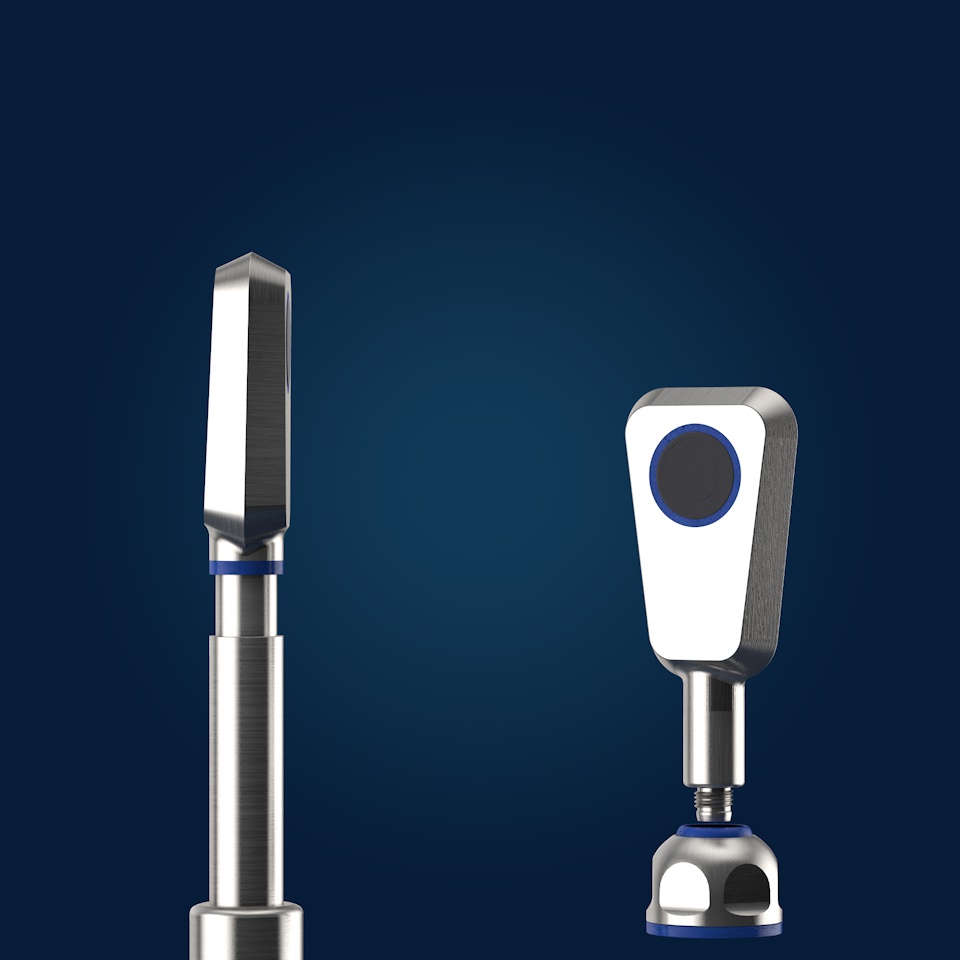

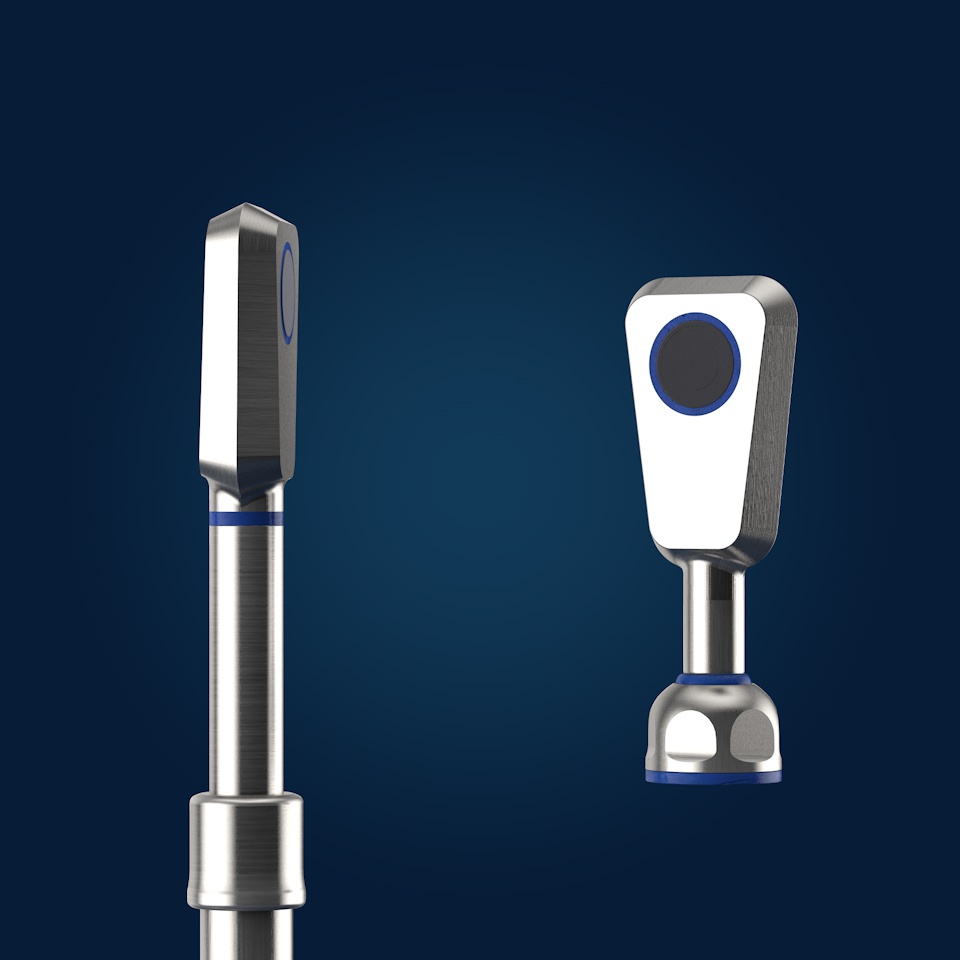

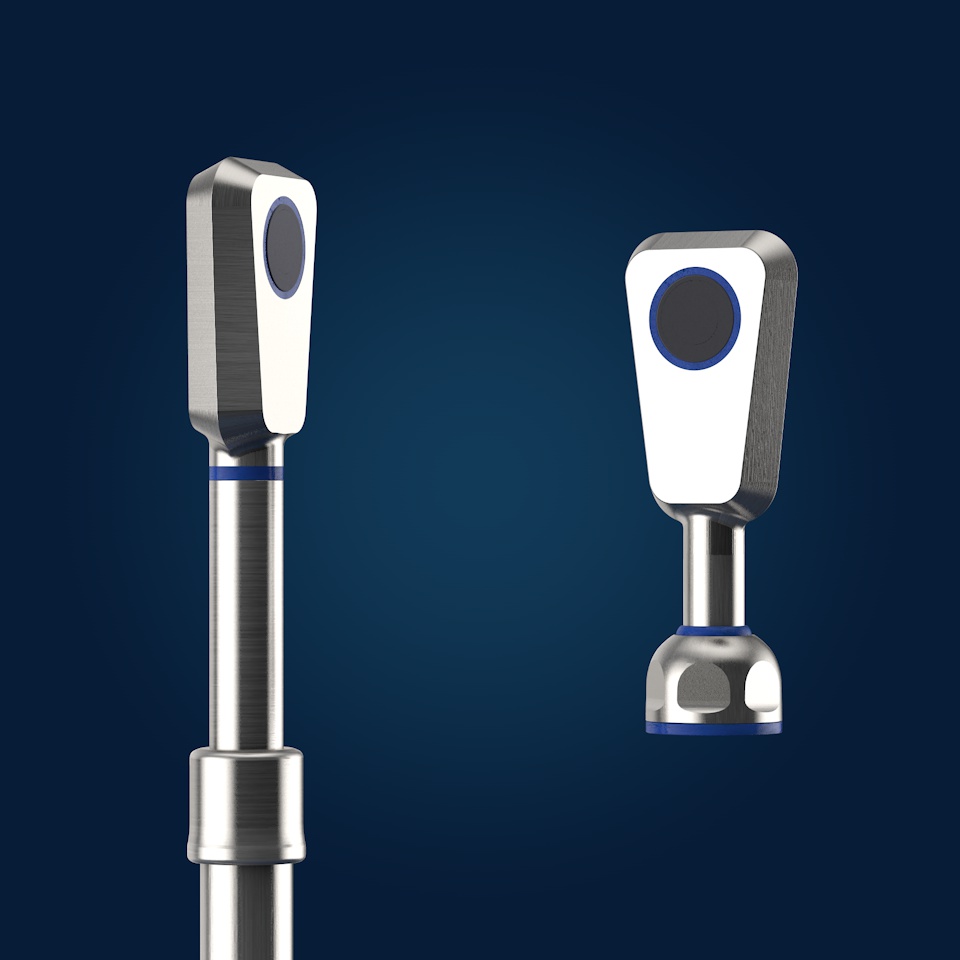

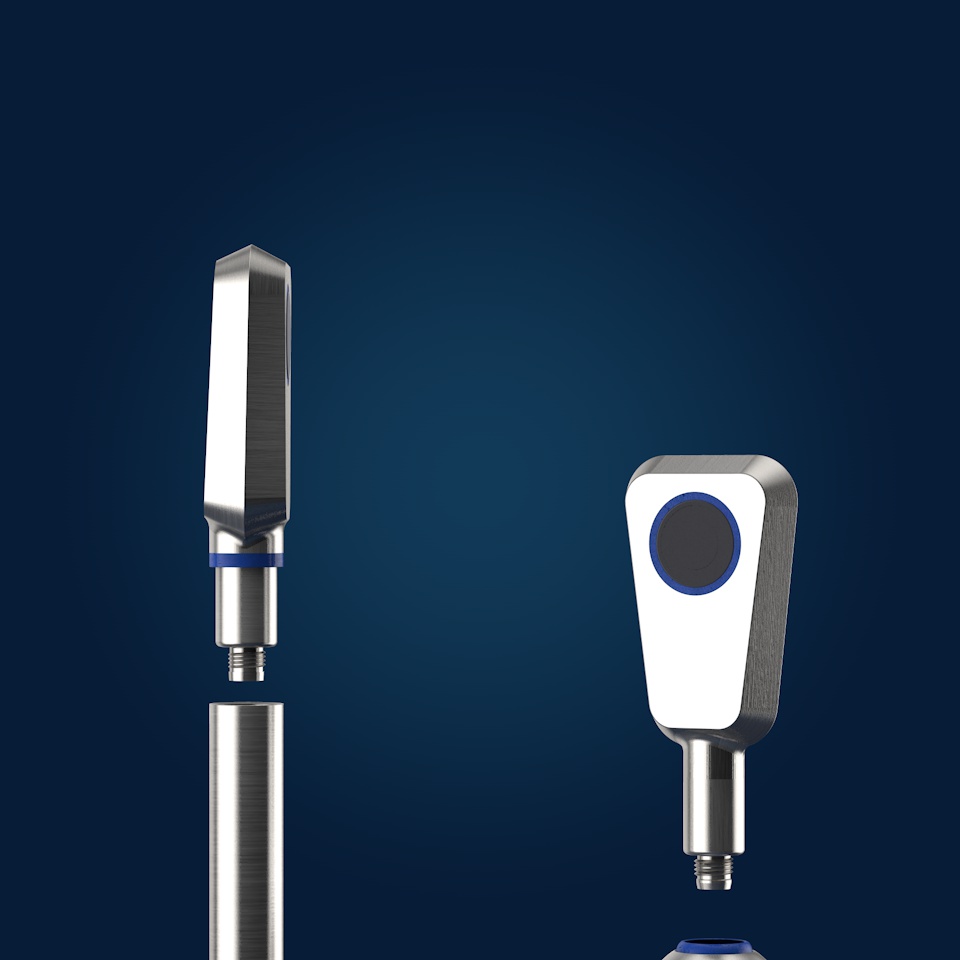

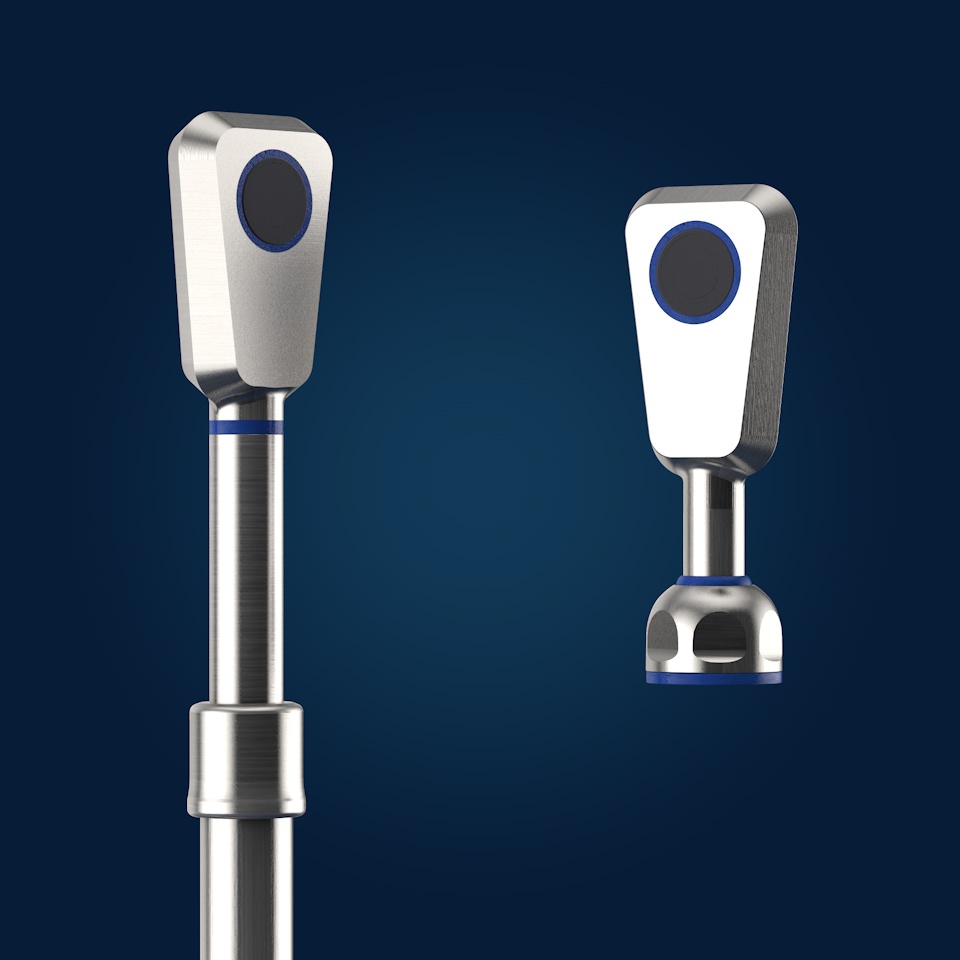

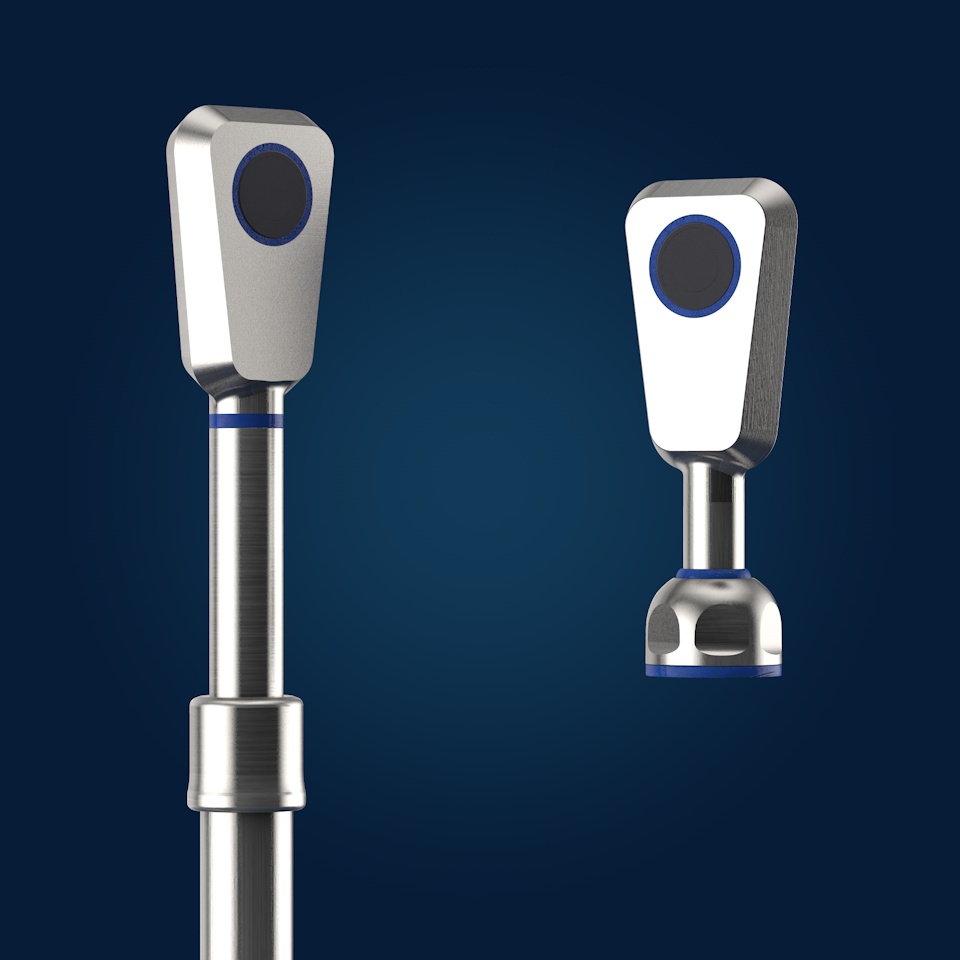

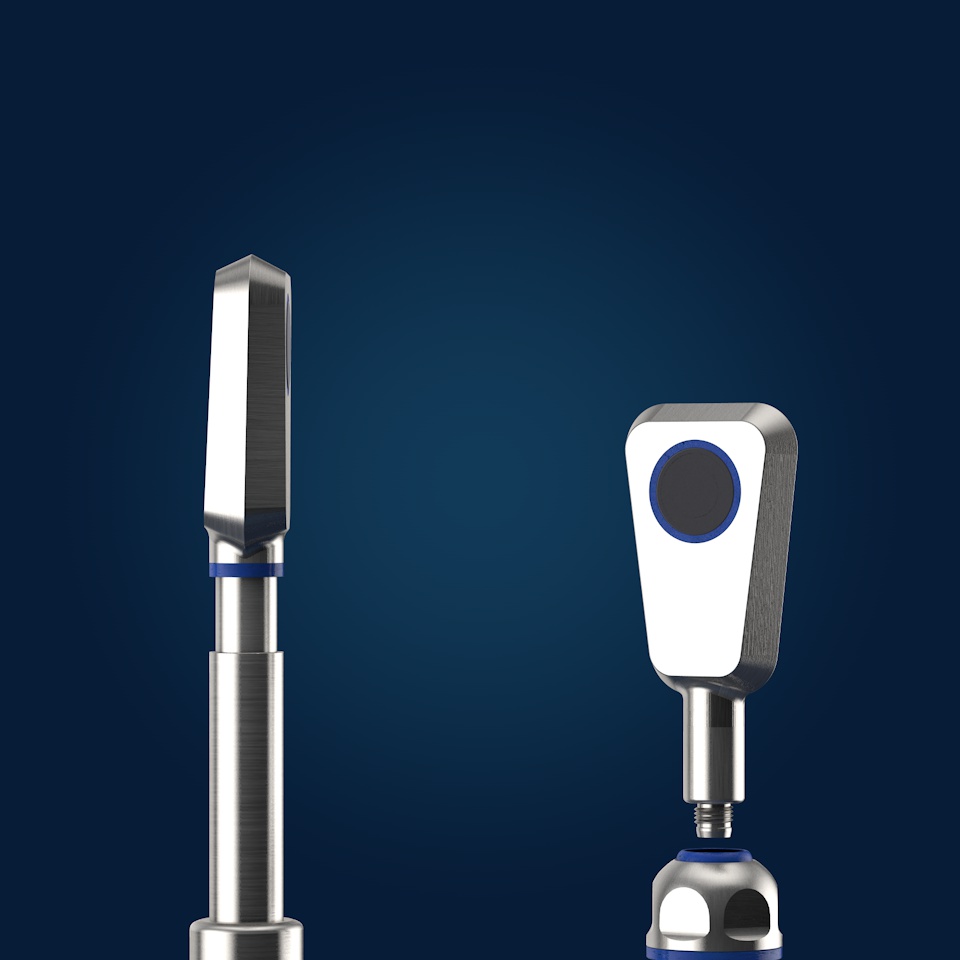

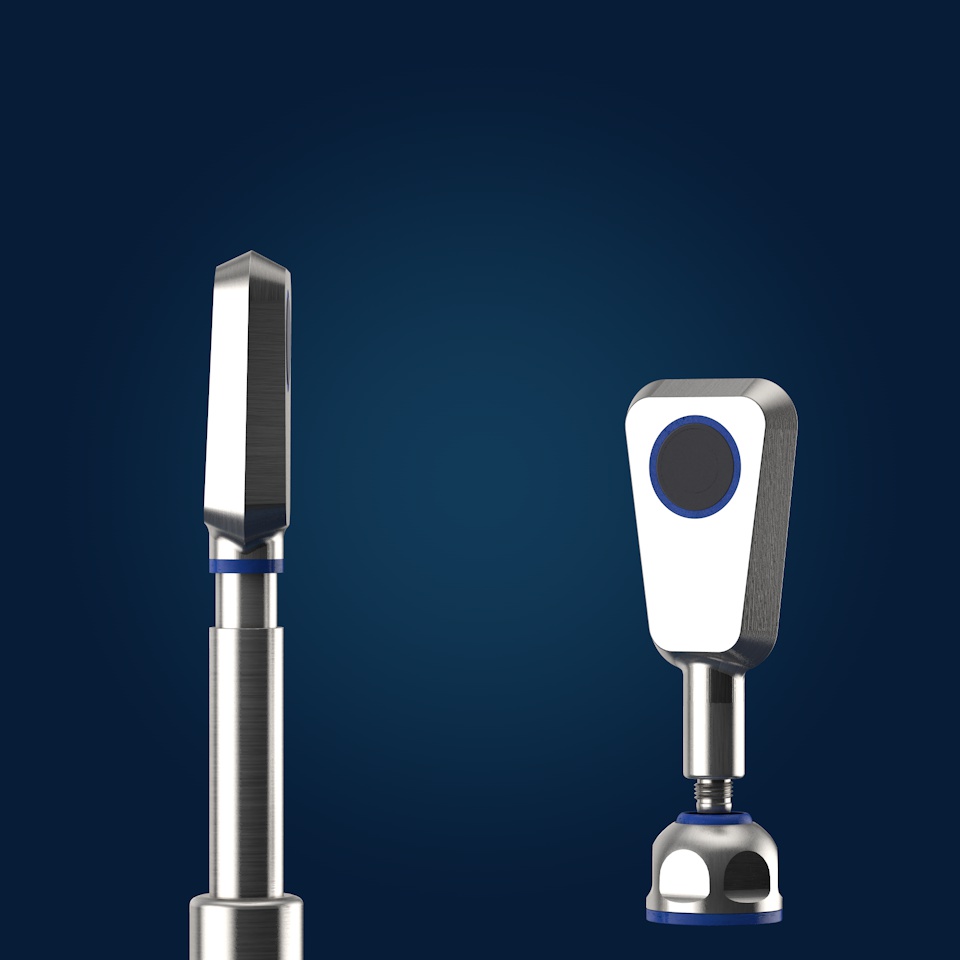

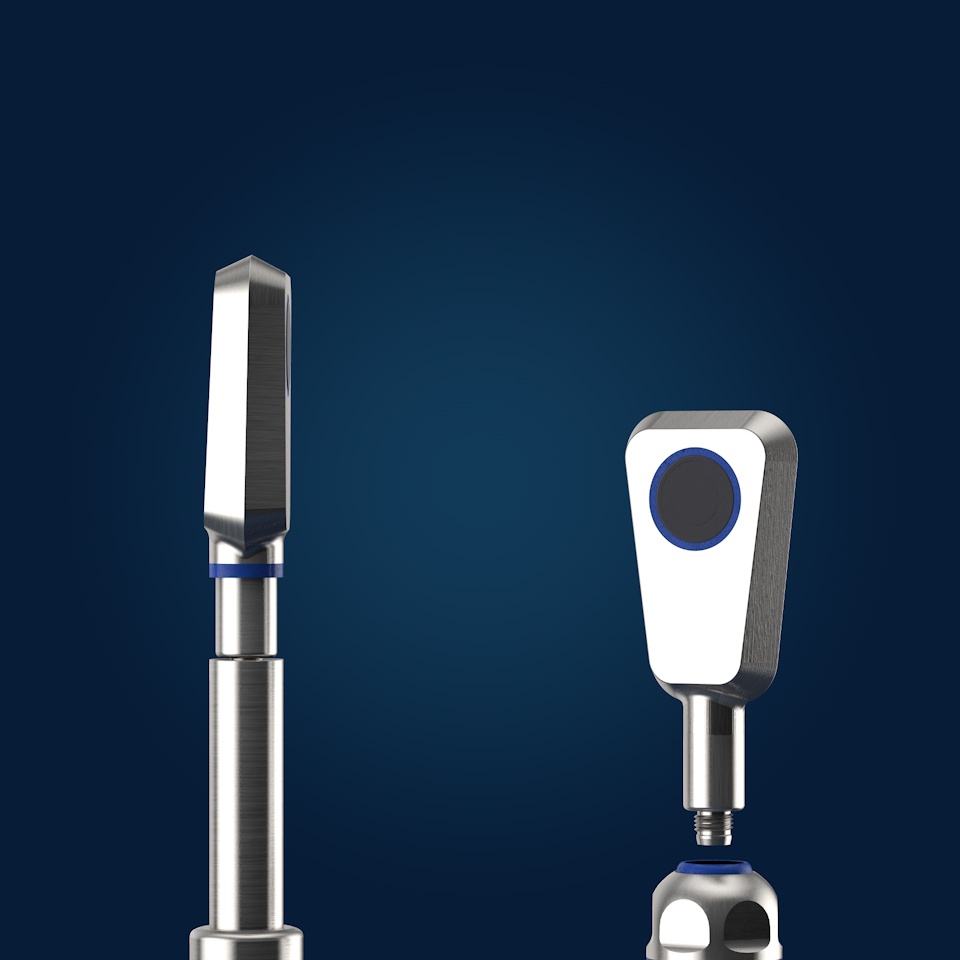

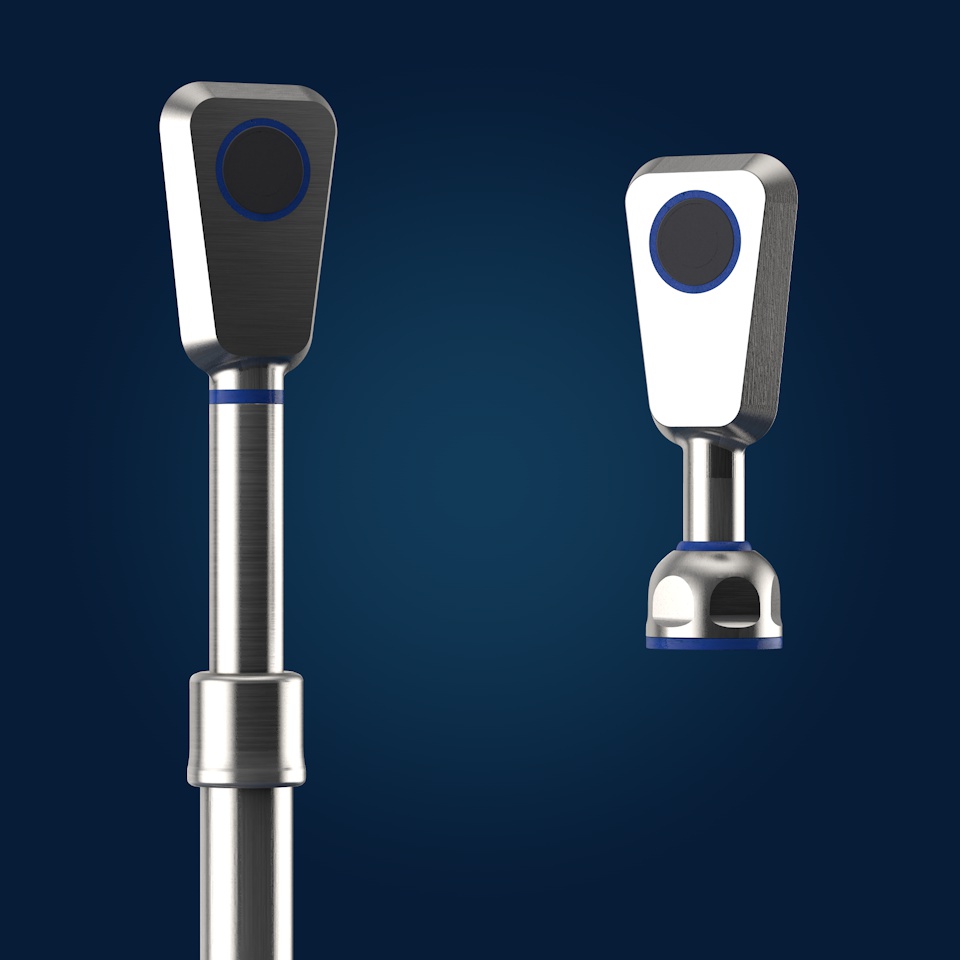

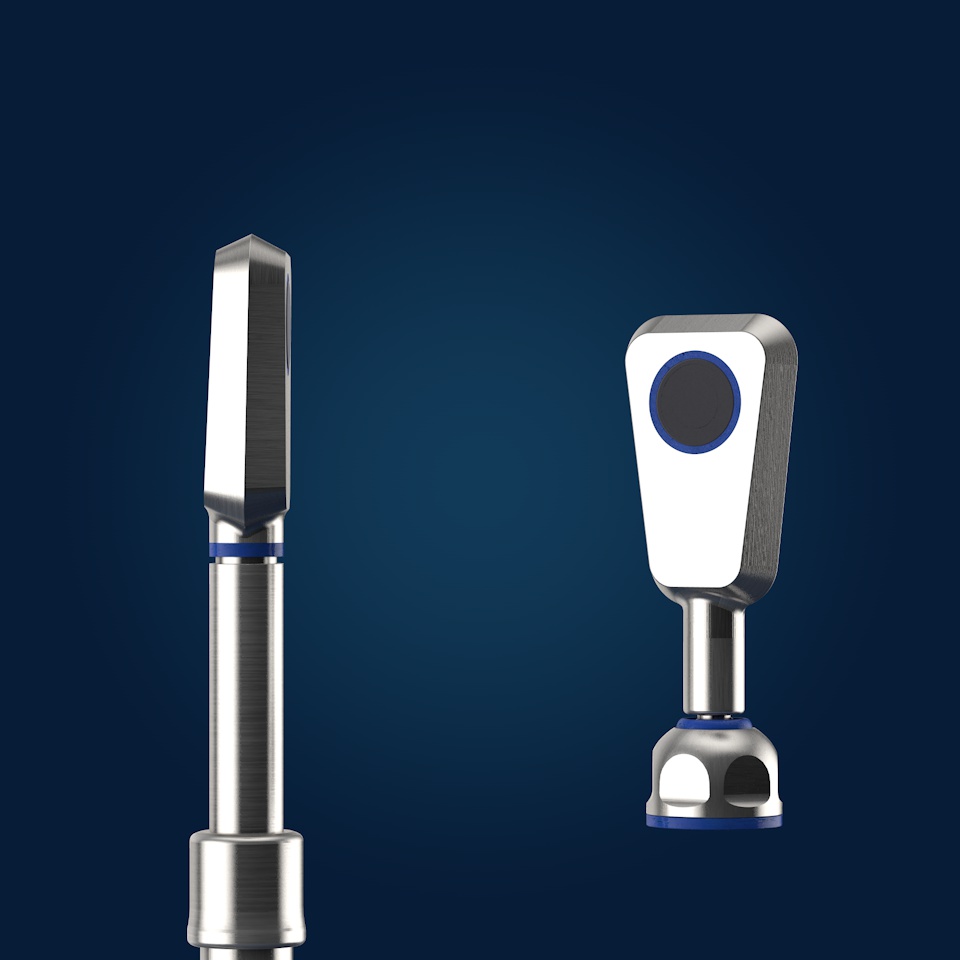

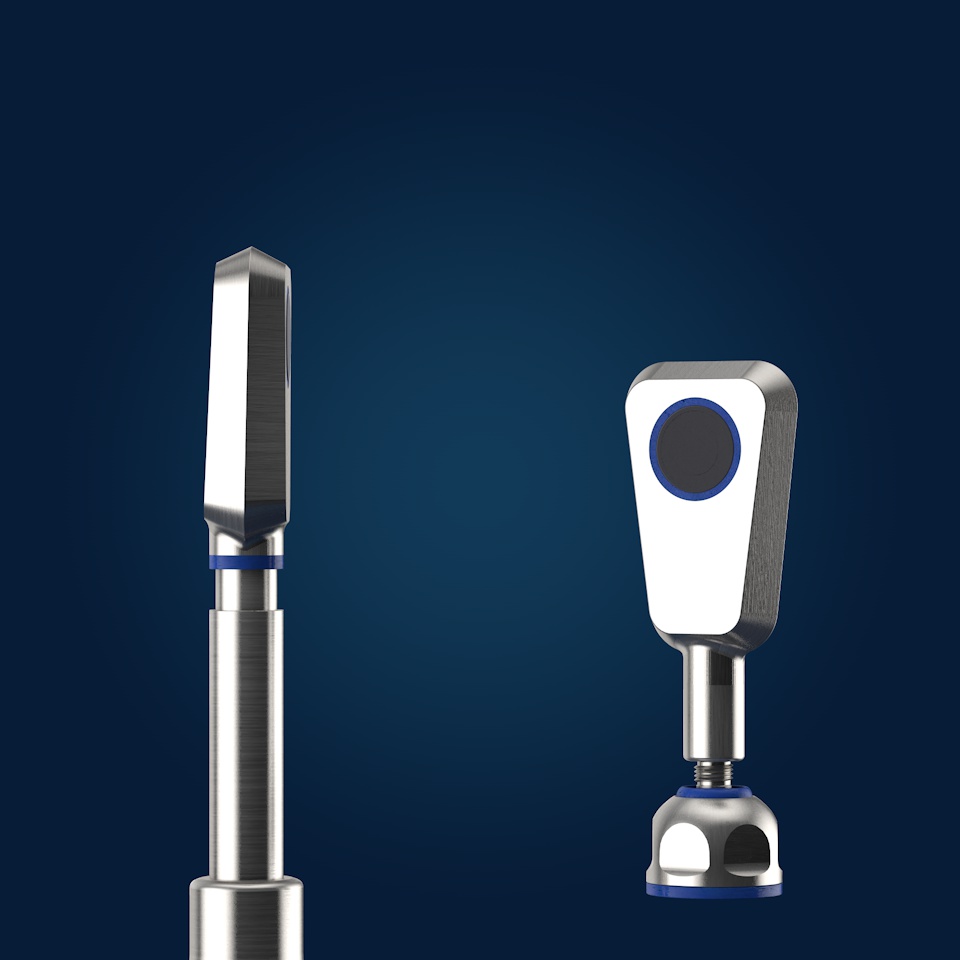

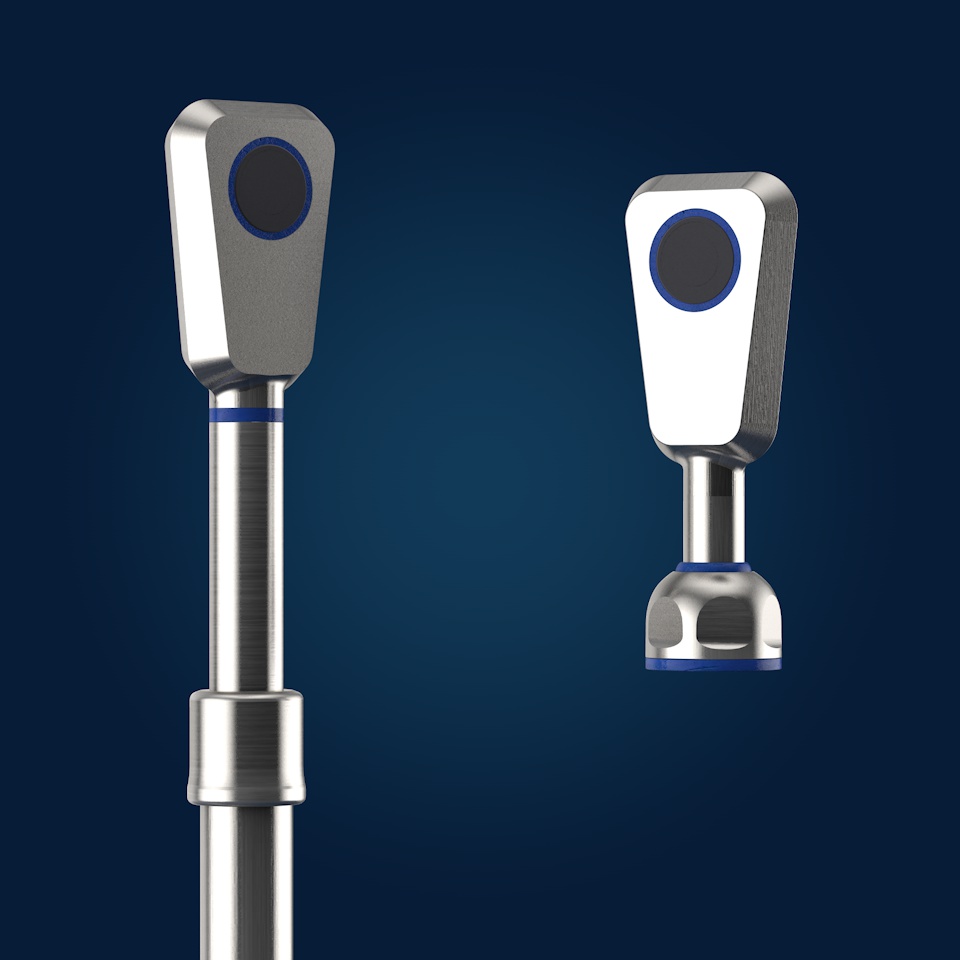

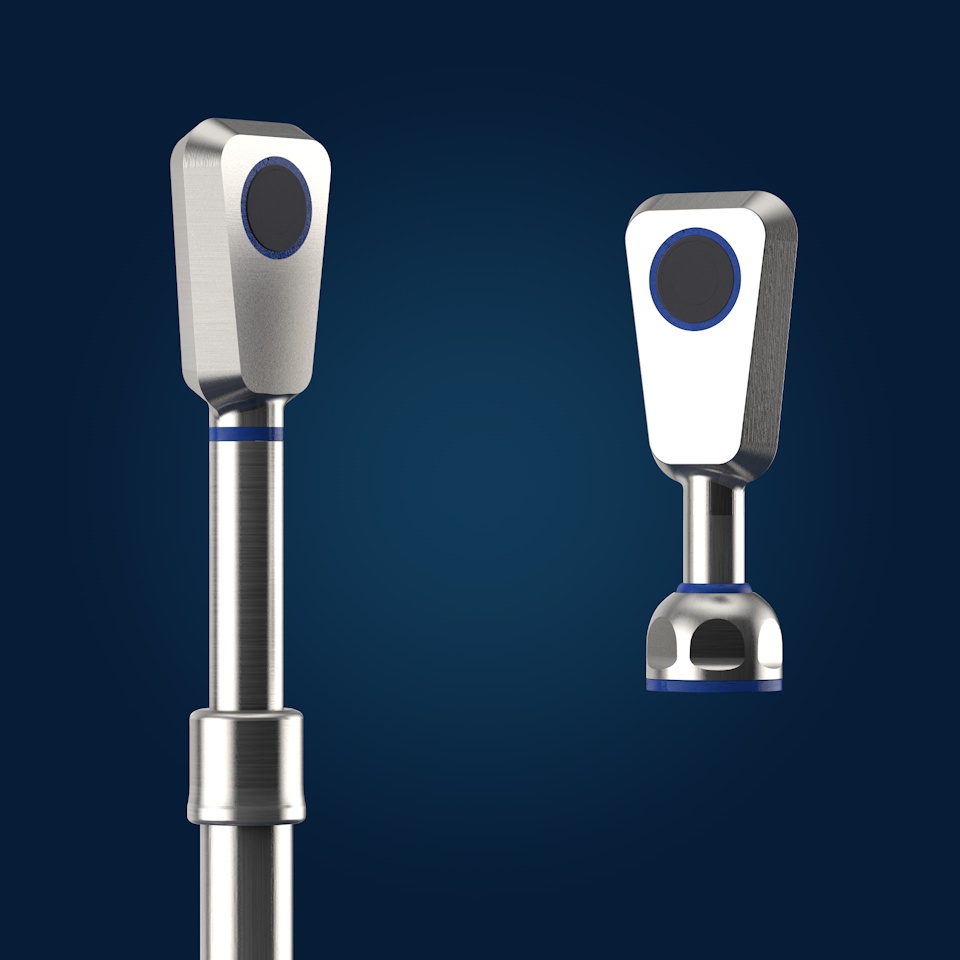

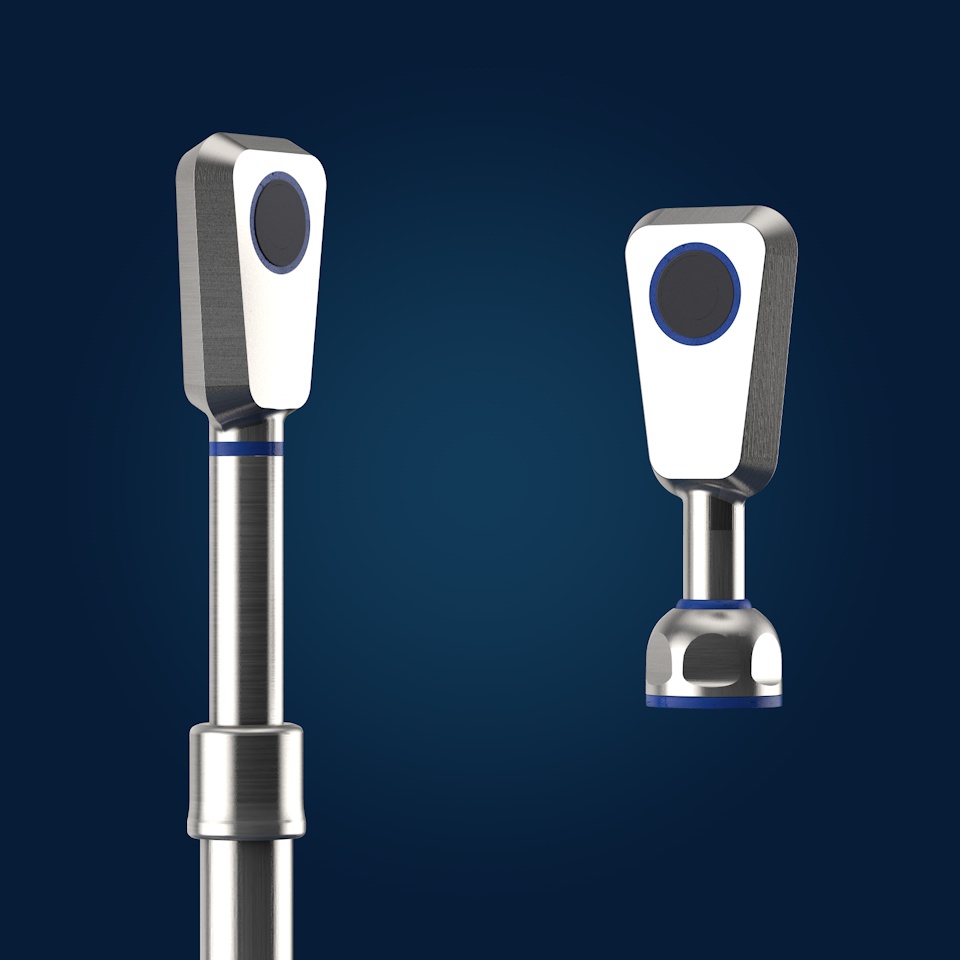

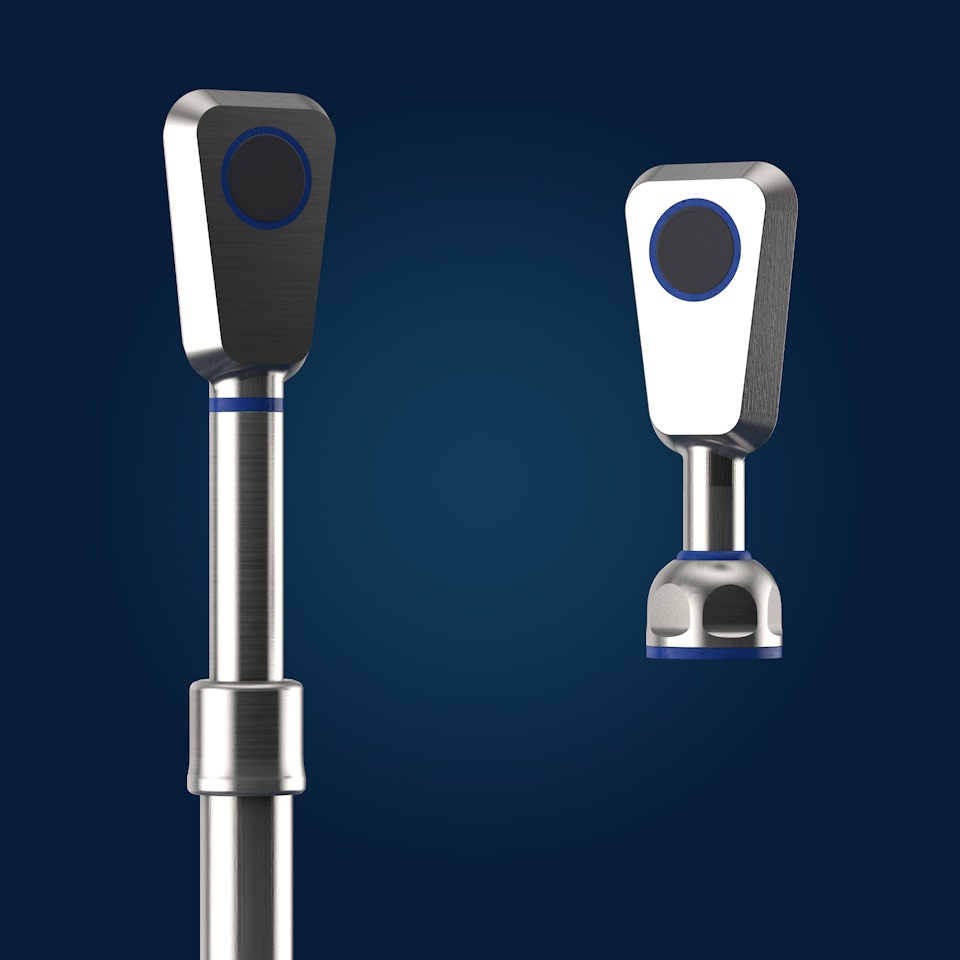

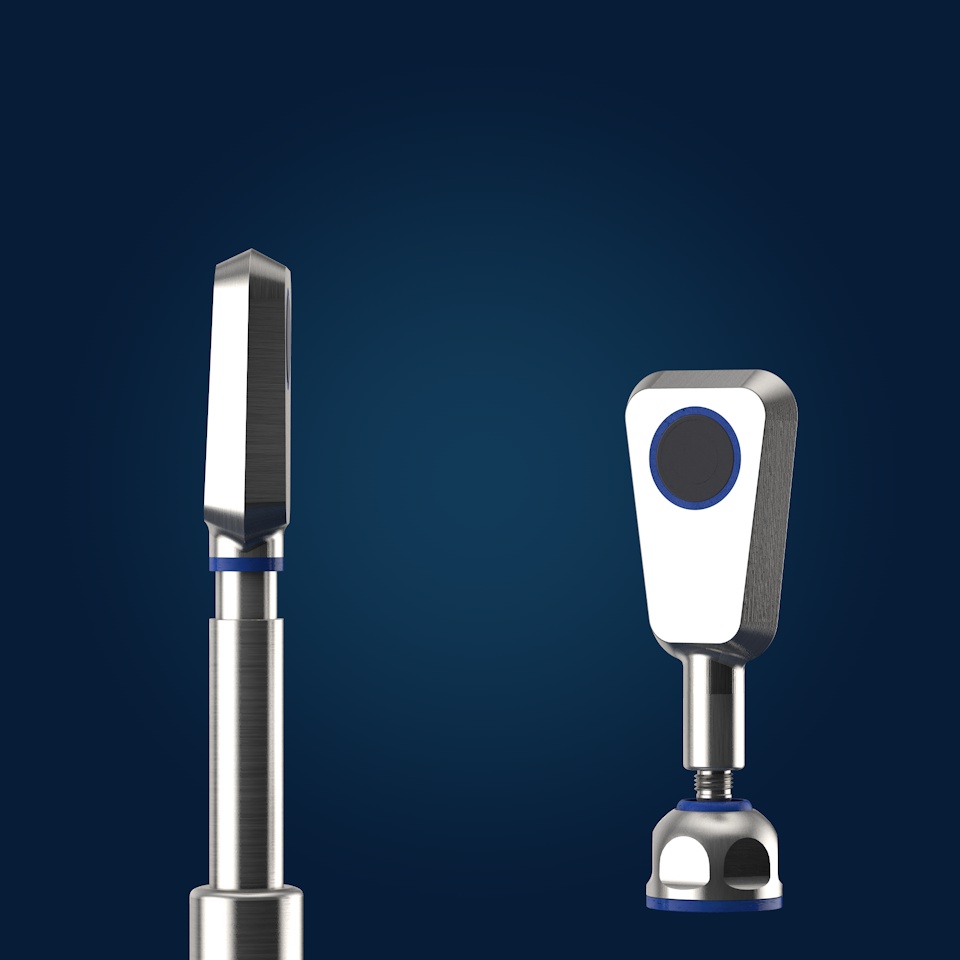

TWO AVAILABLE HOUSINGS

D12 adapter shaft

D12 bayonet catch

MAXIMUM FLEXIBILITY

D12 adapter shaft

Outputs
0.15 m
0.25 m
0.35 m
1.0 m

1 x Push-pull switching output
with IO link

pms-15/CF/A1

pms-25/CF/A1

pms-35/CF/A1

pms-100/CF/A1

1 x 0 – 10 V
1 x 4 – 20 mA

pms-15/CU/A1
pms-15/CI/A1

pms-25/CU/A1
pms-25/CI/A1

pms-35/CU/A1
pms-35/CI/A1

pms-100/CU/A1
pms-100/CI/A1

D12 bayonet catch

Outputs
0.15 m
0.25 m
0.35 m
1.0 m

1 x Push-pull switching output
with IO link

pms-15/CF/B1

pms-25/CF/B1

pms-35/CF/B1

pms-100/CF/B1

1 x 0 – 10 V
1 x 4 – 20 mA

pms-15/CU/B1
pms-15/CI/B1

pms-25/CU/B1
pms-25/CI/B1

pms-35/CU/B1
pms-35/CI/B1

pms-100/CU/B1
pms-100/CI/B1

Excellent for use in the foodstuffs and pharma­ceuticals sector.

The compact pms ultrasonic sensor is made of stainless steel and FDA-conform materials.

Ensures high resistance to cleaning agents in areas coming into contact with products in the foodstuffs, beverages and pharma­ceuticals industry.

The innovative hygiene design was designed in accordance with EHEDG guidelines. Certification has been applied for.

Versatile applications

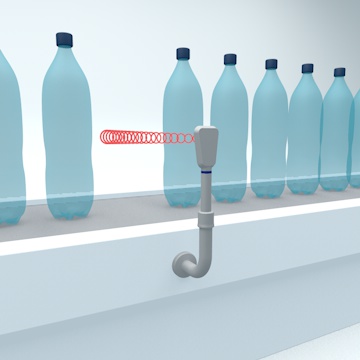

Beverage industry: The pms ultrasonic sensor detects glass and PET bottles in operating mode and withstands the cleaning intervals of a filling machines. For example, pms-25/F... with push-pull switching output for counting bottles.

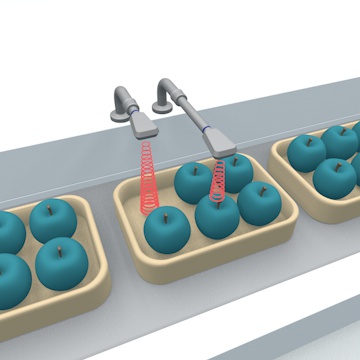

Food industry: Two pms ultrasonic sensors monitor the completeness of apples in packaging boxes. For example, 2 x pms-25/F... each with push-pull switching output for height control.

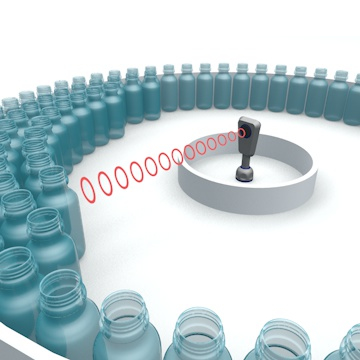

Pharmaceutical industry: On a turntable, a pms sensor controls the volume flow of glass vials before the filling line. For example, pms-35/U... with voltage output 0-10 V.
