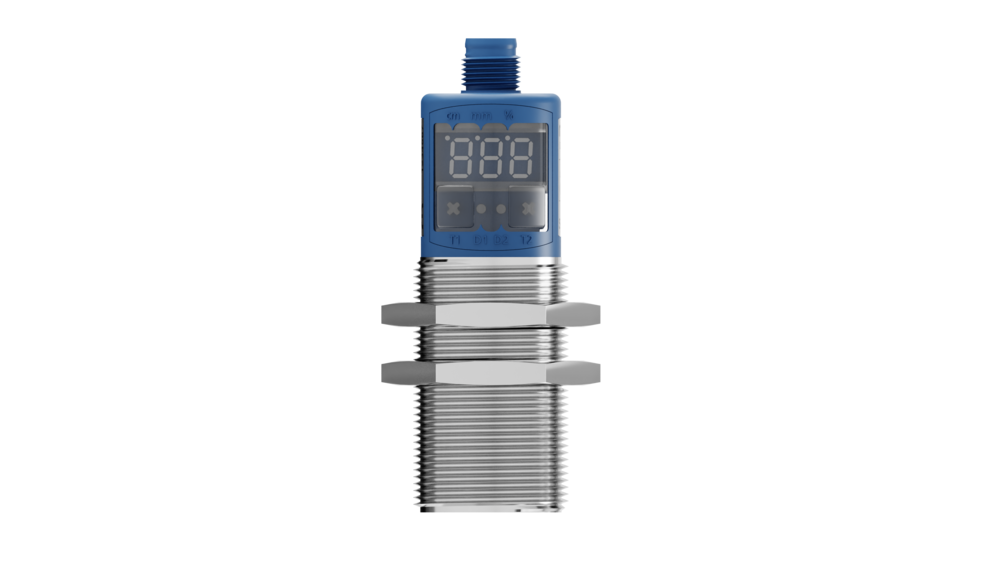

SyncBox1

센서 비교를 위해 기억

관심 목록 0

다운로드

온라인 카탈로그로서의 페이지 내용

PDF 형식의 센서 다운로드

디자인M30 실린더형

작동 모드/기본 기능액세서리

전기적인 데이터

동작 전압 U_B9 - 30 V d.c., 역결선보호

전압 변동± 10 %

무부하 소비전류≤ 25 mA

연결 타입5-핀 M12 규격 플러그

출력

출력 1동기화 출력 npn: I_최대 = 200 mA (-U_B+2V)

출력 2동기화 출력 npn: I_최대 = 200 mA (-U_B+2V)

입력

입력 1컨트롤 입력

하우징

재질황동 슬리브, 니켈 도금, 프라스틱 부분 , PBT

EN60529에 따르는 보호등급IP 67

동작온도-20°C to +70°C

보관 온도-40°C to +85°C

무게110 g

기술 특징/ 특성

제어2 푸쉬 버튼 + LED 디스플레이 (터치컨트롤)

세팅을 위한 범위터치 콘트롤

표시기3-digit LED 디스플레이, 2 x 3색상의 LED

액세서리

분리가능 액세서리 KST4A-2/M12
KST4A-5/M12
KST4G-10/M12
KST4G-2/M12
KST4G-30/M12
KST4G-5/M12
KST5A-2/M12
KST5A-5/M12
KST5G-10/M12
KST5G-2/M12

분리가능 액세서리 For the external synchronization of more than 10 mic+, mic, crm+, cube and lcs+ sensors. The SyncBox1 allows synchronization of up to 160 sensors.
