pms-35/CF/A1
Downloads
Pagina-inhoud als online catalogus
Documentatie
CAD-gegevens
Goedkeuringen en certificaten
IO-Link
-
1 x Push-Pull
-
600 mm
70 - 600 mm
Innovative housing design in washdown
IO-Link
naderingsschakelaar/reflexsensor
reflectiebarrière
venstermodus
naderingsschakelaar/reflexsensor
reflectiebarrière
venstermodus
hohe Chemiebeständigkeit
Edelstahlausführung
IO-Link
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
IO-Link
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Ultrasoon-specifiek
echo-looptijdmeting
400 kHz
70 mm
350 mm
600 mm
0,10 mm
± 0,15 %
± 1 % (temperatuurdrift intern gecompenseerd)
Elektrische gegevens
10 V tot 30 V DC, ompoolbeveiligd
± 10 %
≤ 40 mA
4-polige, ronde M8-connector
Uitgangen
schakeluitgang
Push-Pull, UB-3 V, -UB+3 V,Imax = 100 mA
Push-Pull, UB-3 V, -UB+3 V,Imax = 100 mA
5 mm
12 Hz
64 ms
< 300 ms
Ingangen
com-ingang
teach-in-ingang
teach-in-ingang
Behuizing
roestvrij staal
met PTFE-folie bekleed, FKM-O-ring
IP 66, IP 67, IP 68
-25° C tot +70° C
-40° C tot +85° C
85
140 g
Uitrusting/Bijzonderheden
ja
com-ingang
Teach-in via com input on pin 2
LCA-2 with LinkControl
IO-Link
LCA-2 with LinkControl
IO-Link
hohe Chemiebeständigkeit
Edelstahlausführung
IO-Link
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
IO-Link
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
IO-Link
pms-35/CF/A1
35200
ja
COM2 (38,4 kBaud)
16 ms
4 Byte
Bit 0: Q1 schakeltoestand; Bit 8-15: scale (Int. 8); Bit 16-31: measured value (Int. 16)
Identification, measuring configuration, switched output, filter, temperature compensation, operation
SP1 Teach-in, SP2 Teach-in, factory settings
ja
IODD Versie 1.1
Toebehoren

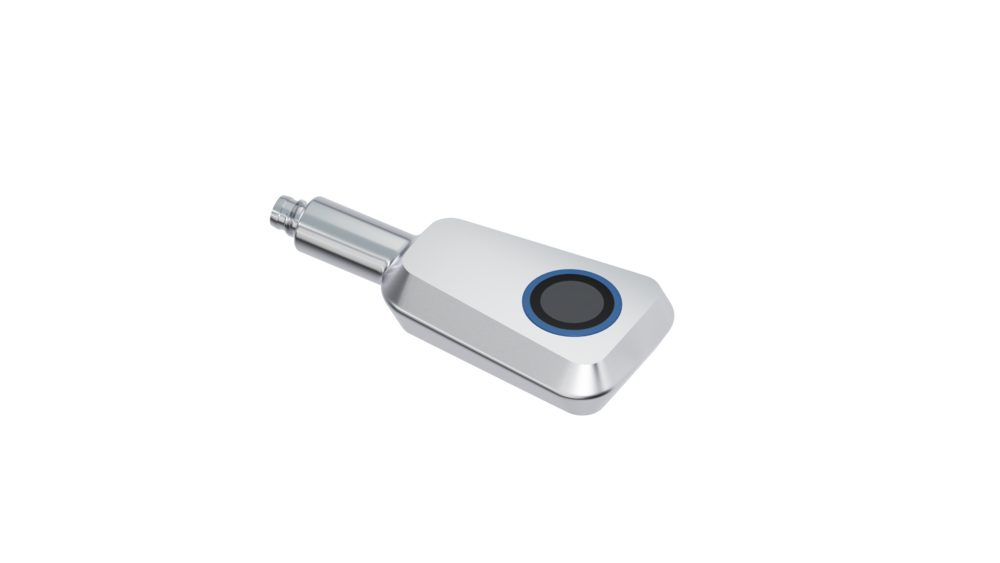

The pms ultrasonic sensor in stainless steel housing is designed according to EHEDG guidelines.
