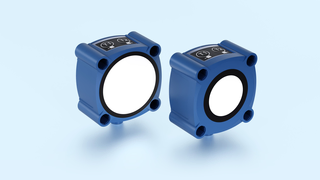

lcs+ 超声波传感器

Compact ultrasonic sensor with long range

3.4 m - 6.0 m

lcs 超声波传感器

Cuboidal housing with lateral sound exit

0.25 m - 1.3 m

ucs 超声波传感器

Solid metal housing, compatible with opto-sensors

0.15 m - 0.24 m

zws 超声波传感器

Sensor in miniature housing with SoundPipe

0.15 m - 0.70 m

sks 超声波传感器

Our smallest ultrasonic sensor with Teach-in button

0.15 m

耐化学腐蚀

pico+TF 超声波传感器

Protected by PTFEE membrane

0.15 m - 1.0 m

crm+ 超声波传感器

Protected by PEEK membrane

0.25 m - 6.0 m

hps+ 超声波传感器

Chemical-resistant and pressure-resistant with a PTFE membrane

0.25 m - 3.4 m

卫生设计

pms 超声波传感器

In a stainless steel housing with a Hygienic Design

0.15 m - 1.0 m

特殊传感器

纠偏传感器

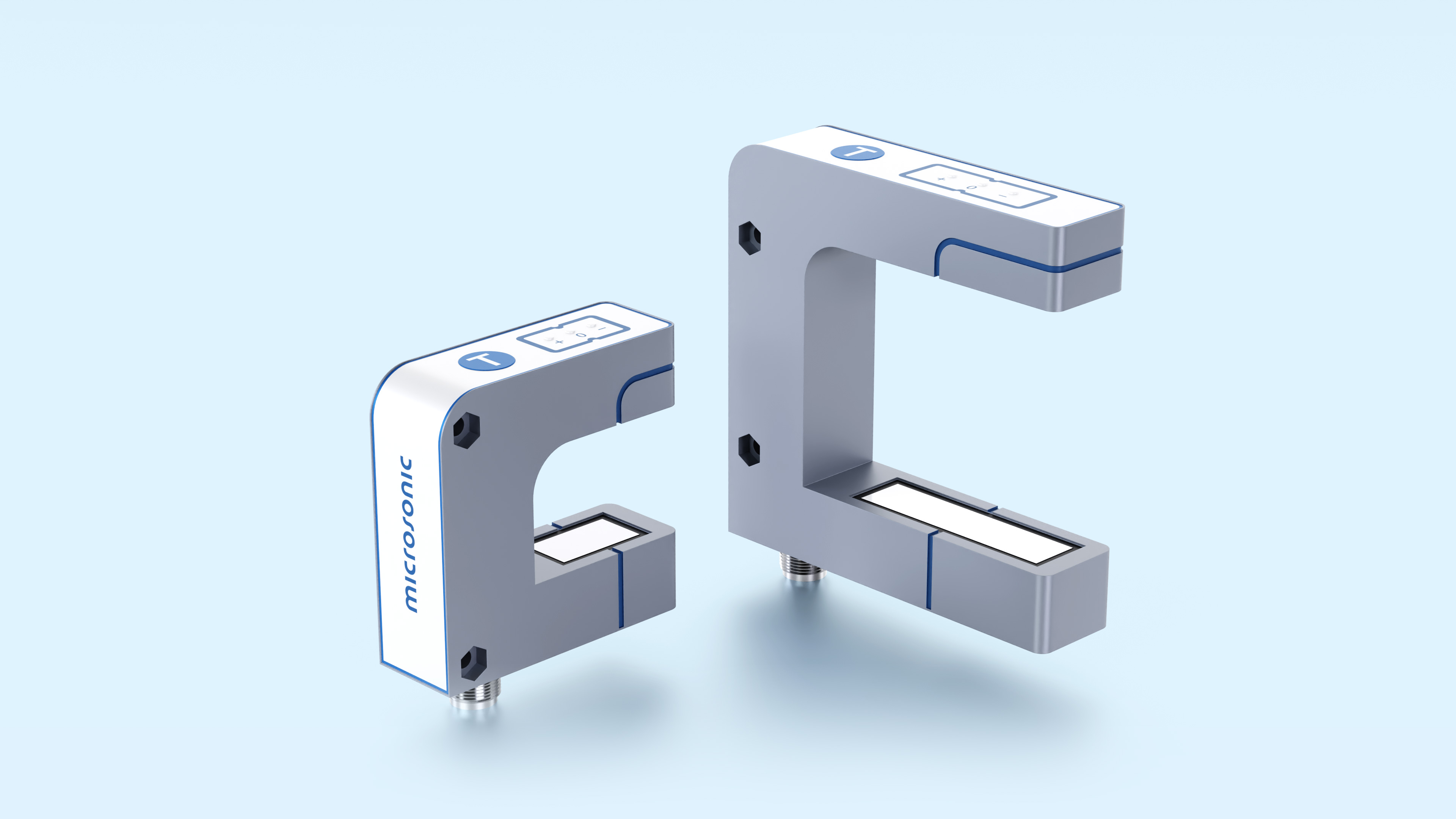

bks+

Ultrasonic web edge sensor with a measuring range of 12 mm or 40 mm

bks

Ultrasonic web edge sensor with a measuring range of 8 mm

超声波双张控制器

dbk+4

Double-sheet cpntrol for identifying missing, single and double sheets

dbk+5

Double-sheet control for identifying missing, single and double sheets in thicker materials

标签/接合点检测传感器

esf+1

The fastest ultrasonic label sensor of its time

esf-1

Label sensor in fork housing

esp-4

Splice sensor with a seperate housing

对射式超声波

ews

Ultrasonic barrier with a high switching frequency

0.15 m - 2.5 m

传感器概览
附件
编程工具

LinkControl-Adapter LCA-2

Convenient configuration of many microsonic sensor families

SyncBox1 mic+

For external synchronisation of mic+ sensors

SyncBox2 zws

For external synchronisation of zws sensors

LinkControl-Adapter LCA-2

Convenient configuration of many microsonic sensor families

SyncBox1 mic+

For external synchronisation of mic+ sensors

SyncBox2 zws

For external synchronisation of zws sensors

LinkControl-Adapter LCA-2

Convenient configuration of many microsonic sensor families

SyncBox1 mic+

For external synchronisation of mic+ sensors

SyncBox2 zws

For external synchronisation of zws sensors

安装配件

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

BF18

Fastening clamp for M18-sensors

BF30

Fastening clamp for M30-sensors

BF-pms/A1

Hygienic screw connection in stainless steel for pms-sensors

MW-ZWS 1

Mounting bracket for zws-70-sensors

MW-ZWS 2

Mounting bracket for zws-7/-15/-24-sensors

MW-ZWS 3

Mounting bracket for zws-7/-15/-24-sensors

MW-LCS 1

Adapter plate for lcs sensors

导向装置

Beam deflector M18

Beam deflector for sensors with M18 threaded sleeve

Beam deflector M30

Beam deflector for sensors with M30 threaded sleeve

SoundPipe zws1

SoundPipe for zws-15 and zws-7 sensors

SoundPipe sks1

SoundPipe for sks ultrasonic sensor, to intensively bundle the sound field

Reduzierstück G1_G1/2

For mounting of hps+-25 sensors

Beam deflector M18

Beam deflector for sensors with M18 threaded sleeve

Beam deflector M30

Beam deflector for sensors with M30 threaded sleeve

SoundPipe zws1

SoundPipe for zws-15 and zws-7 sensors

SoundPipe sks1

SoundPipe for sks ultrasonic sensor, to intensively bundle the sound field

Reduzierstück G1_G1/2

For mounting of hps+-25 sensors

Beam deflector M18

Beam deflector for sensors with M18 threaded sleeve

Beam deflector M30

Beam deflector for sensors with M30 threaded sleeve

SoundPipe zws1

SoundPipe for zws-15 and zws-7 sensors

SoundPipe sks1

SoundPipe for sks ultrasonic sensor, to intensively bundle the sound field

Reduzierstück G1_G1/2

For mounting of hps+-25 sensors

Beam deflector M18

Beam deflector for sensors with M18 threaded sleeve

Beam deflector M30

Beam deflector for sensors with M30 threaded sleeve

SoundPipe zws1

SoundPipe for zws-15 and zws-7 sensors

SoundPipe sks1

SoundPipe for sks ultrasonic sensor, to intensively bundle the sound field

Reduzierstück G1_G1/2

For mounting of hps+-25 sensors

Beam deflector M18

Beam deflector for sensors with M18 threaded sleeve

Beam deflector M30

Beam deflector for sensors with M30 threaded sleeve

SoundPipe zws1

SoundPipe for zws-15 and zws-7 sensors

SoundPipe sks1

SoundPipe for sks ultrasonic sensor, to intensively bundle the sound field

Reduzierstück G1_G1/2

For mounting of hps+-25 sensors

电缆
支持
下载

图纸及用户使用手册

IO-Link IODD library

传感器目录

LinkControl 软件

传感器档案

有趣的事实

超声波原理

工作模式

检测区域

安装说明

IO-Link

业务范围

应用

双层材料检测

行业

物流解决方案

农业机械

合作伙伴专区
公司介绍
新闻

新产品

贸易展览会

microsonic

关于我们

联系我们

销售网络

Sales Partner

归档传感器
mic-101/IU/HV/M30E/ 2-10V

记住以进行传感器比较

关注列表 0

下载

下载在线的页面内容

下载pdf格式的传感器资料

有后续型号可供选择请咨询

1 x 模拟量输出

2,000 mm

检测范围200 - 2.000 mm

设计圆柱形 M30

工作模式模拟距离测量

特性存档的传感器
不锈钢型号

超声波特性

测量方法回波传播时间

换能器频率200 kHz

盲区200 mm

检测范围1.300 mm

最大检测范围2,000 mm

分辨率0.36 mm

重复精度± 0.15 %

精度± 1 % （内置温度漂移补偿）

电气数据

工作电压 U_B12 - 30 V d.c., 反极性保护

电压脉动± 10 %

空载电流损耗≤ 70 mA

连接类型5芯M12接插件

输出量

输出 1模拟量电流输出：4-20 mA / 电压输出: 2-10 V (at U_B ≥ 15 V), 短路保护，可切换，递增/递减

响应时间110 ms

上电延时< 1,500 ms

输入

输入 1com端输入

外壳

材质不锈钢，塑料件, PBT, TPU

超声波换能器泡沫聚氨酯，玻璃填充的环氧树脂

防护等级EN 60529IP 65

工作温度-20°C to +70°C

储存温度-40°C 到 +85°C

重量210 g

更新版本mic-101/IU/HV/M30/ 2-10V

技术特点/特性

温度补偿是

控制装置2个按键+LED显示（触摸控制）

设定范围Teach-in and numeric configuration via TouchControl
LCA-2带有LinkCopy 或 LinkControl 软件

指示灯2 x 三色LED

特性存档的传感器
不锈钢型号

附件

可配置的附件 KST5A-2/M12
KST5A-5/M12
KST5G-2/M12
KST5G-5/M12
