wms-25/RT/HV/M18

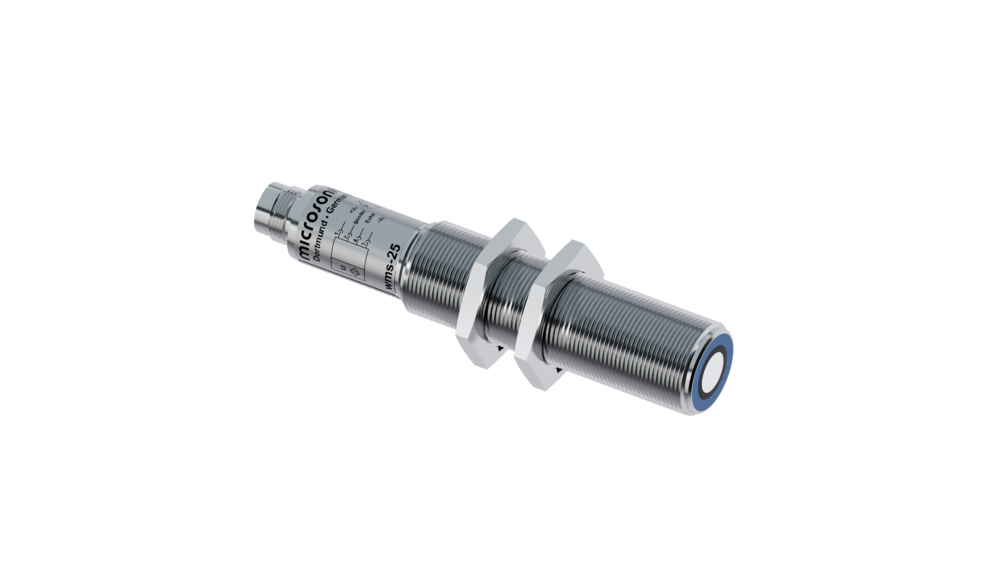

Bild vom wms-25 Ultraschallsensor

记住以进行传感器比较

关注列表 0

下载

下载在线的页面内容

下载pdf格式的传感器资料

文件

使用手册

CAD 文件

SAT STEP IGS IPT PDF

批准和证书

CE符合标准声明 UKCA符合性声明

回波输出

350 mm

检测范围30 - 350 mm

设计圆柱形 M18

工作模式传感器用于求值

超声波特性

测量方法回波传播时间

换能器频率320 kHz

盲区30 mm

检测范围250 mm

最大检测范围350 mm

重复精度± 0.15 %

精度0.17 %/K温度

电气数据

工作电压 U_B10 - 30 V d.c., 反极性保护

电压脉动± 10 %

空载电流损耗≤ 30 mA

连接类型4芯M12接插件

输出量

输出 1pnp信号输出回波 I_max = 10 mA

输入

输入 1信号输入—发射器

推荐的测量周期时间8 ms

描述

描述集电极开路npn控制, I_C ≥ 3 mA, U_CE ≥ 30 V

外壳

材质铜套，镀镍，塑料零件，PBT

超声波换能器泡沫聚氨酯，玻璃填充的环氧树脂

防护等级EN 60529IP 65

工作温度-20°C to +70°C

储存温度-40°C 到 +85°C

重量80 g

更新版本wms-25/RT/HV/M18E

更新版本不锈钢

技术特点/特性

温度补偿否

控制装置否

设定范围否

同步是

多通道的是

指示灯否

附件

可配置的附件 KST4A-2/M12
KST4A-5/M12
KST4G-2/M12
KST4G-5/M12
