LCA-2

Name: LCA-2
Brand: microsonic
SKU: LCA-2

remember for sensor comparison

watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

Approvals and certificates

EU Declaration of Conformity

operating modeaccessories

Electrical Data

operating voltage U_B12 - 30 V d.c., reverse polarity protection

voltage ripple± 10 %

no-load current consumption≤ 25 mA

type of connection4-pin M12 initiator plug

Inputs

input 1com input

control

control input descriptionUSB interface

housing

materialABS

class of protection to EN 60529IP 20

operating temperature+5°C to +60°C

storage temperature-40°C to +85°C

weight150 g

Technical Features/Characteristics

controls4 push-buttons + LED display (TouchControl)

indicators3-digit LED display

Accessories

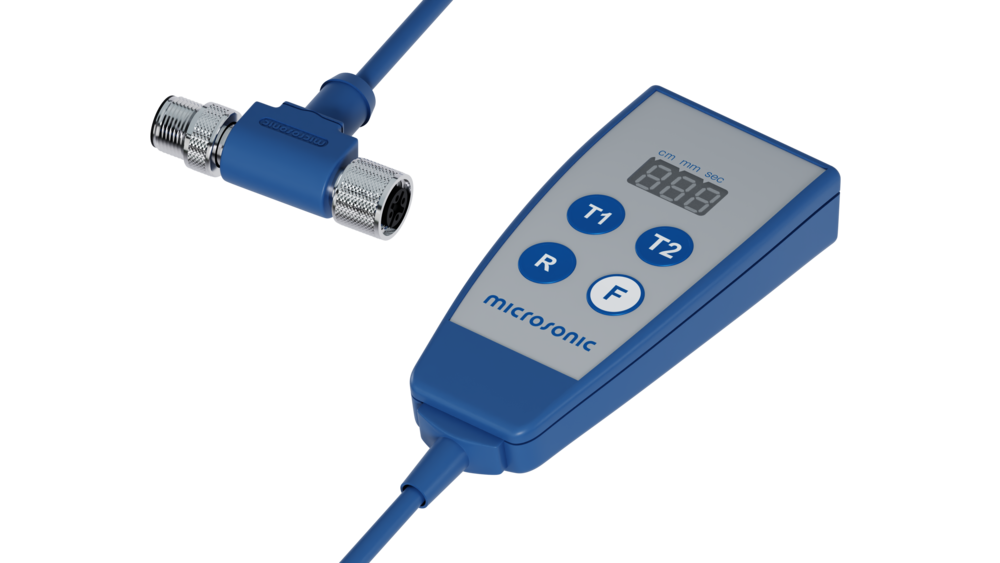

deployable accessory For the convenient setting of a large number of microsonic sensor families. The LinkControl-Adapter LCA-2 can be used to read, copy or write parameters. Additionally, you can connect it with a PC in order to configurate it via LinkControl Software.
