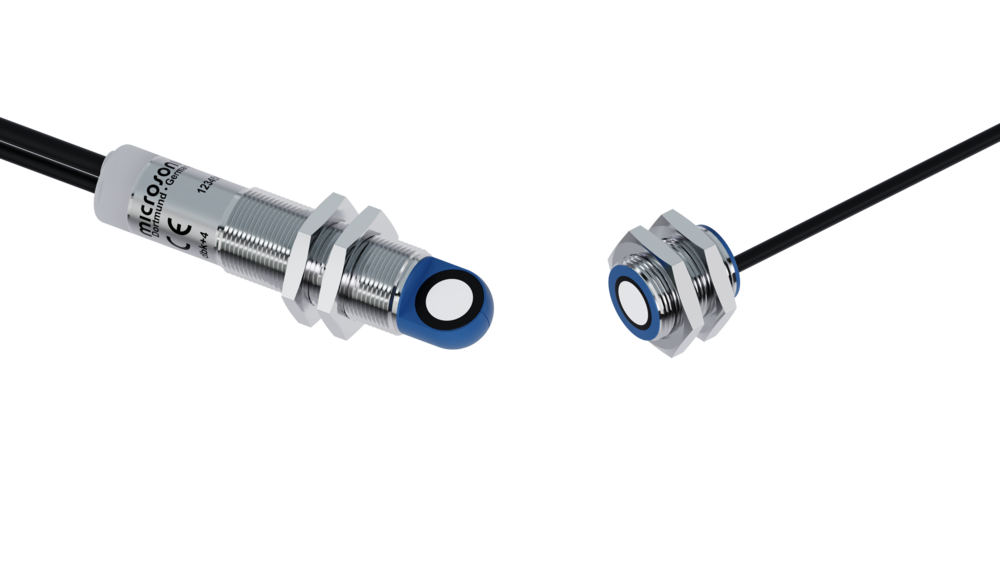

dbk+4/WK/3CFF/ M18 E+S
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
2 x Push-Pull
cylindrical M18 with radially-arranged ultrasonic transducer (90° angular head)
IO-Link
Doppelbogenkontrolle
Doppelbogenkontrolle
papers with weights of 20 - 1,200 g/m2, washi, metal-laminated sheets and films up to 0.4 mm thick, self-adhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, printed circuit boards
receiver für ultrasonic-double sheet control
distance between transmitter and receiver can be selected
90° angular head
cable connection
IO-Link version 1.1
distance between transmitter and receiver can be selected
90° angular head
cable connection
IO-Link version 1.1
Technical Data - Mechanics
20 - 60 mm; optimal: 40 mm ± 3 mm
± 45° from the perpendicular to the sheet
Ultrasonic-Specific
pulse operation with amplitude evaluation
400 kHz
7 mm in front of transmitter and receiver
Electrical Data
18 - 30 V d.c., reverse polarity protection
± 10 %
≤ 50 mA
2 m PUR cable, 7 x 0.14 mm2
at the receiver: 1.2 m PUR cable, at the transmitter: 1 m PUR cable with M8 initiator plug
Outputs
double sheet output
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
missing sheet output
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
< 500 µs in trigger mode, 2.5 ms in free-run mode
< 300 ms
Inputs
control input
control input
control input<br />
com input<br />
sync input
Control
> 3/4 UB: logic 1; < 1/4 UB or control input open: logic 0
Housing
brass sleeve, nickel-plated, plastic parts, PBT, PA
polyurethane foam, epoxy resin with glass contents
IP 65
+5°C to +60°C
-40°C to +85°C
130 g
15 Nm
Technical Features/Characteristics
com input<br/>control input
working range selection via control inputs
Teach-in via control inputs
LCA-2 with LinkControl
IO-Link
Teach-in via control inputs
LCA-2 with LinkControl
IO-Link
yes
LEDs: green: working/single sheet / red: double sheet / flashing red: missing sheet / orange/green: overmodulation
receiver für ultrasonic-double sheet control
distance between transmitter and receiver can be selected
90° angular head
cable connection
IO-Link version 1.1
distance between transmitter and receiver can be selected
90° angular head
cable connection
IO-Link version 1.1
IO-Link
dbk+4/WK/3CFF/M18
16557
yes
COM3 (230.4 kBaud)
2 ms
32 Bit PDI
Bit 0: initial state Pin 4; Bit 1: initial state Pin 2; Bit 2-7: evaluation; Bit 8-15: scale (Int. 8); Bit 16-31: measured value (Int. 16)
Identification, measurement, evaluation, switching output, operating mode, operation, measurement history, diagnostics, recipe memory, counters, add-ons
SP Teach-in, Locator, Reset device, Reset application, Factory settings, Back-to-box, Measurement recording, Reset counters, Teach-in transmitter/receiver distance, Reset diagnostic data
yes
IODD version 1.1.4
