nano-24/CF

IO-Link

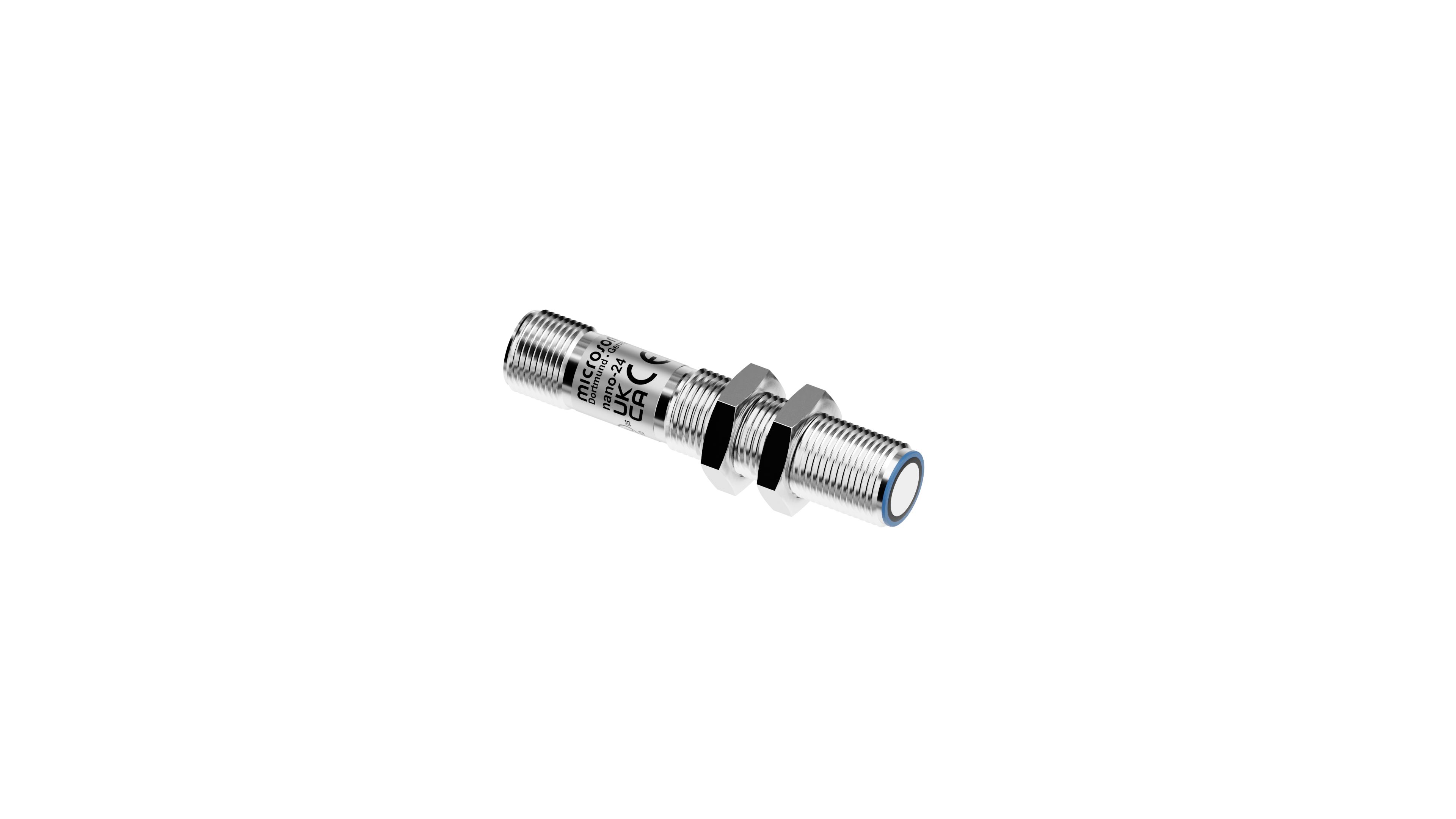

Bild vom nano-24 Ultraschallsensor
watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

CAD Files

SAT STEP IGS IPT PDF

Approvals and certificates

EU Declaration of Conformity UKCA Declaration of Conformity

IO-Link

IODD-Library IO-Link Accompanying Sheet IO-Link Declaration of Conformity
  • 1 x Push-Pull 1 x Push-Pull
  • 350 mm 350 mm
40 - 350 mm
cylindrical M12
IO-Link
proximity switch/reflective mode
reflective barrier
window mode
narrow sound field
IO-Link version 1.1
Smart Sensor Profile
UL Listed

Ultrasonic-Specific

echo propagation time measurement
500 kHz
40 mm
240 mm
350 mm
0.10 mm
± 0.15 %
± 1 % (temperature drift internally compensated)

Electrical Data

10 - 30 V d.c., reverse polarity protection
± 10 %
≤ 40 mA
4-pin M12 initiator plug

Outputs

switching output
Push-Pull, UB-3 V, -UB+3 V,Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
3 mm
20 Hz
40 ms
< 300 ms

Inputs

com input
synchronisation input
teach-in input

Housing

brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
15 g

Technical Features/Characteristics

yes
Teach-in via com input on pin 2
LCA-2 with LinkControl
IO-Link
yes
yes
LED grün, LED gelb
narrow sound field
IO-Link version 1.1
Smart Sensor Profile
UL Listed

IO-Link

nano-24/CF
34021
yes
COM2 (38,4 kBaud)
10 ms
4 Byte
Bit 0: initial state Pin 4; Bit 8-15: scale (Int. 8); Bit 16-31: measured value (Int. 16)
Identification, measuring configuration, switched output, filter, temperature compensation, operation
SP1 Teach-in, SP2 Teach-in, factory settings
yes
IODD version 1.1.2

Accessories

KST4A-2/M12
KST4A-5/M12
KST4G-2/M12
KST4G-5/M12
LCA-2
LCA-2 Koffer

Matching sensors

prev
next
KST4A-2/M12

KST4A-2/M12

cable, 4 contacts, female angled connector M12, cable length 2 m
KST4A-5/M12

KST4A-5/M12

cable, 4 contacts, female angled connector M12, cable length 5 m
KST4G-2/M12

KST4G-2/M12

cable, 4 contacts, female cable connector M12, cable length 2 m
KST4G-5/M12

KST4G-5/M12

cable, 4 contacts, female cable connector M12, cable length 5 m
LCA-2

LCA-2

For the convenient setting of a large number of microsonic sensor families. The LinkControl-Adapter LCA-2 can be used to read, copy or write parameters. Additionally, you can connect it with a PC in order to configurate it via LinkControl Software.
LCA-2 Koffer

LCA-2 Koffer

Set for convenient setting of a number of microsonic sensor families.<br/>Contents:<br/>LCA-2<br/>- Adaptor for sensors with cable connection (lcs) incl. cable clamps<br/>- Adapter for power supply incl. cable clamps<br/>- Power supply 90-240VAC/24VDC, 625 mA, with 2,5 m cable<br/>- four exchangeable AC-plugs for use in Europe, USA, Great Britain and Australia<br/>- USB - cable A-plug to B-plug<br/>- USB stick with LinkControl software<br/>- Manual (German / English)
