ucs-24/CFF

IO-Link

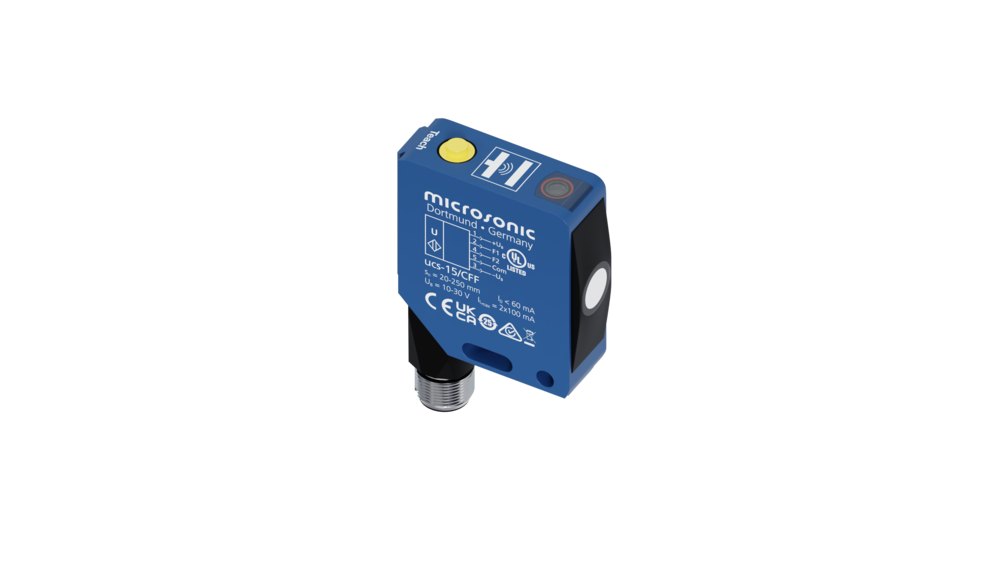

Bild vom ucs-24 Ultraschallsensor
watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

CAD Files

SAT STEP IGS IPT PDF

Approvals and certificates

EU Declaration of Conformity UKCA Declaration of Conformity

IO-Link

IODD-Library IO-Link Accompanying Sheet IO-Link Declaration of Conformity
  • 2 x Push-Pull 2 x Push-Pull
  • 350 mm 350 mm
55 - 350 mm
cuboidal
IO-Link
proximity switch/reflective mode
reflective barrier
window mode
cuboidal design
IO-Link version 1.1
Smart Sensor Profile
UL Listed

Ultrasonic-Specific

echo propagation time measurement
500 kHz
55 mm
240 mm
350 mm
0.10 mm
± 0.15 %
± 1 % (temperature drift internally compensated)

Electrical Data

10 - 30 V d.c., reverse polarity protection
± 10 %
≤ 60 mA
5-pin M12 initiator plug

Outputs

switching output
Push-Pull, UB-3 V, -UB+3 V,Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
switching output
Push-Pull, UB-3 V, -UB+3 V,Imax = 100 mA
NOC/NCC adjustable, short-circuit-proof
2.0 mm
20 Hz
40 ms
< 300 ms

Inputs

com input
synchronisation input
teach-in input

Housing

zinc die-casting, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
65 g

Technical Features/Characteristics

yes
1 push-button<br/>com input
Teach-in via push-button
LCA-2 with LinkControl
IO-Link
yes
yes
Duo-LED green/yellow
cuboidal design
IO-Link version 1.1
Smart Sensor Profile
UL Listed

IO-Link

ucs-24/CFF
19006
yes
COM2 (38,4 kBaud)
10 ms
16 Bit, R, UNI16
Bit 0: Q1 switch status; Bit 1-15: distance value with a resolution of 0,1 mm
Identification, measuring configuration, switched output, filter, temperature compensation, operation
SP1 Teach-in, SP2 Teach-in, factory settings
yes
IODD version 1.1.2

Accessories

KST5A-2/M12
KST5A-5/M12
KST5G-2/M12
KST5G-5/M12
LCA-2
LCA-2 Koffer

Matching sensors

prev
next
KST5A-2/M12

KST5A-2/M12

cable, 5 contacts, female angled connector M12, cable length 2 m
KST5A-5/M12

KST5A-5/M12

cable, 5 contacts, female angled connector M12, cable length 5 m
KST5G-2/M12

KST5G-2/M12

cable, 5 contacts, female cable connector M12, cable length 2 m
KST5G-5/M12

KST5G-5/M12

cable, 5 contacts, female cable connector M12, cable length 5 m
LCA-2

LCA-2

For the convenient setting of a large number of microsonic sensor families. The LinkControl-Adapter LCA-2 can be used to read, copy or write parameters. Additionally, you can connect it with a PC in order to configurate it via LinkControl Software.
LCA-2 Koffer

LCA-2 Koffer

Set for convenient setting of a number of microsonic sensor families.<br/>Contents:<br/>LCA-2<br/>- Adaptor for sensors with cable connection (lcs) incl. cable clamps<br/>- Adapter for power supply incl. cable clamps<br/>- Power supply 90-240VAC/24VDC, 625 mA, with 2,5 m cable<br/>- four exchangeable AC-plugs for use in Europe, USA, Great Britain and Australia<br/>- USB - cable A-plug to B-plug<br/>- USB stick with LinkControl software<br/>- Manual (German / English)
