esf+1/CFF/Exp

IO-Link

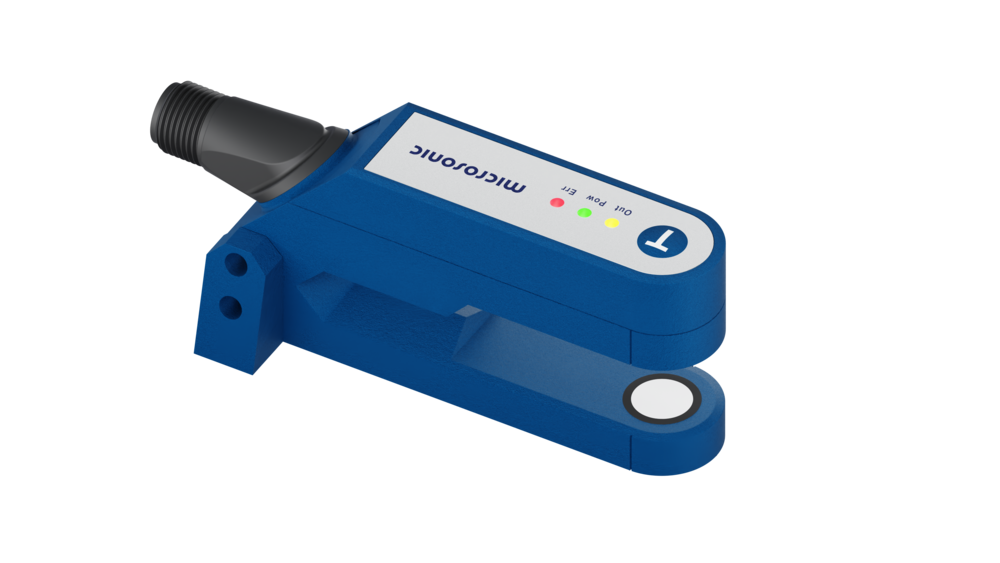

Bild esf+1 Ultraschall-Spleiß- und Etikettensensor
Volglijst 0

Downloads

Pagina-inhoud als online catalogus

Download sensor als PDF

Documentatie

Gebruiksaanwijzing

CAD-gegevens

STEP PDF

Goedkeuringen en certificaten

EU-conformiteitsverklaring UKCA-conformiteitsverklaring

IO-Link

IODD-Library IO-Link begeleidend blad
  • 2 x Push-Pull 2 x Push-Pull
in de vorm van een vork
IO-Link
label/splice detection
Flat fork leg
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management

Technische gegevens - Mechanica

6 mm
68 mm

Ultrasoon-specifiek

Impulsbedrijf met amplitudeanalyse
200 kHz

Elektrische gegevens

20 V tot 30 V DC, ompoolbeveiligd
± 10 %
≤ 50 mA
5-polige, ronde M12-connector

Uitgangen

schakeluitgang
baanscheur
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
sluiter/opener instelbaar, kortsluitvast
schakeluitgang
label/splice herkend
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
sluiter/opener instelbaar, kortsluitvast
≥ 425 µs
< 300 ms

Ingangen

com-ingang
teach-in-ingang

Behuizing

PA-GF50
polyurethaanschuim, epoxyhars met glasaandeel
IP 65
+5° C tot +60° C
-40° C tot +85° C
60 g

Uitrusting/Bijzonderheden

1 taster <br/>com-ingang
Teach-in via push-button
Teach-in via com input on pin 5
LCA-2 with LinkControl
IO-Link
ja
1 x LED grün: Power, 1 x LED gelb: Output, 1 x LED rot: Error
Flat fork leg
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management

IO-Link

esf+1/CFF/Exp
16956
ja
COM3 (230,4 kBaud)
600 µs
32 Bit PDI
Bit 0: initial state Pin 4; Bit 1: initial state Pin 2; Bit 2-7: evaluation; Bit 8-15: scale (Int. 8); Bit 16-31: measured value (Int. 16)
Identifikation, Messung, Auswertung, Schaltausgang, Betriebsart, Bedienung, Messwerthistorie, Diagnose, Rezeptspeicher, Zählwerke, Add-ons
SP Teach-in, Locator, Reset device, Reset application, Factory settings, Back-to-box, Measurement recording, Reset counters, Teach-in transmitter/receiver distance, Reset diagnostic data
ja
IODD Versie 1.1.4

Toebehoren

KST5A-2/M12
KST5A-5/M12
KST5G-2/M12
KST5G-5/M12
LCA-2
LCA-2 Koffer

Passende sensoren

prev
next
KST5A-2/M12

KST5A-2/M12

cable, 5 contacts, female angled connector M12, cable length 2 m
KST5A-5/M12

KST5A-5/M12

cable, 5 contacts, female angled connector M12, cable length 5 m
KST5G-2/M12

KST5G-2/M12

cable, 5 contacts, female cable connector M12, cable length 2 m
KST5G-5/M12

KST5G-5/M12

cable, 5 contacts, female cable connector M12, cable length 5 m
LCA-2

LCA-2

voor de comfortabele instelling van veel microsonic-sensorfamilies
LCA-2 Koffer

LCA-2 Koffer

Set voor de comfortabele instelling van veel microsonic-sensorfamilies.<br/>Contents:<br/>LCA-2<br/>- Adaptor for sensors with cable connection (lcs) incl. cable clamps<br/>- Adapter for power supply incl. cable clamps<br/>- Power supply 90-240VAC/24VDC, 625 mA, with 2,5 m cable<br/>- four exchangeable AC-plugs for use in Europe, USA, Great Britain and Australia<br/>- USB - cable A-plug to B-plug<br/>- USB-Stick with LinkControl software<br/>- Manual (German / English)
