esf+1/CFF/Exp
-
2 x Push-Pull
포크 형
IO-Link
label/splice detection
label/splice detection
Flat fork leg
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management

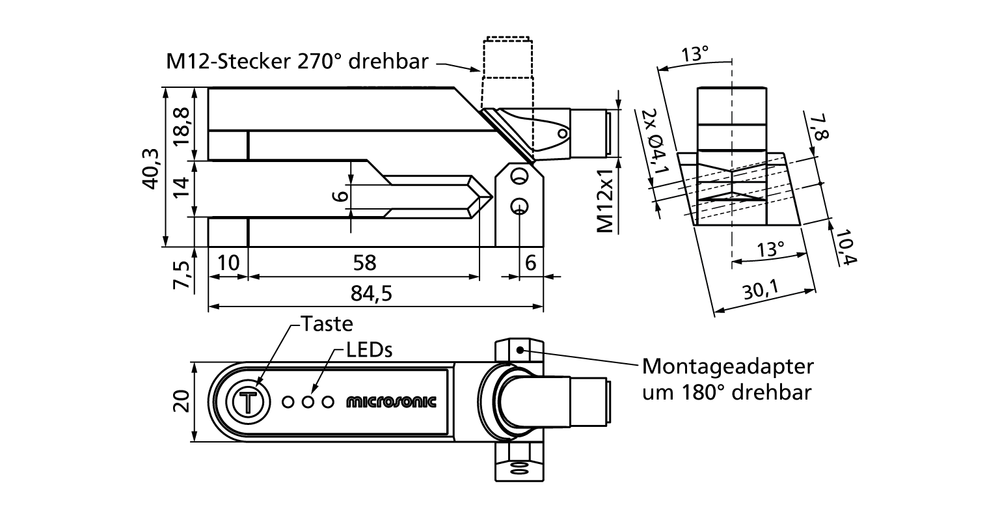

기술 데이터 - 기계
6 mm
68 mm
초음파 사양
진폭 계산을 가진 펄스 작동
200 kHz
전기적인 데이터
20 - 30 V d.c., 역극성 보호
± 10 %
≤ 50 mA
5-핀 M12 규격 플러그
출력
스위칭 출력
web break
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC 조정가능,쇼트 보호회로
web break
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC 조정가능,쇼트 보호회로
스위칭 출력
label/splice detected
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC 조정가능,쇼트 보호회로
label/splice detected
Push-Pull, UB-1 V, -UB+1 V, Imax = 100 mA
NOC/NCC 조정가능,쇼트 보호회로
≥ 425 µs
< 300 ms
입력
com 입력
teach-in 입력
teach-in 입력
하우징
PA-GF50
폴리우레탄 폼, 글라스-에폭시 수지
IP 65
+5°C to +60°C
-40°C to +85°C
60 g
기술 특징/ 특성
1 push-button<br/>com input
Teach-in via push-button
Teach-in via com input on pin 5
LCA-2 with LinkControl
IO-Link
Teach-in via com input on pin 5
LCA-2 with LinkControl
IO-Link
아니오
1 x LED grün: Power, 1 x LED gelb: Output, 1 x LED rot: Error
Flat fork leg
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management
Mounting adapter for 2 mounting positions
Swivelling M12 connector
IO-Link
Recipe management
IO-Link
esf+1/CFF/Exp
16956
네
COM3 (230.4 kBaud)
600 µs
32 Bit PDI
Bit 0: initial state Pin 4; Bit 1: initial state Pin 2; Bit 2-7: evaluation; Bit 8-15: scale (Int. 8); Bit 16-31: measured value (Int. 16)
Identifikation, Messung, Auswertung, Schaltausgang, Betriebsart, Bedienung, Messwerthistorie, Diagnose, Rezeptspeicher, Zählwerke, Add-ons
SP Teach-in, Locator, Reset device, Reset application, Factory settings, Back-to-box, Measurement recording, Reset counters, Teach-in transmitter/receiver distance, Reset diagnostic data
네
IODD version 1.1.4
