lcs

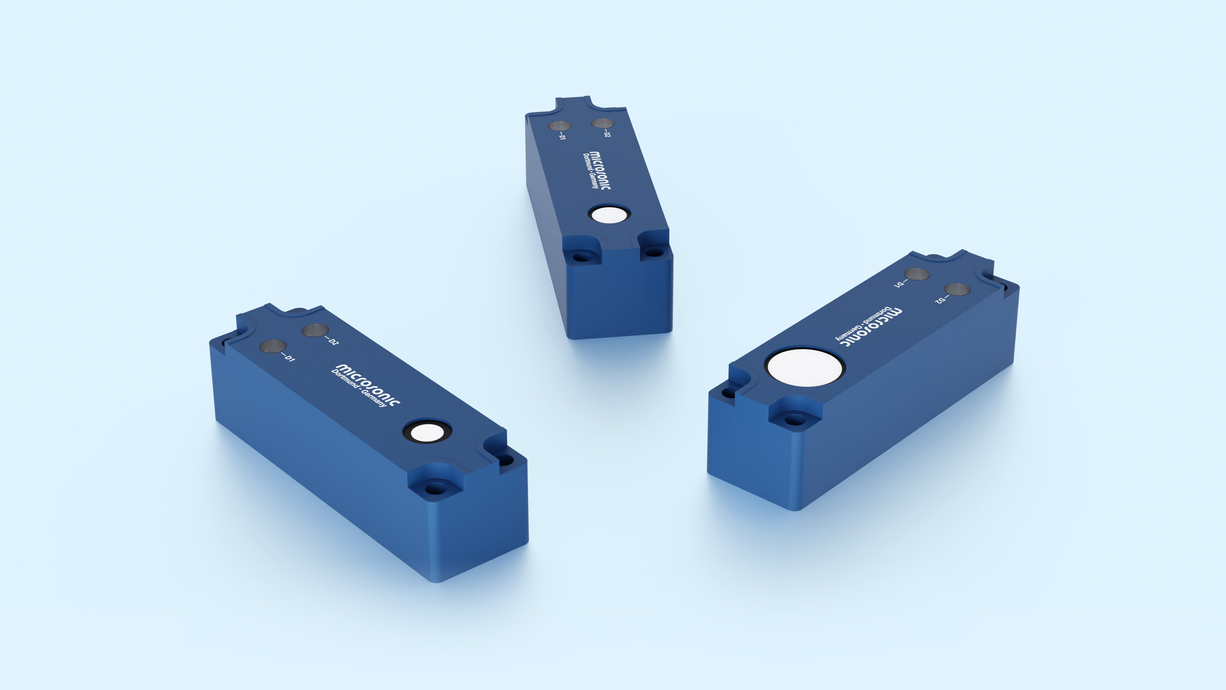

Ultrasonic sensors in the lcs series are available in three device variants with three different detection ranges.

检测范围

0.25 m
0.35 m
1.3 m

输出量

下载传感器详细信息 Sensor matrix

主要特点

最多有3个pnp开关量输出
自动同步最多可实现10个传感器的近距离同步工作

基本特点

2 个或 3个pnp开关量输出
模拟量输出4–20 mA和0–10 V 电流和电压输出可自动切换
检测距离从 30 mm 到 2 m，存在3种检测量程
可以通过pin5来进行microsonic的teach-in
0.18 mm 分辨率
温度补偿
工作电压 9–30 V
LinkControl可以通过连接电脑来配置传感器参数

Sensor matrix

The sensor matrix gives an overview of standard sensors from lcs family. Make your choice based on operating range and available outputs and click in the matrix.

0.25 米

0.35 米

1.3 米

2 Schaltausgaenge

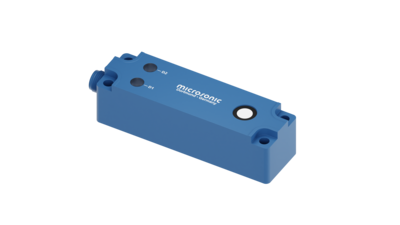

2 x pnplcs-25/DD/QP

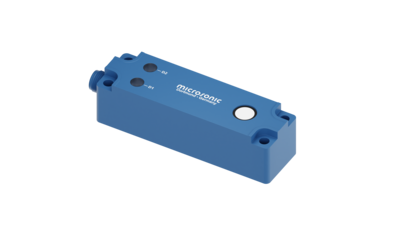

2 x pnplcs-35/DD/QP

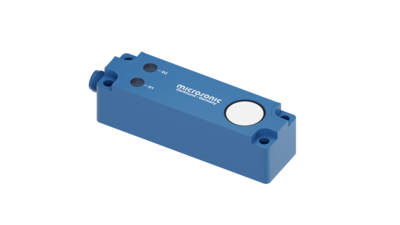

2 x pnplcs-130/DD/QP

3 Schaltausgaenge

3 x pnplcs-25/DDD/QP

3 x pnplcs-35/DDD/QP

3 x pnplcs-130/DDD/QP

1 Analogausgang

1 x analog 4-20 mAlcs-25/IU/QP

1 x analog 4-20 mAlcs-35/IU/QP

1 x analog 4-20 mAlcs-130/IU/QP

2 Schaltausgaenge

2 x pnp

3 Schaltausgaenge

3 x pnp

1 Analogausgang

1 x analog 4-20 mA

have a block-like plastic housing with four fixation bores, two of which are already equipped with M4 threaded bushings for eased mounting.

indicate all operating statuses.

Symbolische Darstellung 2 Schaltausgänge

2 pnp switching outputs

Symbolische Darstellung 3 Schaltausgängen

3 pnp switching outputs

Symbolische Darstellung von einem Analogausgang

1 analogue output 4–20 mA and 0–10 V

(Com input), the Ics sensors are set (Teach-in): Switching output D1 is set by connecting pin 5 to +UB, while switching output D2 is set by connecting pin 5 to –UB. Also the sensors with analogue output are set via pin 5.

漫反射模式（单开关点模式）
反射板模式
窗口模式

将被测目标物放在想要的检测距离(1)处，使之被传感器检测到
将pin 5连接到+UB 大约3 秒
然后将pin 5再次连接到+U_B 大约1 秒

Teach-in of a switching point — 单开关点模式的自学习

Teach-in of a two-way reflective barrier ultrasonic sensor — 反射板模式自学习

将pin 5连接到+U_B 大约3 秒
然后将pin 5再次连接到+U_B 大约10 秒

将被测物体放置于窗口的近点(1)处
将pin 5连接到+U_B 大约3 秒
然后将被测物体移动到窗口的远点(2)处
然后将pin 5再次连接到+U_B 大约1 秒

Schematische Darstellung eines Ultraschallsensor. Es wird ein Teach-in einer Analogkennlinie bzw. eines Fensters mit zwei Schaltpunkten dargestellt. — 对一个模拟量或开关量窗口模式的自学习

Synchronisation using pin 5 — 使用Pin 5脚进行同步

permits the simultaneous use of multiple mic sensors in an application. To avoid mutual interference, the sensors can be synchronised with one another. To do this, all the sensors are electrically connected on pin 5.

和模拟特性曲线的递增/递减也可以通过pin5脚设置。

checks the load connected to the output and then automatically switch to 4–20 mA current output or 0–10 V voltage output to ensure maximum ease of handling.

which are set with the help of the Link-Control adapter LCA-2. In addition to this “offline” programming, all Ics sensors can also be parameterised on the PC with the LCA-2 and the Link-Control software .
