Archive sensor
lcs-100/DD/HV/QP
-
2 x pnp
-
2,000 mm
200 - 2.000 mm
cuboidal
proximity switch/reflective mode
reflective barrier
window mode
reflective barrier
window mode
archive sensor

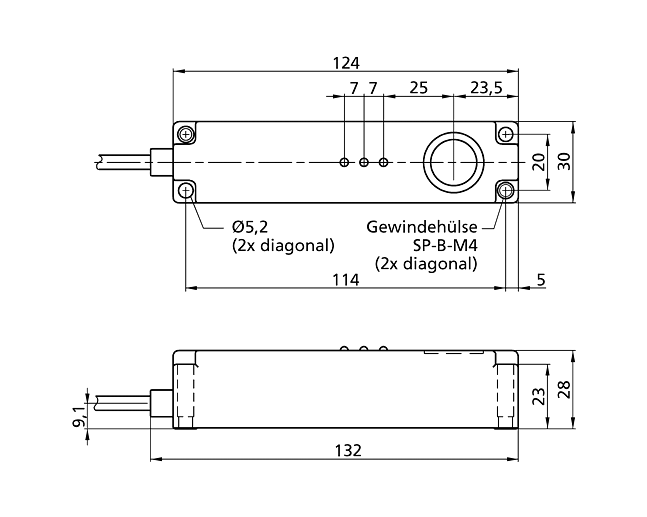

flat housing
lateral sound exit
flat housing
lateral sound exit
Ultrasonic-Specific
echo propagation time measurement
200 kHz
200 mm
1.300 mm
2,000 mm
0.36 mm
± 0.15 %
± 1 % (temperature drift internally compensated)
Electrical Data
12 - 30 V d.c., reverse polarity protection
± 10 %
≤ 70 mA
2 m PUR cable, 5 x 0.25 mm2
outputs
switching output
pnp: Imax = 500 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
pnp: Imax = 500 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
switching output
pnp: Imax = 500 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
pnp: Imax = 500 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
20 mm
6 Hz
110 ms
< 300 ms
Inputs
com input
housing
PBT
polyurethane foam, epoxy resin with glass contents
IP 65
-25°C to +70°C
-40°C to +85°C
260 g
Technical Features/Characteristics
yes
com input
LCA-2 with LinkControl
no
no
2 x three-colour LED
archive sensor
flat housing
lateral sound exit
flat housing
lateral sound exit
