Archive sensor
lpc-25/CDI/M18
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
1 x pnp + 1 x analogue 4-20 mA
-
350 mm
30 - 350 mm
cylindrical M18
proximity switch/reflective mode
reflective barrier
window mode
analogue distance measurement
reflective barrier
window mode
analogue distance measurement
Ultrasonic-Specific
echo propagation time measurement
320 kHz
30 mm
250 mm
350 mm
0,069 mm bis 0,098 mm, abhängig vom eingestellten Analogfenster
± 0.15 %
± 1 % (temperature drift internally compensated)
Electrical Data
10 - 30 V d.c., reverse polarity protection
± 10 %
≤ 40 mA

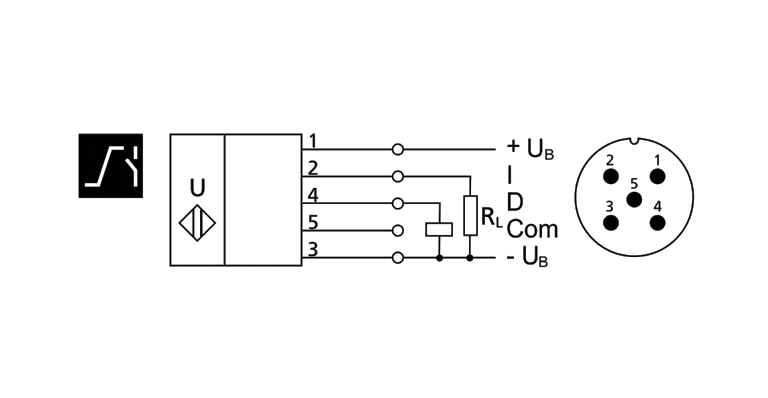

5-pin M12 initiator plug
outputs
analogue output
current: 4-20 mA
switchable rising/falling
current: 4-20 mA
switchable rising/falling
switching output
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
2.0 mm
25 Hz
24 ms
< 300 ms
Inputs
com input
teach-in input
teach-in input
housing
brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
43 g
Technical Features/Characteristics
yes
com input
Teach-in via com input on pin 5
LCA-2 with LinkControl
LCA-2 with LinkControl
yes
no
1 x LED yellow: switch status, 1 x LED yellow: object in the window
