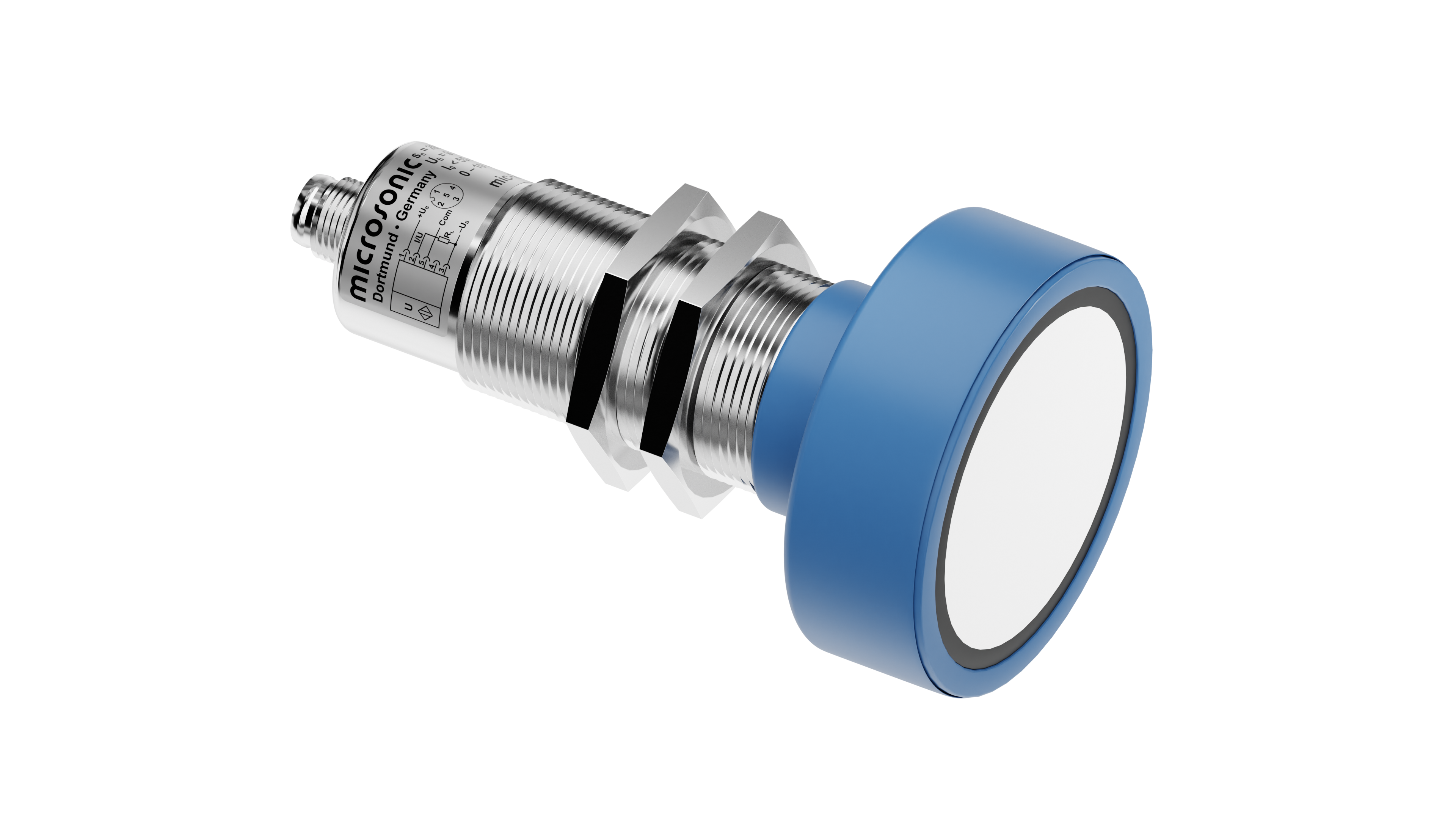

mic-600/IU/M
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
1 x analogue 4-20 mA + 0-10 V
-
8,000 mm
600 - 8.000 mm

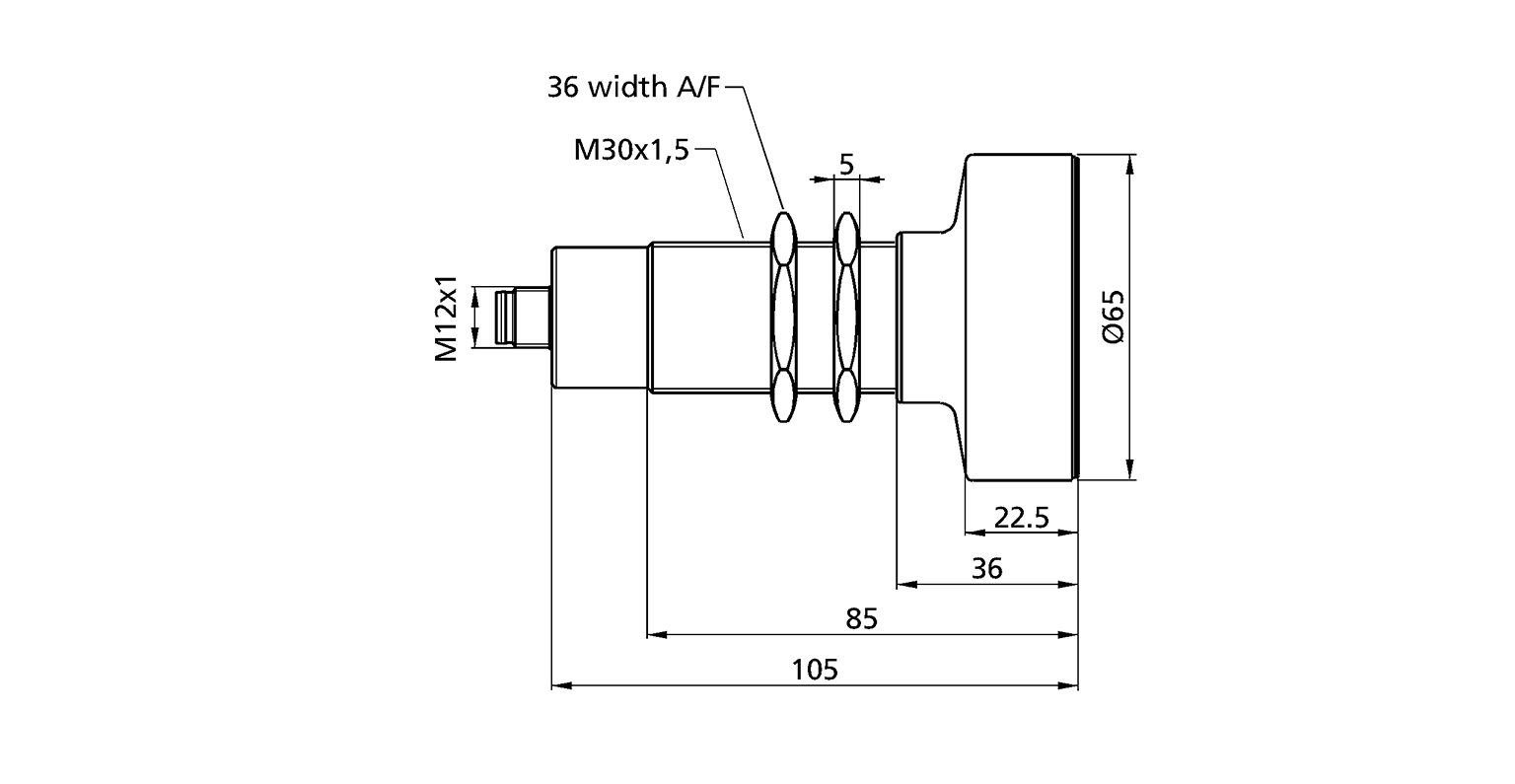

cylindrical M30
analogue distance measurements
metal plug for harsh operational conditions
Ultrasonic-Specific
echo propagation time measurement
80 kHz
600 mm
6.000 mm
8,000 mm
0.18 mm to 2.4 mm, depending on the analogue window
± 0.15 %
± 1 % (temperature drift internally compensated)
Electrical Data
9 - 30 V d.c., reverse polarity protection
± 10 %
≤ 55 mA
5-pin M12 initiator plug
outputs
analogue output
current: 4-20 mA / voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
current: 4-20 mA / voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
240 ms
< 600 ms
Inputs
com input
teach-in input
teach-in input
housing
brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
320 g
cable connection (on request)
Technical Features/Characteristics
yes
com input<br/>control input
Teach-in via com input on pin 5
LCA-2 with LinkControl
LCA-2 with LinkControl
yes
no
no
metal plug for harsh operational conditions
