nano-24/CI

sensor image
detection zone

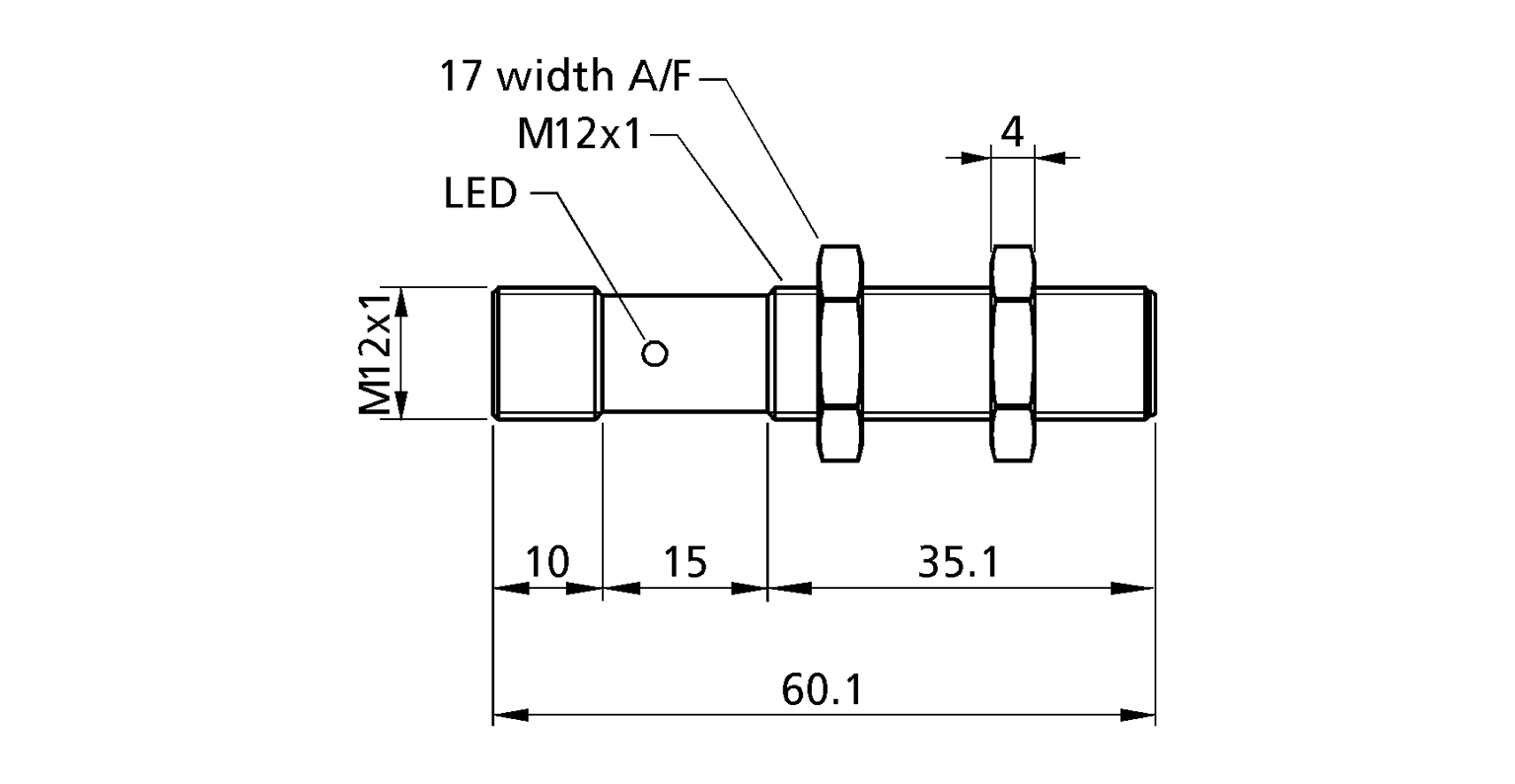

scale drawing

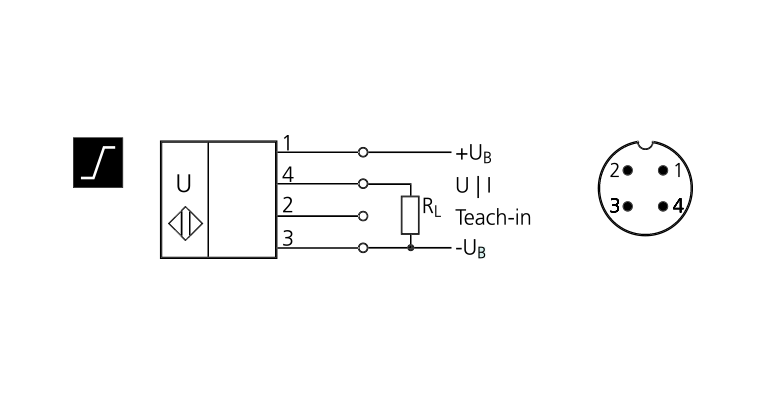

pin assignment
watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

CAD Files

SAT STEP IGS IPT PDF

Approvals and certificates

EU Declaration of Conformity UKCA Declaration of Conformity
  • 1 x analogue 4-20 mA 1 x analogue 4-20 mA
  • 350 mm 350 mm
40 - 350 mm
cylindrical M12
analogue distance measurements
narrow sound field
UL Listed

Ultrasonic-Specific

echo propagation time measurement
500 kHz
40 mm
240 mm
350 mm
± 0.15 %
± 1 % (temperature drift internally compensated)

Electrical Data

10 - 30 V d.c., reverse polarity protection
± 10 %
≤ 40 mA
4-pin M12 initiator plug

outputs

analogue output
current: 4-20 mA
switchable rising/falling
30 ms
< 300 ms

Inputs

Teach-in input

housing

brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
15 g

Technical Features/Characteristics

Teach-in
Teach-in via com input on pin 2
1 x LED green: working, 1 x LED yellow: object in the window
narrow sound field
UL Listed

Accessories

KST4A-2/M12
KST4A-5/M12
KST4G-2/M12
KST4G-5/M12
