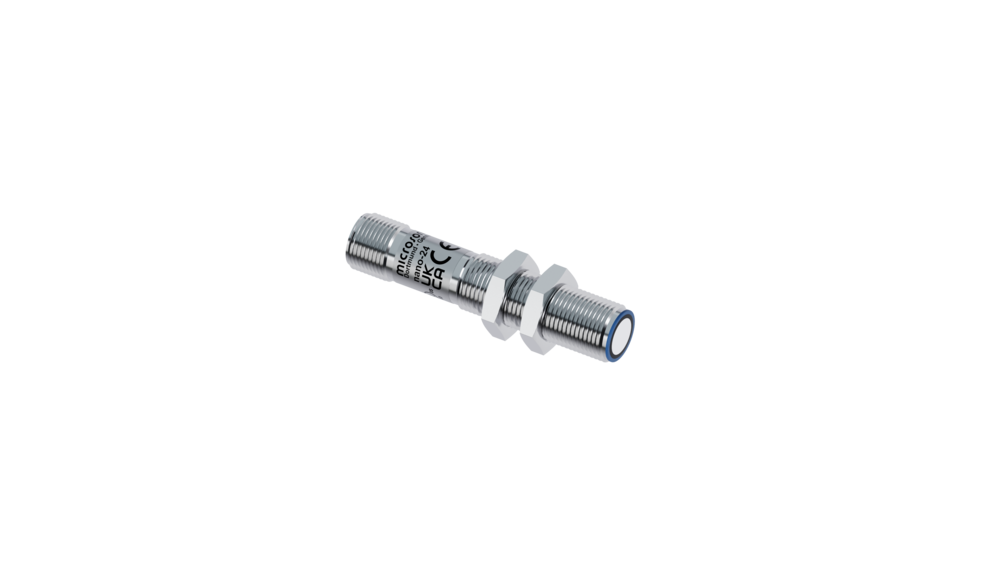

nano-24/CU
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
1 x analogue 0-10 V
-
350 mm
40 - 350 mm
cylindrical M12
analogue distance measurements
narrow sound field
UL Listed
UL Listed
Ultrasonic-Specific
echo propagation time measurement
500 kHz
40 mm
240 mm
350 mm
± 0.15 %
± 1 % (temperature drift internally compensated)
Electrical Data
15 V bis 30 V DC, verpolfest
± 10 %
≤ 40 mA
4-pin M12 initiator plug
outputs
analogue output
voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
30 ms
< 300 ms
Inputs
Teach-in input
housing
brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
15 g
Technical Features/Characteristics
Teach-in
Teach-in via com input on pin 2
Teach-in via com input on pin 2
1 x LED green: working, 1 x LED yellow: object in the window
narrow sound field
UL Listed
UL Listed
