nero-35/CU
Downloads
Page content as online catalogue
Documentation
CAD Files
Approvals and certificates
-
1 x analogue 0-10 V
-
600 mm
65 - 600 mm
cylindrical M18
analogue distance measurements
UL Listed
Ultrasonic-Specific
echo propagation time measurement
400 kHz
65 mm
350 mm
600 mm
0.056 mm to 0.691 mm, depending on the analogue window
± 0.15 %
temperature drift 0.17 %/K
Electrical Data
15 V bis 30 V DC, verpolfest
± 10 %
≤ 40 mA

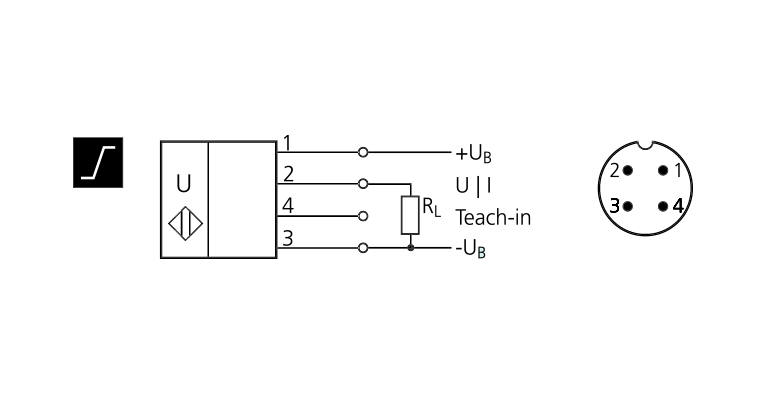

4-pin M12 initiator plug
outputs
analogue output
voltage: 0-10 V, short-circuit-proof
switchable rising/falling
voltage: 0-10 V, short-circuit-proof
switchable rising/falling
64 ms
< 300 ms
Inputs
Teach-in input
housing
PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
15 g
1 Nm
90° angular head
Technical Features/Characteristics
no
control input
Teach-in
no
no
LED green: working, LED yellow: state of output
UL Listed
