sks 초음파 센서

Sensorbild - Matrix


소형 센서로는 가장 작은 sks는 초소형 주사위형 하우징 센서입니다.

센서 라인에 관하여 pdf로 다운 받으세요


  • Very small housing dimensions with two M3 threaded sleeves
  • Installation-compatible with many optical sensors a true alternative for critical applications
  • IO-Link interface for support of the new industry standard
  • Optionally with SoundPipe sks1 waveguide attachment
  • Improved temperature compensation adjustment to working conditions within 45 seconds
  • Smart Sensor Profiles more transparency between IO-Link Devices
  • UL Listed to Canadian and US safety standards

기본 사항

  • 1 switching output in pnp or npn variant
  • 1 Push-Pull switching output pnp or npn basis
  • 4-20 mA 또는 0-10 V 아날로그 출력
  • microsonic Teach-in using a button
  • 0.1 mm resolution
  • 20–30 V operating voltage


sks 센서

sks 센서들은 마이크로 소닉에서 가장 작은 초음파 센서이고 특별한 하우징 설계는 zws 센서 들에 비교하여 33%까지 감소하였습니다.

Ultrasonic sensors monitor countless operating procedures in automated manufacturing. The miniature housing of the sks ultrasonic sensor fits perfectly in constricted installation locations e.g. for sampling conductor boards and wafer in the electronics industry, for presence checks on conveyor bands or fill-level measurement in small containers. When capacitive or optical sensors come up against their physical limits,  installation compatibility of ultrasonic sensors with many optical sensors enable their deployment: simply secured with two M3 screw sockets.

For the sks sensor range

2 output versions are available.

1 switching output, optionally in pnp-, npn- or Push-Pull circuitry
1 analogue output 4–20 mA or 0–10 V

The temperature compensation

of the analogue sensors profits from a significant improvement. The sensors reach their operating point only 45 seconds after activation of the operating voltage. We now compensate for the influence of self-heating and installation conditions. This brings improved precision shortly after activation of the supply voltage and in running operation.

The Teach-in button

on the top of the sensor allows the convenient configuration of the desired switching distance and the mode.

두개의 LED

2개의 LED는 센서의 동작 상태를 표시하여 줍니다.

The three modes

  • Single switching point,
  • Two-way reflective barrier and
  • Window mode

permit configuration using the usual microsonic Teach-in procedure.

The switched output is set by

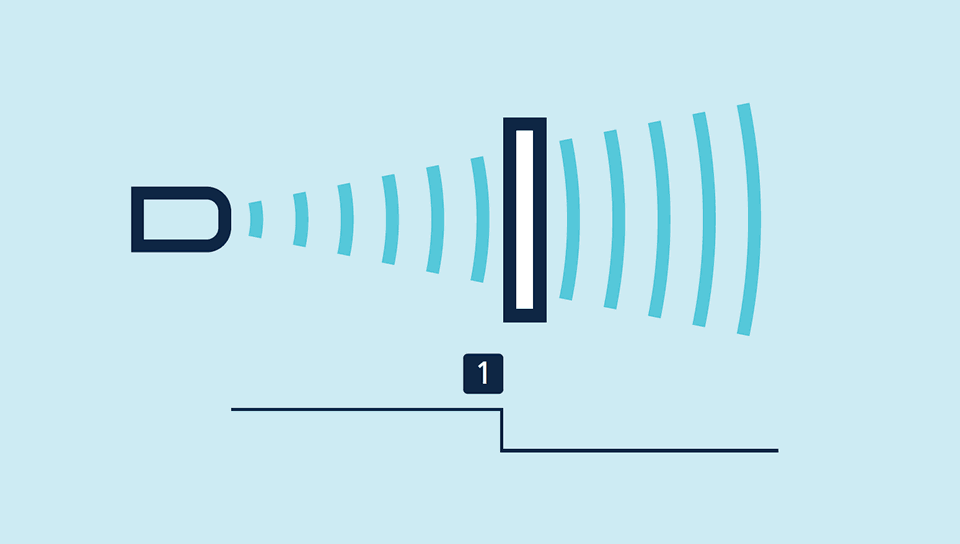

positioning the object to be detected within the desired distance (1) to the sensor, pressing the button for approx. 3 seconds and then pressing it once more for approx. 1 second. Ready.

Teach-in of a switching point

A two-way reflective barrier

can be set with the help of a permanently mounted reflector by mounting the sks sensor and the reflector, then pressing the button for approx.
3 seconds and then pressing it once more for approx. 10 seconds. Now, the two-way reflective barrier has been set.

Teach-in of a two-way reflective barrier

Set the analogue output

by initially positioning the object to be detected on the sensor-close window limit (1), pressing the button for approx. 3 seconds, shifting the object to the sensor-distant window limit and pressing the button once more for approx. 1 second. Ready.

Teach-in of an analogue characteristic or of a window with two switching points

To set a window

with two detection points on a single switched output, the procedure is the same as setting the analogue.


and rising/falling analogue characteristic curve can also be set using the button.

SoundPipe sks1

intensively bundles the sound field and allows measurements in openings with small diameters. The SoundPipe sks1 (accessory) is pushed on the transducer of the sks.

IO-Link integrated

in version 1.1 for sensors with switching output. The sks-15/CF/A supports the Smart Sensor Profile.
