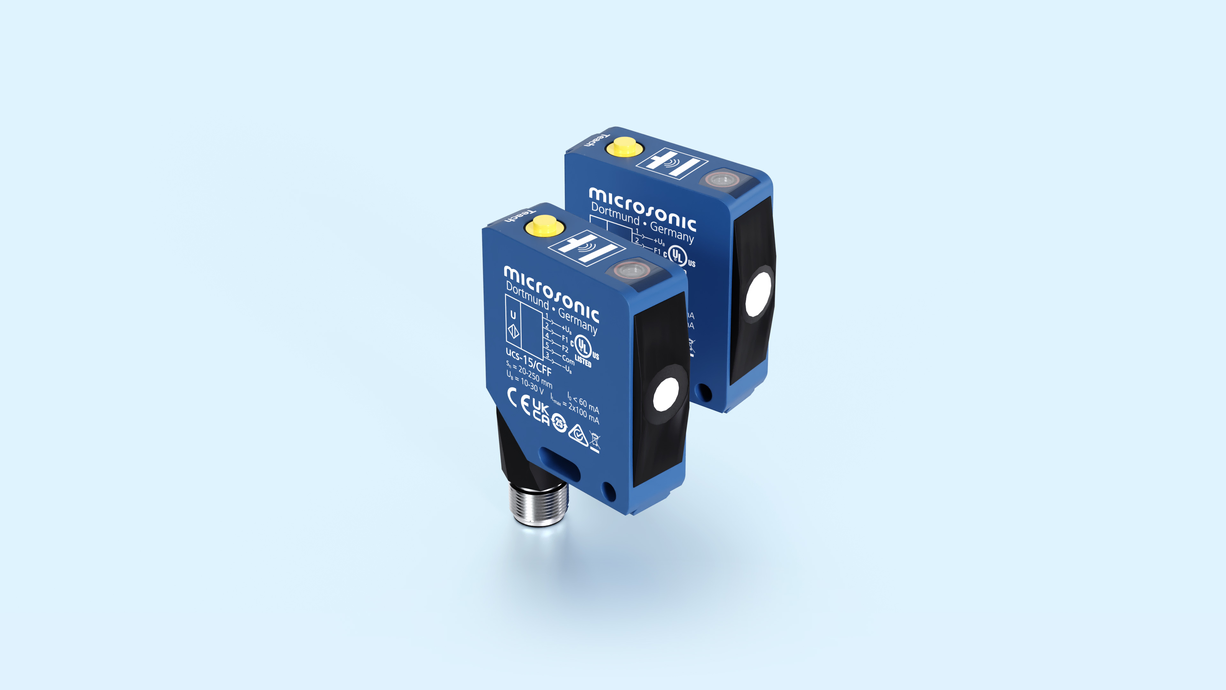

ucs 초음파 센서

Sensorbild - Matrix

개요

ucs센서는 포토센서의 산업 표준에 기계적으로 호환되는 튼튼한 재질의 메탈 하우징 센서입니다.

센서 라인에 관하여 pdf로 다운 받으세요

하이라이트

  • Robust metal housing for harsh usage conditions
  • Dovetail design for fast installation
  • Mechanically compatible with the industry standard a true alternative to the optical sensor
  • Automatic synchronisation for simultaneous operation of up to ten sensors in close quarters
  • UL Listed to Canadian and US safety standards

Basics

  • 2 anti-valent switching outputs in pnp or npn variant
  • microsonic Teach-in using a button
  • 0.1 mm resolution
  • Temperature compensation
  • 10–30 V operating voltage
  • LinkControl for configuration of sensors from a PC

특성

견고한 메탈 하우징

ucs 센서의 견고한 메탈 하우징은 광학 센서의 산업 표준을 가지고 기계적으로 호환이 가능합니다.

회전하는 원형 커넥터

회전하는 원형 커넥터는 마운팅 위치의 유연한 선택을 가능케 하고 유연한 배선 역시 가능합니다.

ucs 센서

are available with 2 anti-valent pnp or npn switching outputs.

티치인 버튼

센서 상단부의 티치-인 버튼은 원하는 검출 거리와 동작 모드에 대하여 쉽게 설정 가능하도록 고려하고 있습니다.

듀얼 LED

듀얼LED는 2개의 안티멜런트 스위칭 아웃풋의 상태를 표시하여 줍니다.

ucs 센서

ucs 센서들은 3가지 동작 모드를 가지고 있습니다.

  • 단일 검출 포인트
  • 윈도우 모드
  • 2가지의 반향 베리어

안티벨런트 스위칭 출력은

안티벨런트 스위칭 아웃풋은 센서에 대하여 원하는 거리(1)에 있어 검출할 수 있는 물체의 위치에 의하여 설정되고 버튼을 누름으로써 설정할 수 있습니다. 3초동안 한번 정도 누르고 1 초 동안 준비합니다. 윈도우 모드 혹은 투-웨이 반향 베리어 모드는 동일하고 단순하게 설정할 수 있습니다.

Teach-in of a switching point

A two-way reflective barrier

can be set up with the help of a permanently mounted reflector by mounting the ucs sensor and the reflector, then pressing the button for approx. 3 seconds and then pressing it once more for approx. 10 seconds. Now, the two-way reflective barrier has been set.

Teach-in of a two-way reflective barrier

Set a window

by initially positioning the object to be detected on the sensor-close window limit (1), pressing the button for approx. 3 seconds, shifting the object to the sensor-distant window limit (2) and pressing the button once more for approx. 1 second. Ready.

Teach-in of a window with two switching points

Up to ten sensors

can be synchronised with one another. To do this, all the sensors are electrically connected on pin 5 on the M12 circular connector.

Synchronisation using pin 5

If more than 10 sensors must be synchronised, this can be carried out with the SyncBox1, which is available as an accessory.

LinkControl

optionally permits the extensive parameterisation of ucs sensors. The LCA-2 LinkControl adapter, which is available as an accessory, can be used to connect ucs sensors to the PC.

Sensor connected to the PC via LCA-2 for programming
