Agricultural technology: Drop height monitoring

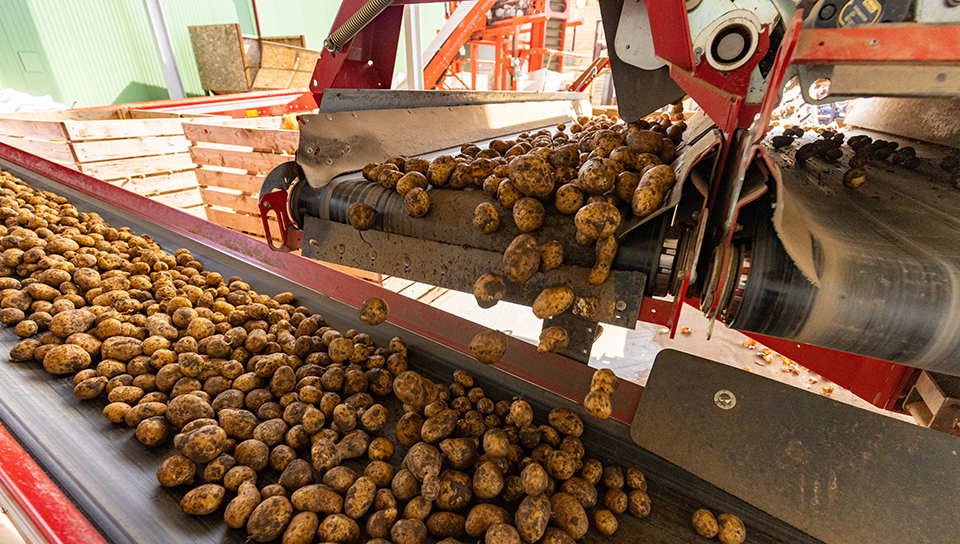

mic-130/IU/M measures the distance between the conveyor belt and the stacked potatoes. To ensure that the potatoes are stored in the potato bunker from a low drop height, the control system regulates the elevator according to the distance values.

Ultrasonic sensor used: mic-130/IU/M

• Measuring range: 200 - 2,000 mm
• Housing: M30 housing and M12 circular connector in robust metal design
• Output stage: analogue output 4-20 mA and 0-10 V
• Special feature: Cable outlet upon request
• Area of application: in harsh agricultural environments

mic-130/IU/M

Agricultural technology: fill level control in the loading bunker

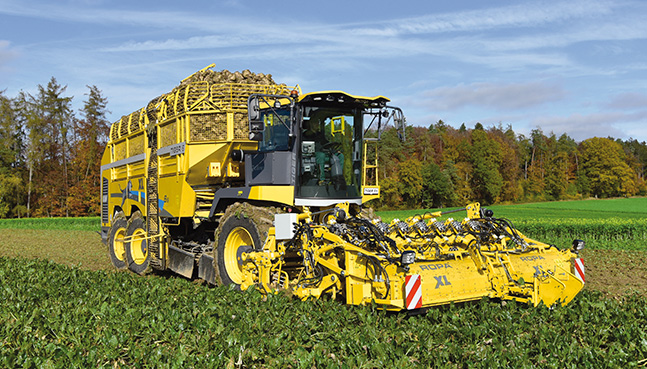

lcs+340/IU continuously measures the fill level in the loading bunker of the beet harvester. The aim is to avoid overfilling the bunker in order to prevent an interruption to the harvest.

Ultrasonic sensor used: lcs+340/IU

• Measuring range: 350 - 5000 mm
• Housing: Compact cubic housing
• Output stage: Analogue output 4-20 mA and 0-10 V
• Area of application: In harsh agricultural environments

lcs+340/IU

Agricultural technology: Height adjustment of the field sprayer

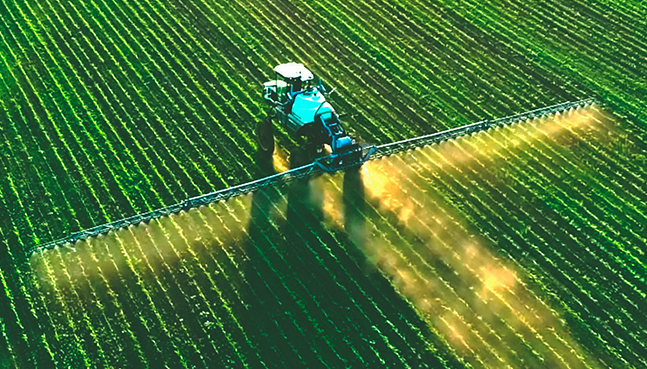

Field sprayer booms can have a working width of up to 42 m. Several wms-340/RT ultrasonic sensors are mounted on these booms. The sensors measure the distance between the boom and the crop. During driving, the control unit uses the measured distance values to compensate for uneven ground or different plant heights. This allows pesticides or fertilizers to be distributed evenly across the field.

Ultrasonic sensor used: wms-340/RT

• Measuring range: 350 - 5,000 mm
• Housing: M30 housing and M12 round connector in robust metal design
• Mode of operation: Sensor for evaluation units
• Special feature: Cable outlet and SEAL connector on request
• Area of application: in harsh agricultural environments

wms-340/RT

Agricultural technology: Guidance

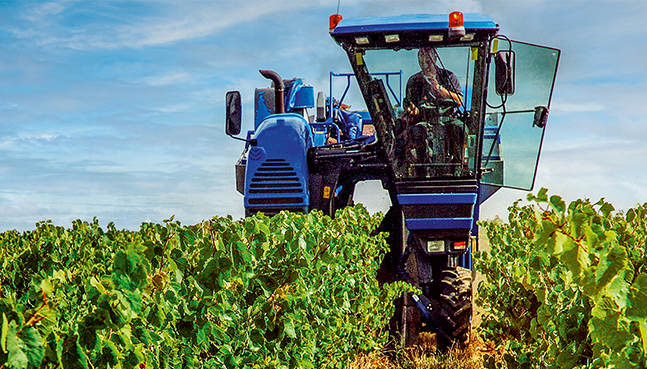

The two wms-130/RT ultrasonic sensors measure the lateral distance between the grape harvester and the vines. The control system adjusts the track based on this information. This ensures that the vines are passed through evenly during harvesting.

Ultrasonic sensor used: wms-130/RT

• Measuring range: 200 - 2,000 mm
• Housing: M30 housing and M12 round connector in robust metal design
• Mode of operation: Sensor for evaluation units
• Special feature: Cable outlet on request, stainless steel version
• Advantage: Resistant to dust and dirt

wms-130/RT

Agricultural technology: plough guidance

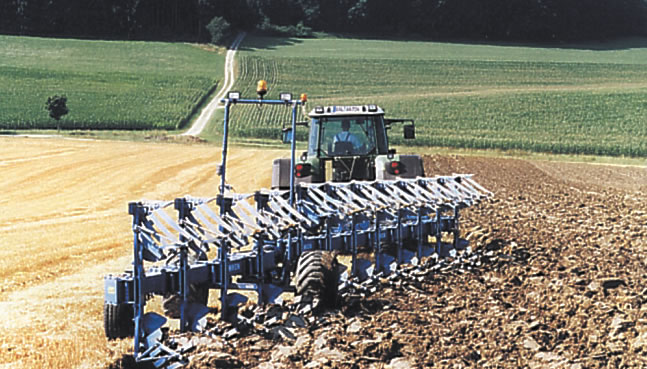

mic-130/IU/M supplies the control signals for steering a plough automatically.

Ultrasonic sensor used: mic-130/IU/M

• Measuring range: 200 - 2000 mm
• Housing: M30 housing and M12 circular connector in robust metal design
• Output stage: analogue output 4-20 mA and 0-10 V
• Special feature: Cable outlet and SEAL connector on request
• Area of application: in harsh agricultural environments

mic-130/IU/M

Battery industry: single-layer control

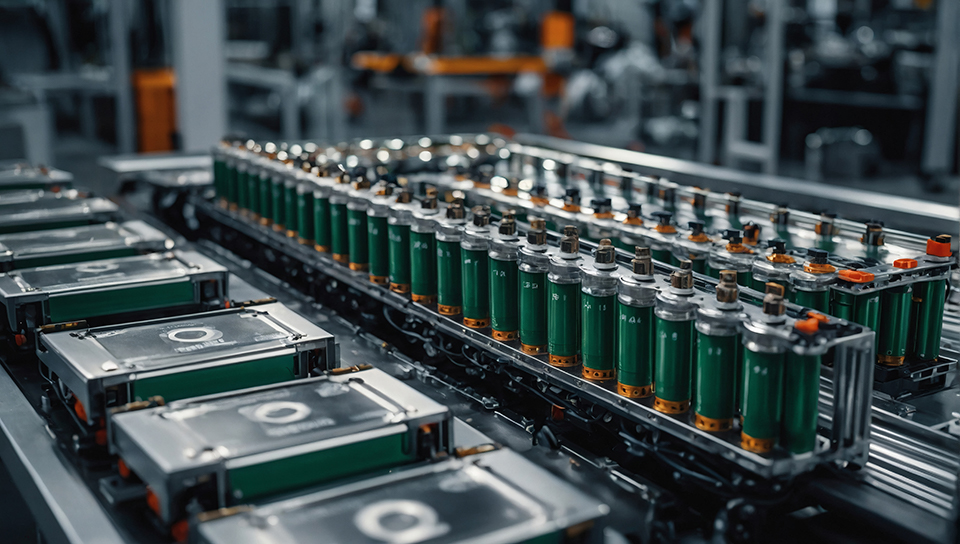

When manufacturing lithium-ion batteries, it is crucial that the electrode foils, anode, cathode and, if necessary, a separator foil, are always stacked alternately. The anode typically consists of graphite, while the cathode is made of lithium metal oxides. A gripper alternately picks up the cathode and anode and joins them together to form a stack or battery pack.

The ultrasonic double-sheet control dbk+4 on the gripper ensures that only one layer of foils is gripped at a time. The sensor detects without contact whether there is no layer present, a single layer is present or a double layer or several electrode foils are stuck together. In the event of an error message or incorrect stacking, the stacking process is interrupted and the production process is corrected. Error-free stacking helps to ensure that high-quality battery packs are produced. The non-contact single-layer control also protects the sensitive electrode foils.

Double-sheet control used: dbk+4

• Working range: Thin electrode foils
• Mounting distance receiver and emitter: 20 – 60 mm
• Output stage: Double sheet and missing sheet output
• Special feature: No Teach-in required
• Area of application: Contactless detection of single layers, reliable control of double layers

dbk+4

Printing industry: double sheet control in offset printing

dbk+4/3CDD/M18 E+S monitors the incoming sheets at the feeder of a sheet-fed printing press. Two or more superimposed sheets must be detected to avoid an unwanted paper jam at the printing press.

Double sheet detector used: dbk+4/3CDD/M18 E+S

• Working range: Paper grammages from 20 g/m2 to 2,000 g/m2
• Housing: Transmitter and receiver in M18 housing with PUR cable
• Output stage: Double sheet and missing sheet output
• Response delay: <500 µs in trigger mode, 2.5 ms in free-run mode
• Special feature: 4 package options
• Application:  For double sheet detection (no Teach-in required)

dbk+4/3CDD/M18 E+S

Printing industry: double sheet detection at the copier

dbk+4/M12/3CDD/M18 E+S monitors the sheets fed into the original feeder of a high-performance copier. To avoid an unwanted paper jam, two or more overlapping sheets must be recognised by the sensor.

Double sheet control used: dbk+4/M12/3CDD/M18 E+S

• Working range: Papers with grammages from 20 g/m2 to 2,000 g/m2
• Housing: Transmitter and receiver in M12 housing with PUR cable
• Output stage: Double sheet and missing sheet output
• Response delay: <500 µs in trigger mode, 2.5 ms in free-run mode
• Special feature: outsourced ultrasonic transducer M12 for confined installation space
• Area of application: For the detection of double sheets (no Teach-in required)

dbk+4/M12/3CDD/M18 E+S

Plastics industry: Diameter control

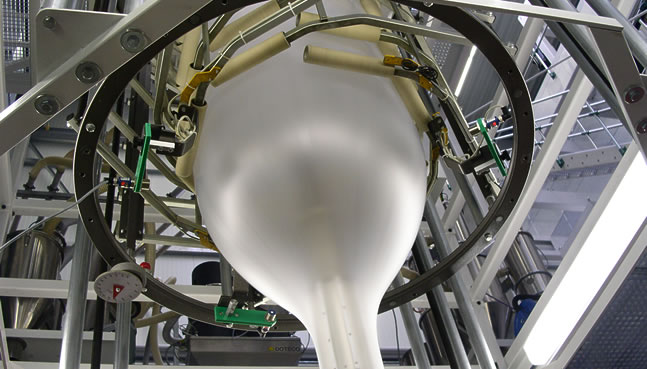

Three mic+130/IU/TC control the film bubble on a blown film extruder for uniform film production.

Three ultrasonic sensors used: mic+130/IU/TC/

• Measuring range: 200 - 2,000 mm
• Housing: M30 housing and M12 round connector
• Output stage: Analog output 4-20 mA and 0-10 V
• Special feature: Digital display with direct reading in mm/cm or %
• Application: Continuous diameter measurement of transparent or colored film

mic+130/IU/TC

Food industry: Label detection

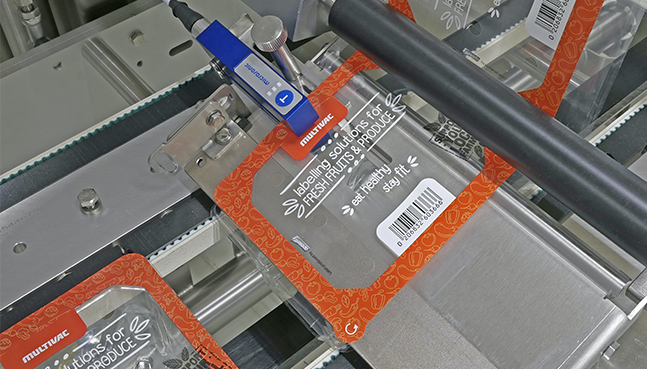

In a packaging machine, plastic trays are sealed with a self-adhesive film. The esf-1/CDF/A label sensor is mounted close to the dispensing edge. It reliably detects the transparent films with changing colours and reports a missing sealing film in the packaging process.

Used ultrasonic label sensor: esf-1/CDF/A

• Short response delay: <300 µs
• Housing: Robust fork housing with compact dimensions
• Output stages: 2 switching outputs for label detection and web break monitoring
• Special features: parameter management for various labels via IO-Link
• Area of application: Transparent label detection in packaging machines

esf-1/CDF/A

Food industry: Volumetric flow measurement

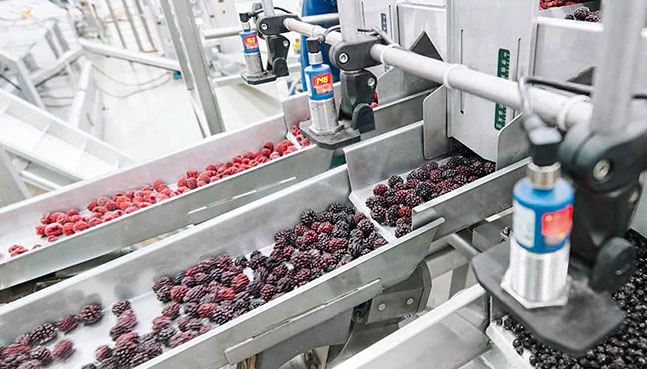

mic+130/IU/TC regulates the volume flow on an automatic scale for food packaging. This ensures uniform filling of the various berries in a bag.

Ultrasonic sensors used: mic+130/IU/TC

• Measuring range: 200 - 2,000 mm
• Housing: M30 housing and M12 circular connector
• Output stage: Analogue output 4-20 mA and 0-10 V
• Special feature: Digital display with direct measured value output in mm/cm or %
• Area of application: Reliable and uniform filling of berries

mic+130/IU/TC

Logistics: Height and width measurement

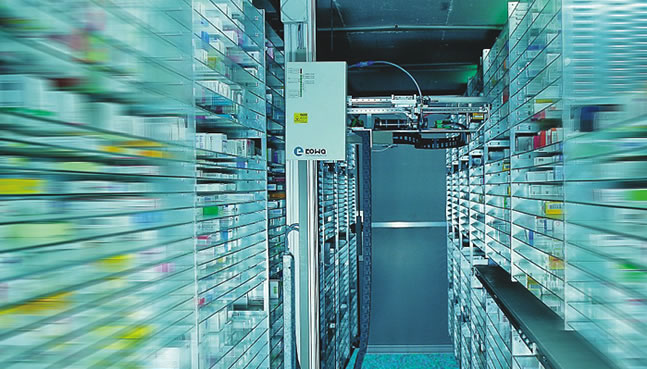

zws-15/CD/QS measures the height and width of medical products for storage in automated pharmacy warehouse.

Ultrasonic sensor used: zws-15/CD/QS

• Measuring range: 20 - 250 mm
• Housing: miniature housing
• Output stage: 1 pnp switching output
• Special feature: Bitstream output
• Area of application: precise measurement with a narrow sound field

zws-15/CD/QS

Pharmaceutical industry: Volume flow measuring

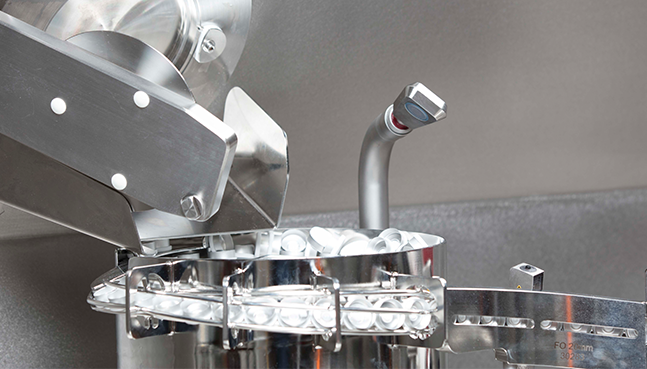

pms-35/CI/A1 continuously measures the fill level of caps on a vibratory conveyor. This ensures that the caps are fed evenly into the packaging process.

Used ultrasonic sensor: pms-35/CI/A1

• Measuring range: 70 - 600 mm
• Housing: Innovative stainless steel housing in hygienic design
• Output stage: Analogue output 4-20 mA
• Special features: Hygienic Design, ecolab certified, FAD-conformed materials
• Area of application: Reliable detection in pharmaceutical application

pms-35/CI/A1

Wind energy: Level measurement in lubricant tanks of wind turbines

The reliability of wind turbines is crucial for energy production. The moving parts of wind turbines have several mechanical bearings, the lubrication of which makes an important contribution to trouble-free operation. With the cube-35/FFIU, the filling level in the lubricant tanks is continuously monitored so that there is always sufficient lubricant for long-term operation. In addition, the agitator in the lubricant tanks is specifically masked by the ultrasonic sensor with the new interference echo suppression function.

Ultrasonic sensor used: cube-35/FFIU

• Measuring range: 65 - 600 mm
• Housing: Small cuboidal design with QuickLock mounting bracket
• Output stage: 1 Push-Pull switching output and 1 analogue output, 2nd output switchable
• Special feature: Interference echo suppression

cube-35/FFIU

Mobile machines: Level control in stone crushers and screening plants

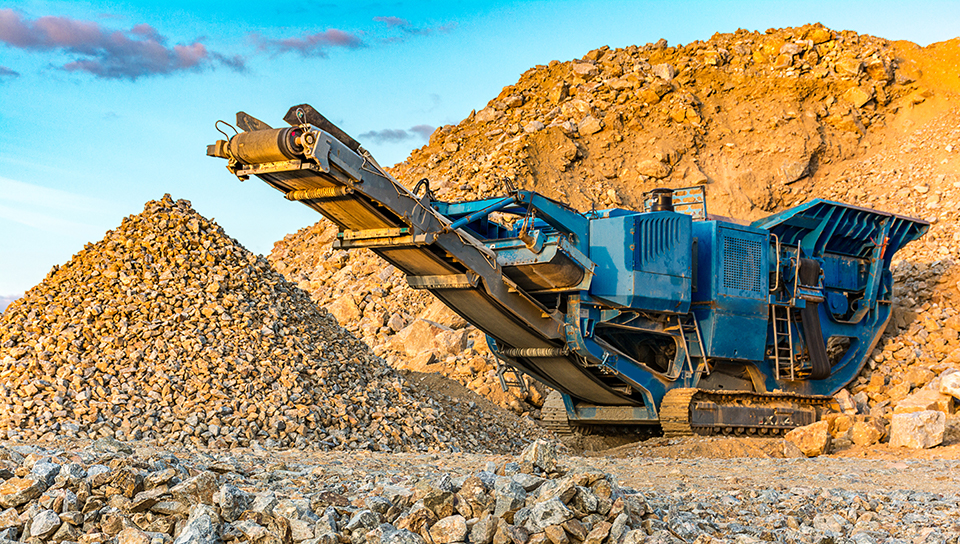

Mobile rock crushers are used for the extraction of rock. Rock is crushed in the stone crushers or crushing plants. The rock is fed into the crushing hopper and crushed until the rock falls out through the gap. The mic-130/IU/M continuously measures the filling level in the crushing hopper of the rock crusher to ensure that the rock does not jam in the feed. The aim is to prevent the hopper from becoming blocked.

Ultrasonic sensor used: mic-130/IU/M

• Measuring range: 200 – 2,000 mm
• Housing: M30 housing and M12 circular connector in metal design
• Output stage: Analogue output 4–20 mA and 0–10 V
• Area of Application: For harsh usage conditions

mic-130/IU/M

Packaging industry: precise web edge control

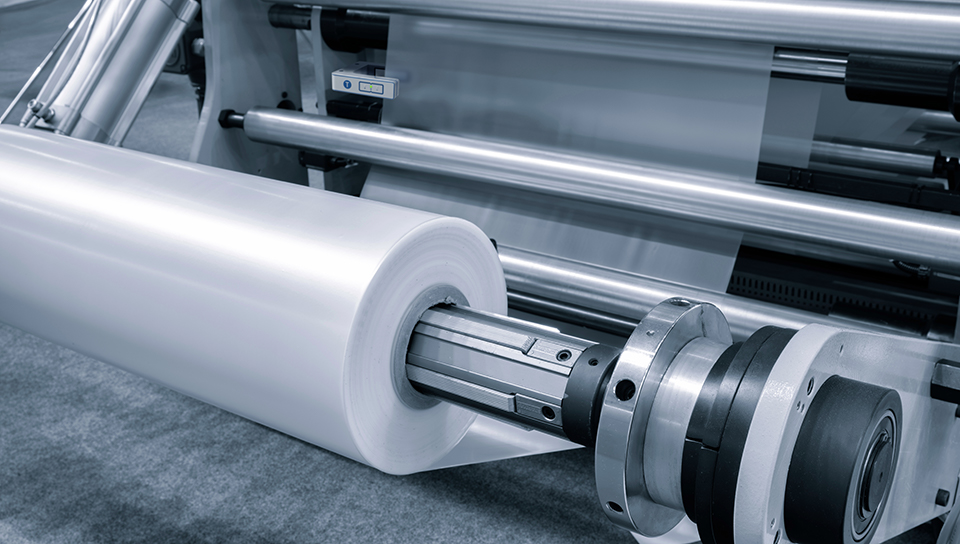

In a packaging machine, the bks+6/FIU/A web edge sensor detects the material edge of various packaging films, papers or other sound-impermeable materials. The material is unwound from a roll and fed through the processing machine. The bks+6/FIU/A uses ultrasound to detect the position of the material edge, so that the control system can adjust the web path during production based on the analogue value. As a result, the material web always remains precisely on track, resulting in higher product quality and lower reject rates.

Used ultrasonic web edge sensor: bks+6/FIU/A

• Working range: ≥ 40 mm (±20 mm)
• Housing: Robust fork housing with compact dimensions
• Output stages: 1 Push-Pull switching output and analogue output
• Special features: IO-Link interface
• Area of application: Precise web edge control on packaging machines

bks+6/FIU/A
